Emerson AMS A6500-UM Universal Monitor Module | 2-Channel Machinery Protection

Description

1. Product Overview

The Emerson A6500-UM is a high-performance Universal Monitor Module for the AMS 6500 ATR (Advanced Transient Response) Protection System. Designed for critical machinery, this 2-channel module is truly “universal”—it can be configured via software to monitor various parameters including shaft vibration, casing vibration, shaft position (thrust), eccentricity, and speed.

The A6500-UM is compliant with API 670 standards, providing continuous online monitoring and automatic shutdown protection. Its flexible architecture allows plant operators to standardize on a single spare part for multiple monitoring functions, significantly reducing inventory costs while maintaining the highest level of asset protection for turbines, compressors, and pumps.

Key Monitoring Functions:

• Vibration Monitoring: Relative shaft vibration and absolute casing vibration.
• Position Monitoring: Axial thrust position and differential expansion.
• Specialized Measurements: Eccentricity, rod drop, and speed/keyphasor inputs.
• API 670 Compliant: Ensures industry-standard safety and reliability for critical machine trains.

2. Data Sheet

3. Procurement Process

1. Technical Match: We verify the A6500-UM hardware revision and firmware to ensure compatibility with your AMS 6500 rack.
2. Formal Quotation: Receive a detailed quote including pricing, stock status, and global express shipping options.
3. Order Confirmation: Finalizing quantity and any required certifications (e.g., Certificate of Conformance).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for secure transaction management.
5. Secure Payment: Processing via T/T (Bank Wire Transfer).
6. Inventory Allocation: Allocation of 100% original, brand-new modules from our specialized industrial stock.
7. Quality Inspection: Verification of factory seal, serial number, and physical integrity of the front-panel LEDs and handle.
8. Global Distribution: Fast worldwide shipping via DHL, FedEx, or UPS with shock-proof, anti-static packaging.

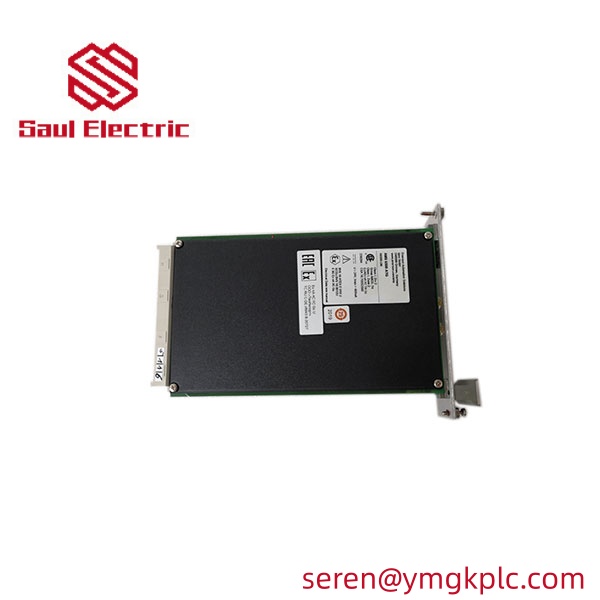

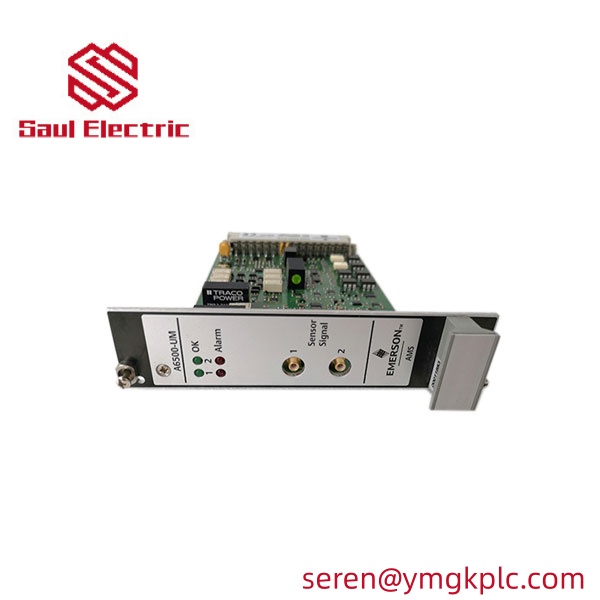

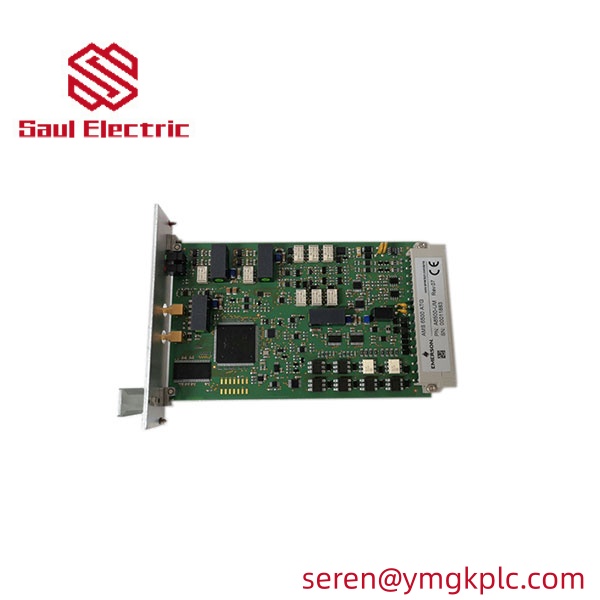

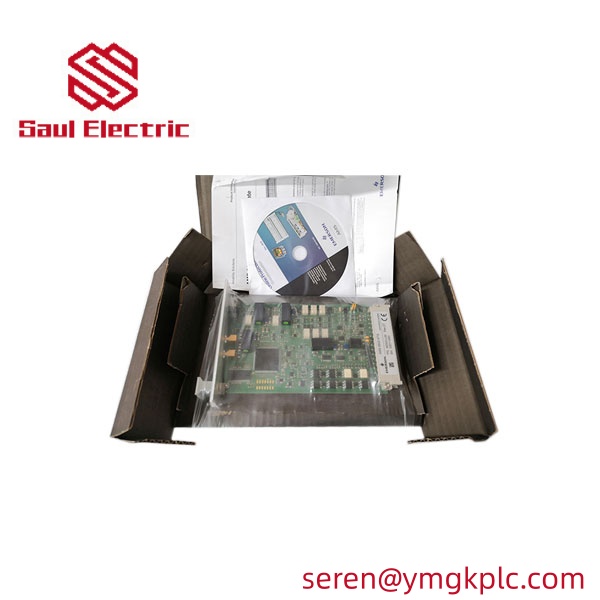

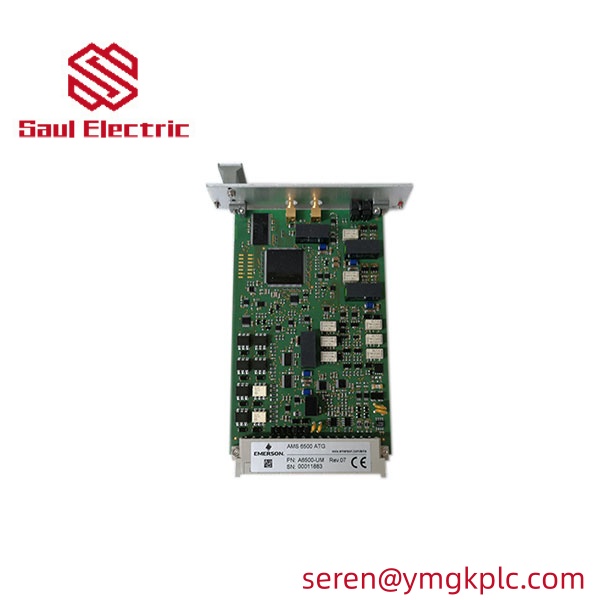

4. Products Showcase (Photos & Video)

5. Related Models

• Emerson A6500-RC (Relay Card Module)
• Emerson A6500-CC (Com Card / Gateway Module)
• Emerson A6370D (Legacy 6300 Series Monitors)
• Emerson A6500-SR (System Rack)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full replacement or repair coverage for 1 year from the date of purchase.
• 100% Authenticity Guaranteed: We supply only genuine Emerson AMS parts; no refurbished or third-party units.
• Global Logistics Support: Professional handling of export documentation for smooth delivery to industrial sites in the UAE, Kazakhstan, and worldwide.

7. FAQ

Q: Why is it called a “Universal” monitor?

Unlike older systems where you needed different modules for vibration and thrust, the A6500-UM can be changed from a vibration monitor to a position monitor simply by changing the software configuration. This makes it a versatile “one-size-fits-all” solution for the rack.

Q: Can the A6500-UM replace an older A6110 module?

The A6500 series is the successor to the A6300/A6110 series. While they perform similar functions, they require different racks. If you are upgrading from A6110, you will likely need to upgrade the entire rack to the AMS 6500 platform.

Q: Is the configuration stored in the module?

The configuration is typically stored in the rack’s backplane or a configuration module. If you replace an A6500-UM, the system can often automatically upload the correct settings to the new module, making maintenance much faster.
