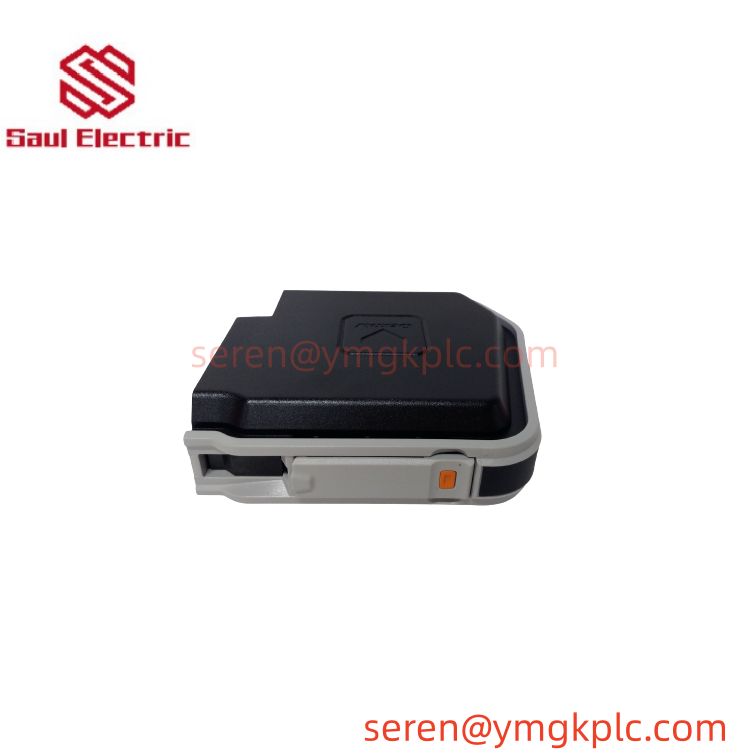

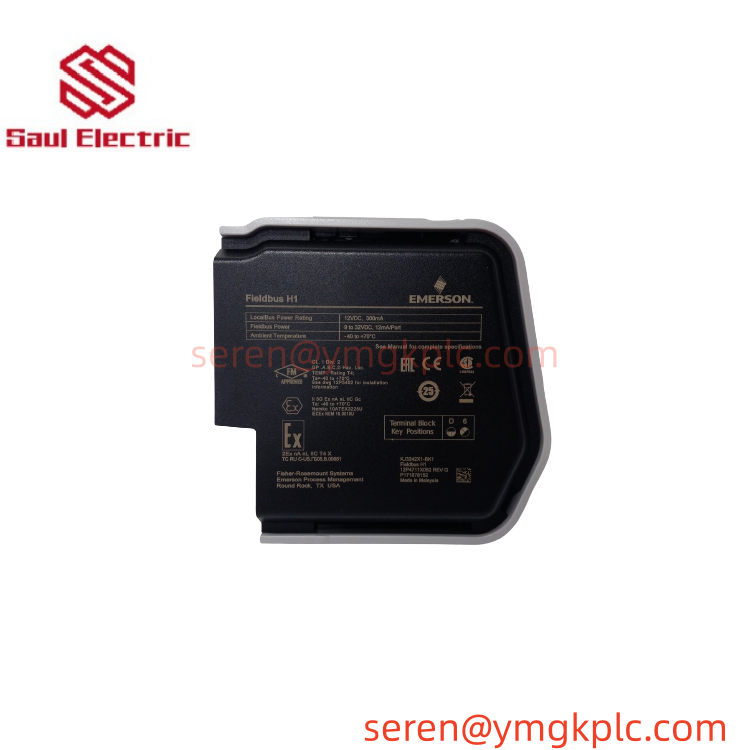

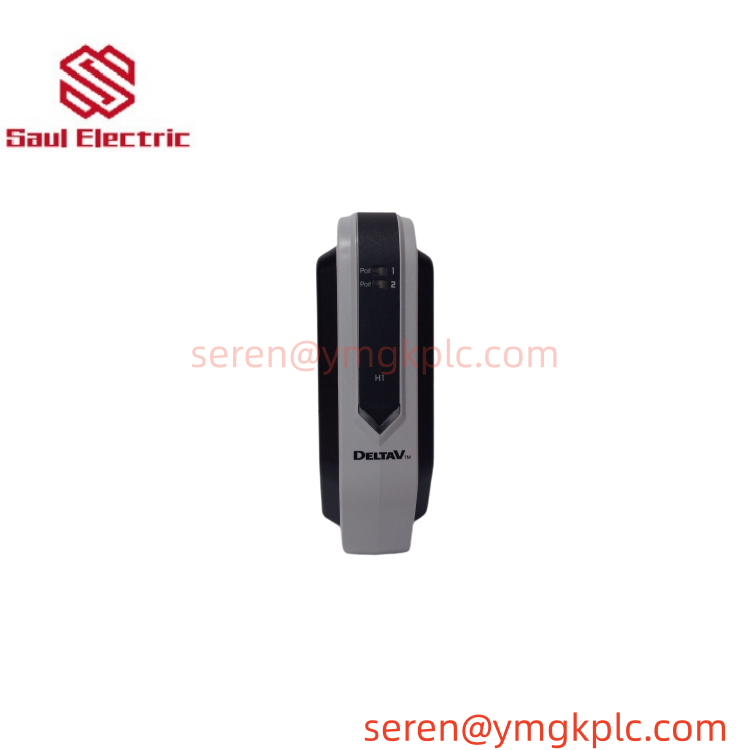

Emerson KJ3242X1-BK1 | Direct Replacement Foundation Fieldbus H1 Communication Card

Emerson KJ3242X1-BK1 | Direct Replacement Foundation Fieldbus H1 Communication Card

  • Model: KJ3242X1-BK1, Alternate Part: 12P4711X052
  • Brand: Emerson Automation Solutions
  • Series: DeltaV S-Series
  • Core Function: Creates bidirectional communication between DeltaV controllers and FOUNDATION Fieldbus H1 field transmitters and valve positioners
  • Category: Fieldbus H1 Communication Interface Module
  • Key Specs: Dual FF H1 ports, 93.75 kbps bus speed, Zone 2 hazardous location certification
  • Availability & Condition: New Surplus, In Stock, Ready for immediate dispatch
Get a Quote
Category: Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

3. Key Technical Specifications

  • Supported Protocol: FOUNDATION Fieldbus H1 (IEC 61158-2)
  • Port Count: 2 independent FF H1 field ports
  • Bus Communication Rate: Fixed 93.75 kbps
  • Local Bus Power: 12 VDC, 300 mA
  • Fieldbus Power Range: 9–32 VDC, 12 mA per port
  • Operating Temperature: -40 °C to +70 °C, non-condensing
  • Humidity Tolerance: 5%–95% RH
  • Shock Rating: 10g half-sine wave, 11 ms duration
  • Vibration Rating: 0.7g from 13.2 Hz to 150 Hz
  • Hazardous Approvals: ATEX, IECEx, FM Class I Div 2 / Zone 2
  • Terminal Key Code: D6
  • Form Factor: Standard DeltaV S-Series backplane mount

4. Product Introduction

When a process unit loses FF H1 bus connectivity and critical flow or pressure readings drop from the control display, faulty interface modules often trigger unplanned production hold. The KJ3242X1-BK1 acts as the dedicated bridge between DeltaV S-Series backplane hardware and FOUNDATION Fieldbus H1 field devices.Unlike generic communication adapters, this unit carries factory testing for hazardous classification compliance. Honestly, validated zone ratings eliminate extra documentation delays during site safety inspections at chemical and refinery facilities.



5. QC, Procurement & Logistics SOP

  1. Inbound Verification: Cross-check both KJ3242X1-BK1 and 12P4711X052 part markings. Inspect PCB for corrosion, connector wear, and evidence of prior field installation. Validate OEM labeling against global procurement portal records.
  2. Live Rig Testing: Complete backplane recognition testing, FF H1 bus load simulation, and bidirectional data polling to confirm both ports operate without packet loss.
  3. QA & Anti-Static Packaging: Seal module inside shielding packaging, secure rigid foam protection to prevent connector damage; attach signed test report with each shipment.
  4. Global Logistics & Export Compliance: Assign accurate HS classification for DCS communication spare parts. Outer carton packaging reinforced for air or sea transit —though customs clearance in the EU might add 2 days to transit timelines.



6. Technical Pitfalls & Integration Warnings

  1. Firmware Rev Mismatch: Older DeltaV controller software builds lack full hardware definition files for this module. A technician loading outdated configuration files will see bus port faults after installation, halting field device commissioning.
  2. Backplane Slot Configuration errors: Improper slot assignment within DeltaV Explorer creates bus contention. Copying slot settings from older S-Series non-fieldbus cards will disable FF H1 scanning.
  3. Wiring/Terminal incompatibility: FF H1 bus wiring must follow polarity rules. Reversed pair connections will prevent device discovery even if the module powers on normally.
  4. ESD destruction during unboxing: Operators handling the circuit board without grounded protection can damage bus transceiver chips. Degraded performance may only surface under high plant electrical noise weeks after installation.

7. Frequently Asked Questions (FAQ)

Q: What global lead times apply if on-hand inventory is exhausted?A: Standard sourcing lead time runs 5–8 weeks. Expedited sourcing can shorten delivery to 12–18 working days, subject to upstream stock availability.Q: Can I remove or insert this module while the DeltaV rack stays energized?A: Hot swap is supported for S-Series hardware. Always isolate the associated FF H1 field trunk before replacement to avoid transient spikes on connected field instruments.Q: Does KJ3242X1-BK1 work with older M-Series DeltaV hardware racks?A: No. This interface is built exclusively for S-Series backplanes. It cannot physically install or communicate within M-Series chassis.Q: What shipping options exist for cross-border industrial spare shipments?A: Air express for urgent shutdown work, standard air freight for scheduled turnarounds, and sea freight for bulk spare part orders. Complete export documentation accompanies every shipment.Q: Is this module backward compatible with earlier KJ3242X1-BA1 hardware revisions?A: Basic communication functions operate, but full diagnostic features and hazardous location documentation differ between revisions. Match the exact part number shown on site drawings to avoid audit complications.Q: What warranty coverage comes with New Surplus stock?A: Each unit carries a 12-month limited warranty covering verified test failures. Warranty does not cover damage caused by field wiring faults, lightning surges, or improper ESD handling.Q: Can each FF H1 port power multiple field transmitters simultaneously?A: The module provides bus signaling power. External power conditioners are required for trunks with high device counts to avoid voltage drop across long field cable runs.
