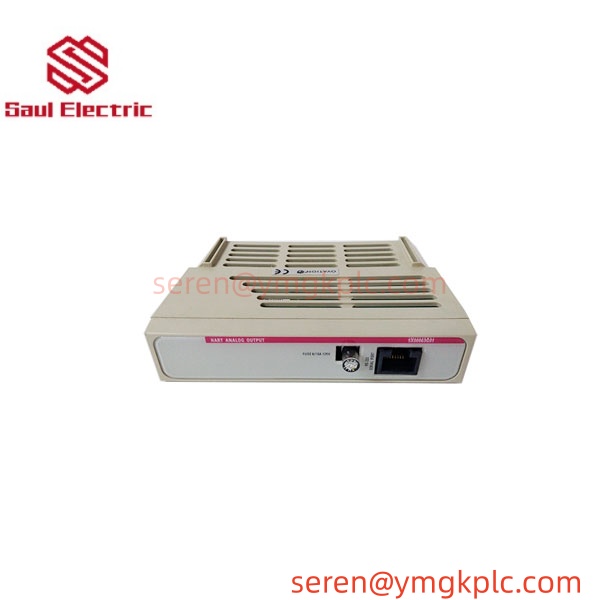

EMERSON 5X00063G01 Ovation HART Analog Output Personality Module

EMERSON 5X00063G01 Ovation HART Analog Output Personality Module

Original price was: $999.00.Current price is: $888.00.

Model： 5X00063G01

Brand： EMERSON

Series： Ovation DCS Series

Core Function： HART‑capable analog output personality module, works paired with 5X00062G01 electronic module, converts digital control commands into 4‑20mA field signals for smart HART transmitters and valve positioners

Product Type： I/O Personality Module

Key Specifications： 8‑channel analog output, HART protocol support, 24VDC loop power, per‑channel micro‑fuse protection, field‑to‑logic isolation 1000VAC

End‑of‑life status： Obsolete OEM production, spare stock available

Get a Quote
Category: SKU: 5X00063G01
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Overview

The EMERSON 5X00063G01 is a personality card for Ovation distributed control system, designed to mate with 5X00062G01 electronic module. It delivers 8‑channel 4‑20mA analog output with native HART communication, offering loop power supply and channel‑level fuse protection for smart field instruments. This module transfers DCS digital control orders into standard analog current signals to drive valves, actuators and HART‑compatible field devices, widely deployed in power‑plant and heavy‑process control sites for continuous critical‑loop regulation.

Series

Ovation DCS I/O subsystem, modular‑based distributed control hardware for power generation, chemical and petro‑chemical industries, consisting of base units, electronic modules and personality modules for signal conditioning.

Product Features

  1. 8 independent analog output loops with HART protocol communication support
  2. Per‑channel micro‑fuse protection for field‑loop fault isolation
  3. Provides 24VDC auxiliary loop power for connected field devices
  4. 1000VAC isolation between field side and control logic domain
  5. Designed to cooperate with 5X00062G01 electronic module for full signal processing
  6. Supports hot‑swap maintenance within Ovation rack framework
  7. Built‑in diagnostic reporting via matched electronic module status registers

Product Parameters

Item Parameter
Model 5X00063G01
Module Type Analog Output Personality Module
Matched Electronics Module 5X00062G01
Output Channels 8 channels
Signal Type 4‑20mA, HART protocol compatible
Loop Power Supply 24 VDC
Power Consumption Typical ~6W, Max 7.2W
Channel Protection Individual micro‑fuse per channel
Field‑to‑Logic Isolation 1000 VAC / VDC
Operating Temperature 0℃ ~ +60℃ (follow electronic module spec)
Mounting Installed inside Ovation I/O rack carrier



Product Specifications

  • Physical form: Personality daughter‑card, plug‑in installation paired with electronics module
  • Condition: New surplus / Tested used (stock dependent, please confirm availability)
  • Warranty: 365‑day warranty for supplied units
  • Shipment: In‑stock items ship within 3 working days after payment

Function

Works together with 5X00062G01 electronic module. Converts DCS digital control values into 4‑20mA analog output signals; implements HART data interaction with smart field instruments; supplies loop power for site devices; reports channel fuse failure and loop‑open faults back to DCS controller.

Purpose

Realize accurate analog output control and HART bi‑directional data exchange between Ovation DCS system and on‑site smart actuators, valve positioners and transmitters.

Application Fields

‑ Thermal power generation plant DCS control systems‑ Petrochemical & chemical process control‑ Pulp and paper industrial automation‑ Water‑wastewater treatment process plants‑ Heavy‑industry distributed control retrofit & spare‑part replacement

Image search keyword for reference: EMERSON 5X00063G01 Ovation personality module
