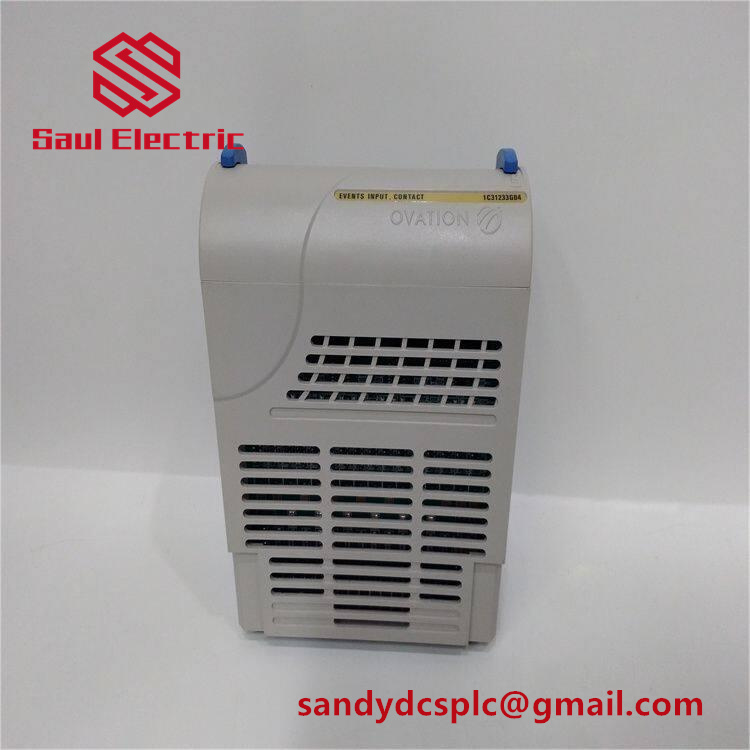

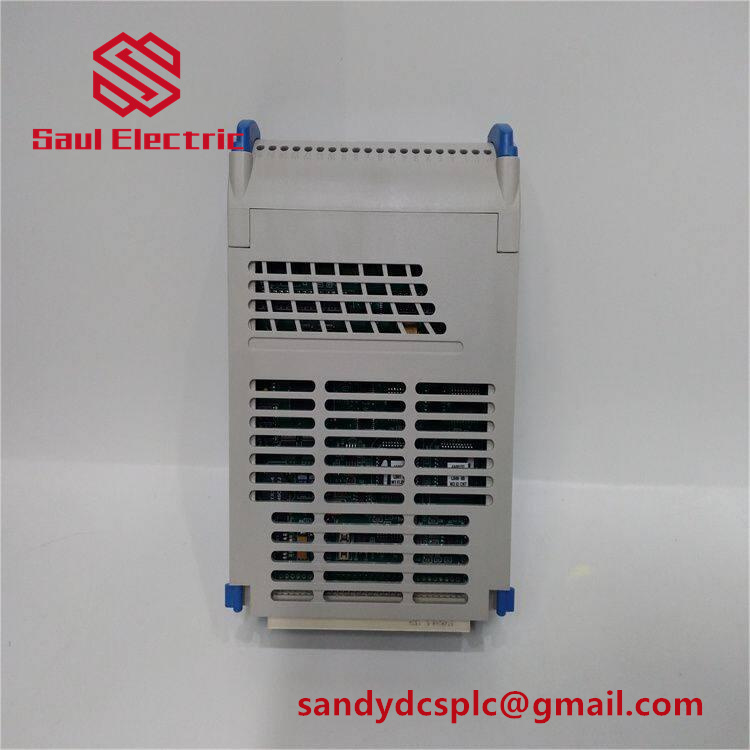

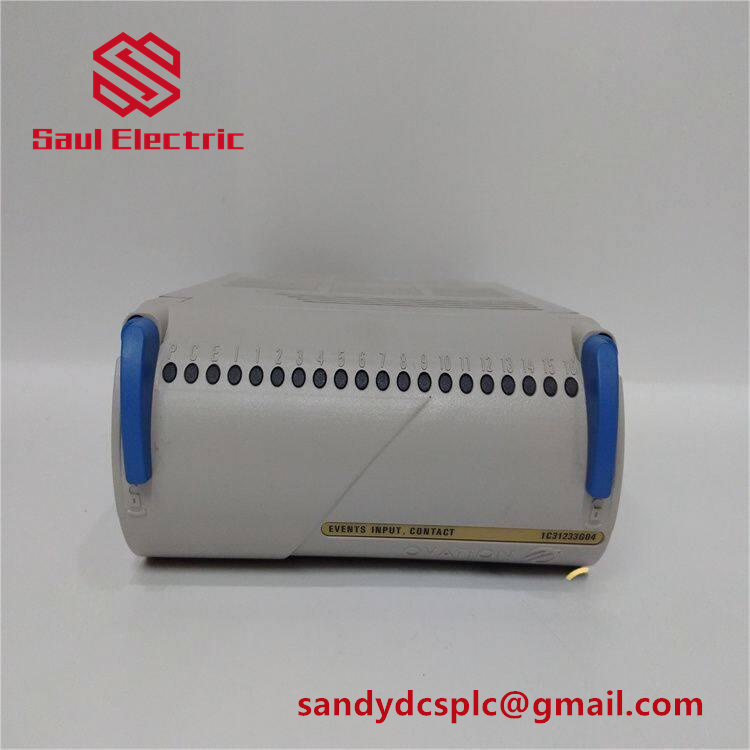

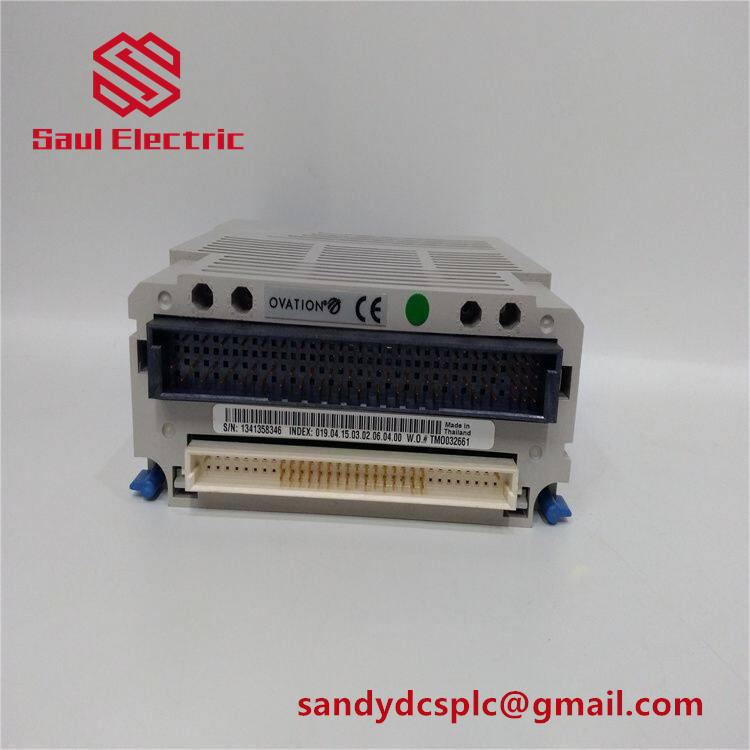

Emerson 1C31233G04 Ovation HART 8-Channel Analog Output Module – Product Description

Name: Emerson 1C31233G04 Ovation HART 8-Channel Analog Output Module /Emerson 1C31233G04 | XIONGBA
SKU: Emerson 1C31233G04

Product Overview

The Emerson 1C31233G04 is a high-performance 8-channel analog output module designed for the Ovation Distributed Control System (DCS), specifically engineered to provide precise control and communication capabilities in industrial automation environments. This versatile module serves as a critical interface between the control system and HART-compatible field devices, enabling sophisticated analog signal output with digital communication overlay. The 1C31233G04 features eight independently configurable channels that can output various signal types including 4-20mA, 0-10V, and scaled bipolar signals, offering exceptional flexibility for diverse application requirements. With its robust industrial design and advanced functionality, this module represents Emerson’s commitment to delivering reliable automation solutions for demanding process industries.

As an integral component of the Ovation control platform, the 1C31233G04 facilitates seamless integration with smart field instrumentation through HART protocol support, allowing bidirectional digital communication superimposed on standard analog signals. This capability enables enhanced device configuration, calibration, and diagnostic functions without requiring separate communication interfaces. The module’s hot-swappable design ensures that maintenance and replacement can be performed without system shutdown, significantly reducing downtime and operational disruptions. With a compact form factor and comprehensive diagnostic capabilities, the Emerson 1C31233G04 delivers the reliability and precision necessary for critical process control applications across power generation, water treatment, manufacturing, and other industrial sectors.

Technical Specifications

Parameter Name	Parameter Value
Product Model	1C31233G04
Manufacturer	Emerson
Product Type	8-Channel HART Analog Output Module
Input Voltage	24V DC
Power Consumption	12W
Number of Channels	8
Output Types	4-20mA, 0-10V, Scaled Bipolar
Accuracy	±0.1% of full scale
Resolution	16 bits
Update Rate	250ms
Operating Temperature	-40°C to 80°C
Storage Temperature	-40°C to 85°C
Humidity Range	0 to 95% Non-condensing
Protection Level	IP66
Communication Protocol	HART (Highway Addressable Remote Transducer)

Key Features and Advantages

The Emerson 1C31233G04 offers several distinctive features that provide significant operational advantages in industrial control applications. The module’s eight independent analog output channels each support HART communication protocol, enabling simultaneous analog control and digital device management for connected field instruments. This dual capability eliminates the need for separate communication hardware while providing comprehensive device information and diagnostic data directly to the control system. The high resolution of 16 bits ensures exceptional output signal accuracy and stability, which is particularly valuable for precision control applications requiring fine adjustment capabilities. Each channel can be individually configured for different signal types and ranges, providing unparalleled flexibility to match specific application requirements without hardware modifications.

Advanced diagnostic capabilities represent another significant advantage of the 1C31233G04. The module continuously monitors its own health and performance while providing detailed status information for each channel. This proactive monitoring enables early detection of potential issues, allowing maintenance to be scheduled during planned outages rather than resulting in unplanned downtime. The module’s robust construction with IP66 protection ensures reliable operation in harsh industrial environments where dust, moisture, and electrical noise are concerns. The hot-swappable design of the 1C31233G04 is particularly valuable for continuous process industries, as it allows for module replacement without system shutdown, significantly reducing maintenance impact on operations. These features combine to deliver enhanced system availability, reduced total cost of ownership, and improved operational efficiency for facilities utilizing the Emerson Ovation control platform.

Application Areas

The Emerson 1C31233G04 finds extensive application across multiple industries where precise analog control and HART communication capabilities are required. In power generation facilities, the module is instrumental in controlling critical process variables such as valve positions, damper controls, and actuator settings through its accurate analog outputs while simultaneously communicating with HART-enabled field devices for configuration and diagnostic purposes. The 1C31233G04 provides the reliability and precision necessary for boiler control systems, turbine management, and auxiliary equipment control in both conventional and renewable energy plants. Its robust design ensures consistent performance even in the electrically noisy environments typical of power generation facilities.

Water and wastewater treatment plants utilize the 1C31233G04 for chemical dosing control, flow regulation, and process optimization applications. The module’s multiple output channels enable control of various actuators and positioners throughout treatment processes, while HART communication allows for remote configuration and monitoring of smart valve positioners and other final control elements. In manufacturing industries, the module provides precise control for complex machinery, production lines, and batch processes where accurate analog signals are essential for quality and consistency. The broad operating temperature range of -40°C to 80°C makes the 1C31233G04 suitable for installation in diverse environments, from climate-controlled control rooms to harsh field conditions encountered in industrial settings. The module’s flexibility and reliability also make it valuable for environmental monitoring systems, building automation, and transportation control applications where precise analog output with device management capabilities is required.
