Product Overview

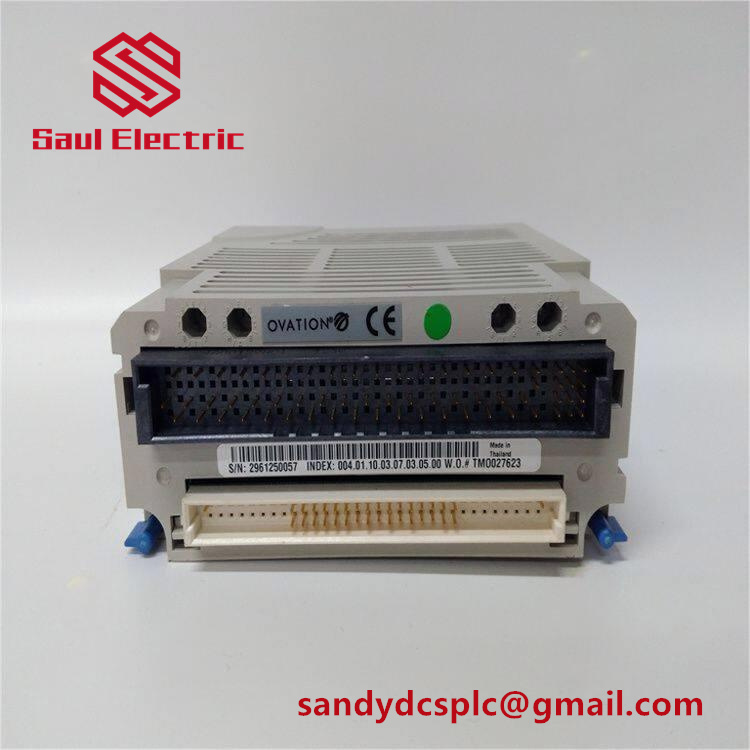

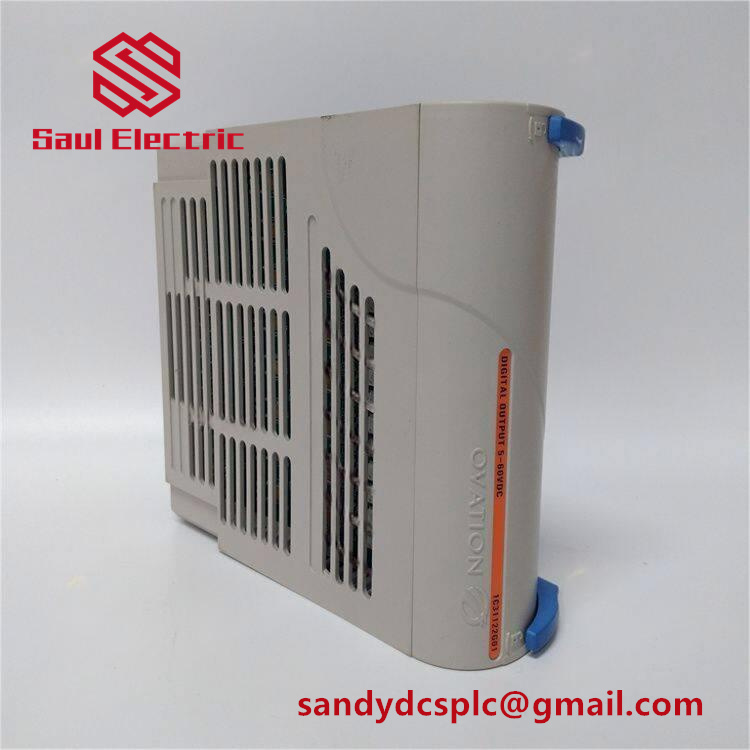

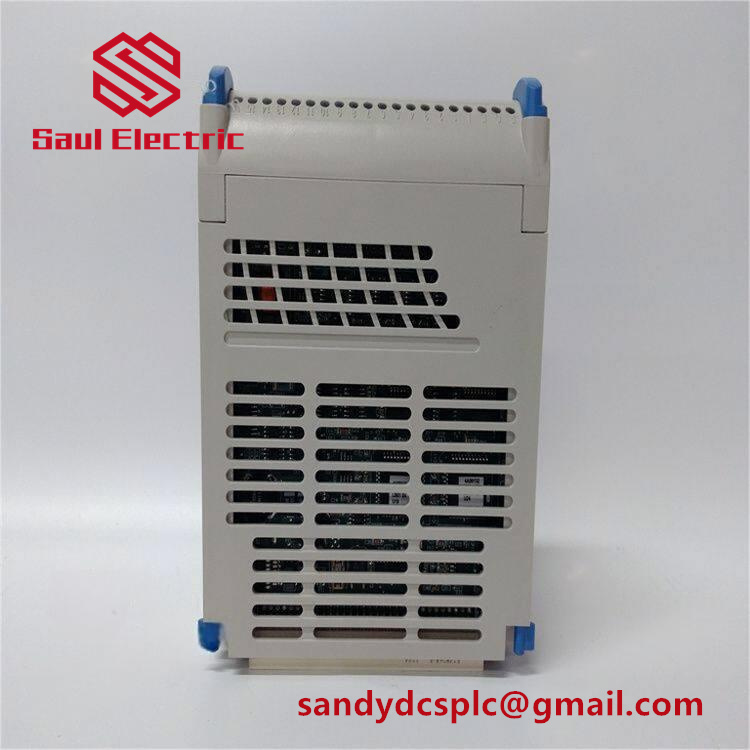

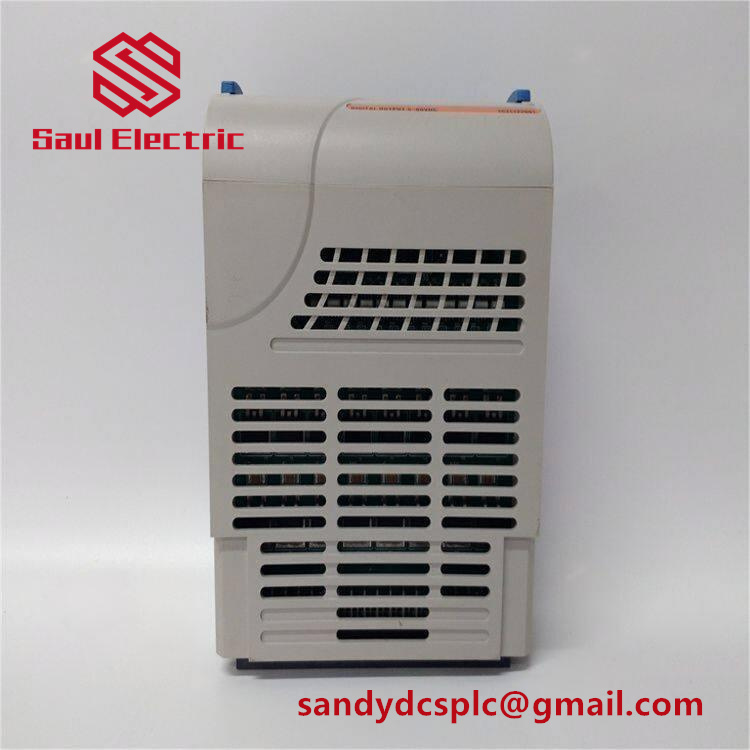

The Emerson 1C31122G01 is a high-performance digital output electronics module designed for Emerson’s Ovation distributed control system (DCS). This 16-channel module provides robust control signals to field devices such as actuators, motor starters, and solenoid valves, enabling precise automation of industrial processes. Operating within a wide voltage range of 5–60 VDC and supporting loads of up to 2A per channel, the Emerson 1C31122G01 leverages solid-state switching technology for rapid response times (under 1 millisecond), ensuring reliable operation in critical applications. Its compact, hot-swappable design allows for easy integration and maintenance without disrupting system operations. Built to withstand harsh environments, the module operates reliably across a temperature range of -40°C to +70°C and features advanced diagnostics for real-time fault detection. The Emerson 1C31122G01 is ideal for power generation, oil and gas, and water treatment industries, where it enhances system scalability and safety while reducing installation costs .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 1C31122G01 |
| Manufacturer | Emerson |
| Product Type | Digital Output Electronics Module |
| Number of Channels | 16 |
| Output Voltage Range | 5–60 VDC |
| Load Current per Channel | Up to 2A |
| Switching Technology | Solid-state |
| Response Time | <1 millisecond |
| Power Supply | 24 VDC (±10%) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% (non-condensing) |
| Weight | 0.15 kg |
| Certifications | SIL2 (IEC 61508), ATEX Zone 2 . |
Main Features and Advantages
The Emerson 1C31122G01 offers high channel density, consolidating 16 digital outputs into a single module to reduce cabinet space by up to 30% compared to lower-density alternatives. Its wide voltage compatibility (5–60 VDC) accommodates diverse industrial devices without additional signal conditioning. The solid-state switching mechanism ensures rapid, wear-free operation, minimizing maintenance needs and enhancing longevity in high-cycle applications. Advanced diagnostic capabilities provide real-time monitoring of channel status, reducing troubleshooting time by 50% and preempting potential failures. The module’s robust construction ensures reliable performance in extreme conditions, including wide temperature variations and high electromagnetic interference environments. Additionally, hot-swap functionality allows for module replacement without system shutdown, critical for continuous process industries. These features make the Emerson 1C31122G01 a versatile and cost-effective solution for modern automation systems .
Application Fields
The Emerson 1C31122G01 is widely used in power plants for turbine control and safety systems, where it manages actuator commands for valve positioning and pump control. In oil and gas applications, it enables precise control of wellhead operations and emergency shutdown systems, ensuring safety and efficiency in upstream and midstream processes. For water and wastewater treatment, the module automates chemical dosing pumps and filter controls, maintaining process stability and compliance with environmental standards. In industrial automation, it integrates with conveyor systems and manufacturing lines to synchronize operations. The Emerson 1C31122G01 also supports energy management systems in smart grids, facilitating load distribution and fault isolation. Its certifications (e.g., SIL2, ATEX) make it suitable for hazardous areas, such as Zone 2 environments in chemical processing .
Related Products
1C31129G03: A complementary I/O module within the same series, often used alongside the 1C31122G01 for expanded system capacity .
SP6412/SP9434: Ovation system communication cards that interface with the 1C31122G01 for data exchange .
SP7411/SP7412: Power supply modules providing stable 24 VDC power to the 1C31122G01 .
5X00058G01: An adaptive control module compatible with Ovation systems, enhancing process optimization capabilities .
1C31116G04: A compact contact input/relay output module for applications requiring mixed I/O configurations .
