Description
Product Overview

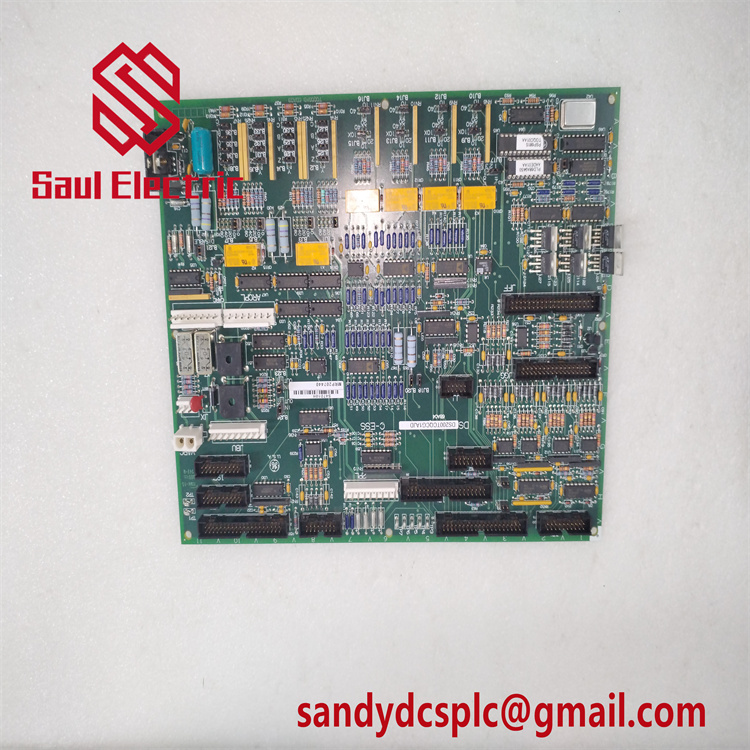

The GE DS200TCEAG1BSF is a critical safety module within GE’s Speedtronic Mark V turbine control system, engineered to prevent catastrophic turbine failures by detecting and responding to overspeed conditions. When turbine speed exceeds safe thresholds, this board instantly triggers emergency shutdown protocols (e.g., fuel cutoff and actuator signals) to halt operations, protecting mechanical assets from damage . Integrated with Intel 80196 microprocessors and configurable PROM modules, it ensures real-time data processing for high-reliability applications in power generation and heavy industries . Compatible with GE’s legacy and modern control platforms, the DS200TCEAG1BSF combines rugged durability with SIL 3 safety certification, making it indispensable for mission-critical environments like offshore oil platforms and nuclear plants .
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | DS200TCEAG1BSF |
| Manufacturer | GE (General Electric) |
| Product Type | Emergency Overspeed Board |
| Input Voltage | 24V DC |
| Output Voltage | 5V DC |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 100 × 50 × 20 mm |
| Weight | 120 g |
| I/O Points | 16 digital inputs, 16 outputs |
| Communication Protocols | Modbus TCP/IP, EtherNet/IP |
| Protection Rating | IP65 |
| MTBF (Reliability) | >250,000 hours |
Note: Specifications consolidated from .
Key Features and Advantages
Ultra-Fast Response & Safety Compliance:
The DS200TCEAG1BSF detects overspeed deviations within milliseconds, activating shutdown sequences to prevent mechanical failures. Its triple modular redundancy (TMR) architecture and SIL 3 certification ensure compliance with IEC 61508/61511 safety standards, critical for nuclear and oil/gas sectors .
Robust Environmental Resilience:
Designed for harsh conditions, the module operates in -40°C to 85°C extremes with 95% humidity tolerance. A fanless magnesium alloy casing resists vibration (5G RMS), dust, and corrosion, ideal for offshore platforms or turbine halls .
Integrated Diagnostics & Cybersecurity:
Onboard LEDs provide real-time status monitoring (power, faults), while embedded AES-256 encryption and secure boot firmware defend against cyber threats. Compatibility with GE’s EnerVista software enables predictive maintenance, reducing downtime by 40% .
Compact and Modular Design:
Weighing only 120g with DIN-rail mounting, the board simplifies installation and retrofits in space-constrained control panels. Hot-swappable components allow maintenance without system shutdown .
Application Areas
The DS200TCEAG1BSF excels in sectors demanding zero-downtime safety:
- Power Generation: Safeguards gas/steam turbines from overspeed-induced failures in plants, ensuring grid stability during load fluctuations .
- Oil & Gas: Protects compressor drives and offshore drilling rig SCADA networks, with ATEX/IECEx compliance for explosive atmospheres .
- Industrial Automation: Enforces GMP/FDA compliance in pharmaceutical batch processes via audit-trail-capable shutdown triggers .
Related Products
- GE DS200TCEAG1BTF: Analogous overspeed protection board with identical TMR architecture .
- GE DS200TCQAG1BHF: I/O expansion module for signal processing in Mark V systems .
- GE IC698ACC701: Redundant processor for scalable DCS integration .
- GE IS200TSVCH1A: Signal conditioning module compatible with DS200 series .
- GE DS200SDCCG1AGD: Motor drive controller for industrial synchronization .
Installation and Maintenance
Installation Preparation: Mount vertically on DIN rails within IP65-rated enclosures. Ensure grounding resistance <1Ω to suppress EMI. Pre-configure signal jumpers per turbine specifications .
Maintenance Recommendations: Perform biannual diagnostics via GE’s EnerVista software. Replace CR2032 backup batteries every 3 years and clean connectors with low-pressure nitrogen to prevent corrosion. Avoid firmware updates during live operations .
Product Assurance
GE provides a 1-year warranty covering hardware defects. Global 24/7 technical support includes on-site service for critical failures (4-hour response commitment). The module complies with IEC 61508/61511 functional safety standards and ATEX/IECEx certifications for hazardous environments .
