Description

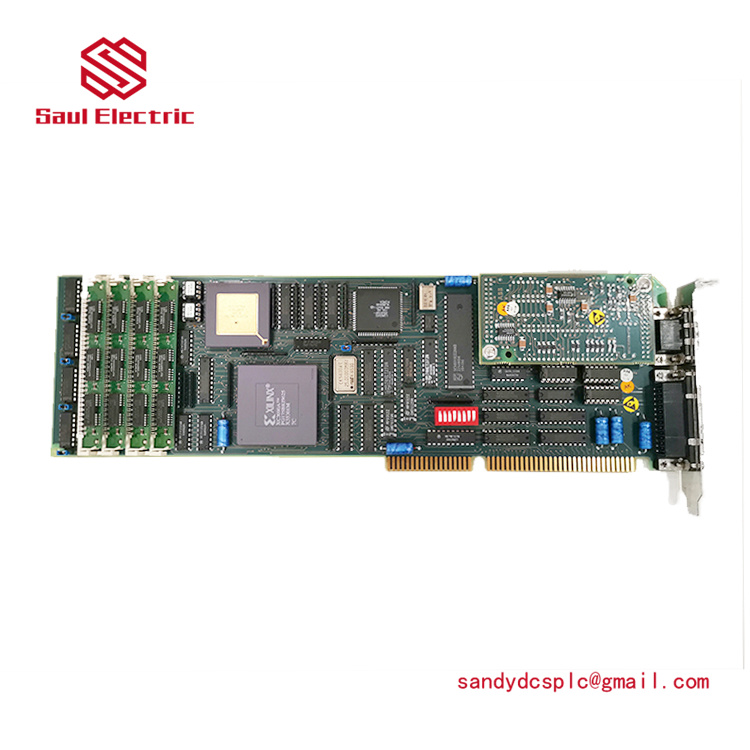

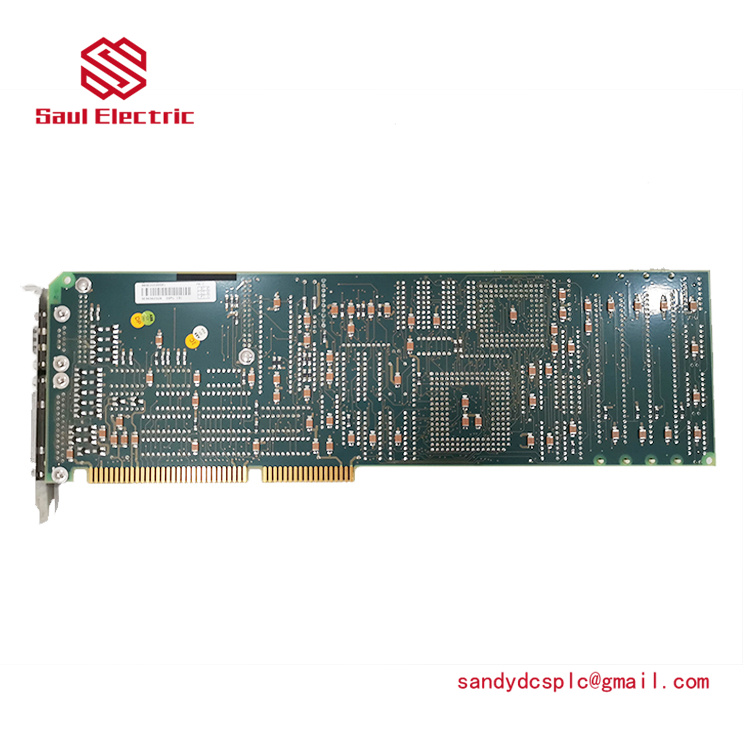

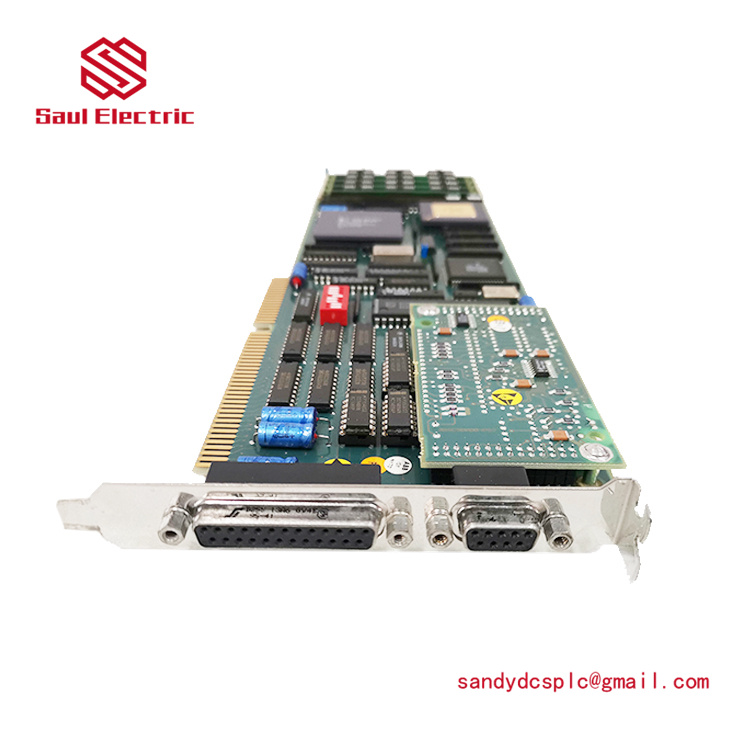

The ABB DSPU131-3BSE000355R1 is a digital signal processor module designed for industrial automation and process control applications. It serves as a critical component in ABB’s control systems, primarily functioning as a bridge for signal transmission and data exchange between different types of input/output (I/O) modules, communication modules, and other functional modules. Below is a detailed introduction to the ABB DSPU131-3BSE000355R1:
Product Overview
The ABB DSPU131-3BSE000355R1 is part of ABB’s DSPU series of digital signal processor units. It adopts a 32-bit DSP chip with a main frequency of up to 200 MHz, delivering powerful data processing capabilities. Equipped with 256 KB RAM and 512 KB Flash memory, it ensures efficient data processing and storage. The module provides 32 digital input/output ports and 8 analog input/output ports, supporting connections to various sensors and actuators. It also features RS-485 and Ethernet communication interfaces, enabling seamless integration with other modules or control systems for high-speed, stable data exchange and communication. As a key component of ABB’s industrial control systems, the ABB DSPU131-3BSE000355R1 is widely used in fields such as power system automation, petrochemical process control, water treatment, manufacturing automation, and remote monitoring systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB DSPU131-3BSE000355R1 |
| Manufacturer | ABB |
| Product Type | Interface Board Module |
| Processor | 32-bit DSP chip, main frequency up to 200 MHz |
| Memory | 256 KB RAM, 512 KB Flash |
| Digital I/O | 32 channels |
| Analog I/O | 8 channels |
| Communication Interfaces | RS-485, Ethernet |
| Power Requirements | 24 V DC ±20%, maximum input current 0.5 A |
| Dimensions | 144 mm x 80 mm x 30 mm |
| Weight | Approximately 0.5 kg |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 10% to 95% relative humidity (non-condensing) |
| Protection Rating | IP65 |
| Installation Method | DIN rail or rack-mounted |
DSPU131-3BSE000355R1
Key Features and Benefits
The ABB DSPU131-3BSE000355R1 boasts several standout features. Its 32-bit DSP chip with a 200 MHz main frequency enables rapid processing of complex data operations, ensuring efficient handling of input/output signals and data communication tasks. The 256 KB RAM and 512 KB Flash memory provide ample space for data storage and program execution, guaranteeing stable module operation. The module offers 32 digital I/O ports and 8 analog I/O ports, supporting diverse signal connections. Digital I/O supports single-ended and differential inputs, with relay outputs suitable for various application scenarios. The analog I/O can connect to sensors like temperature and pressure transmitters, as well as output analog signals to control actuators. The RS-485 and Ethernet communication interfaces facilitate high-speed data exchange with other modules or control systems, enabling easy integration into industrial networks for remote monitoring and management. The module adopts a modular design, making installation, maintenance, and replacement simple and flexible while enhancing system scalability. It also features industrial-grade design with a protection rating of IP65 and strong resistance to electromagnetic interference, ensuring stable operation in harsh industrial environments.
Application Scenarios
In power system automation, the ABB DSPU131-3BSE000355R1 can connect to devices such as generators, transformers, and circuit breakers, collecting operational data, monitoring equipment status, and enabling remote control and fault diagnosis. This ensures stable power system operation and improves power supply reliability. In petrochemical process control, the module can interface with field instruments like flow meters, pressure transmitters, and temperature sensors, collecting real-time data on production processes. It can also send control signals to valves, pumps, and other actuators to regulate parameters such as temperature, pressure, and flow, ensuring safe and efficient production. In water treatment and environmental engineering, the ABB DSPU131-3BSE000355R1 can connect to water quality sensors, flow meters, and other devices, monitoring water quality and treatment processes. It can adjust the operation of pumps, valves, and other equipment based on real-time data, optimizing treatment efficiency and reducing energy consumption. In manufacturing automation, the module can link production line equipment such as robots, CNC machines, and传感器s, collecting production data and equipment status information. It enables centralized monitoring and management of production lines, improving production efficiency and product quality. In remote monitoring and data acquisition systems, the ABB DSPU131-3BSE000355R1 can connect to remote devices and sensors, transmitting data over communication networks to monitoring centers. This allows for remote monitoring and management of equipment and processes, enhancing operational efficiency and management convenience.
Related Models
-
ABB DSPU132-3BSE000355R0: An upgraded model of the DSPU131 series, featuring enhanced processing capabilities and expanded I/O interfaces, suitable for more complex automation control tasks.
-
ABB DSPU133-3BSE000355R2: A high-end model of the DSPU131 series, equipped with advanced DSP chips and larger memory capacity, capable of handling high-speed data processing and complex control algorithms, ideal for demanding industrial control applications.
-
ABB DSQC355-3HAC020355R0: A communication interface board designed to work with the ABB DSPU131-3BSE000355R1, providing additional communication protocols and interfaces to enhance system communication capabilities.
-
ABB DSDU131-3BSE000355R1: A power supply module specifically designed for the ABB DSPU131-3BSE000355R1, ensuring stable power supply to the module and improving system reliability.
-
ABB DSRO131-3BSE000355R1: A digital input/output expansion module compatible with the ABB DSPU131-3BSE000355R1, offering more digital I/O ports to meet higher I/O requirements in automation systems.
-
ABB DSAI131-3BSE000355R1: An analog input expansion module designed to work with the ABB DSPU131-3BSE000355R1, providing additional analog input ports to accommodate more analog signal connections.
-
ABB DSAN131-3BSE000355R1: An analog output expansion module compatible with the ABB DSPU131-3BSE000355R1, offering more analog output ports to control additional actuators.
-
ABB DSRC131-3BSE000355R1: A relay output expansion module designed to work with the ABB DSPU131-3BSE000355R1, providing more relay output ports to drive various types of actuators.
Installation and Maintenance
Before installing the ABB DSPU131-3BSE000355R1, ensure the installation environment meets requirements such as temperature, humidity, and dust levels. The module can be mounted on a DIN rail or installed in a rack. During installation, secure the module firmly and ensure good electrical connections between the module and other devices. Regular maintenance of the ABB DSPU131-3BSE000355R1 includes inspections, cleaning, and testing. Periodically check the module’s operational status, clean its surface to remove dust and dirt, and test its performance to ensure stable operation. Additionally, regularly back up the module’s data and programs to prevent data loss. Firmware updates should be performed promptly to enhance module functionality and reliability.
Product Warranty
ABB provides a 12-month warranty for the ABB DSPU131-3BSE000355R1, covering manufacturing defects and performance issues under normal operating conditions. ABB’s global support network offers technical assistance, replacement parts, and field service engineering resources to ensure prompt and effective support for users. ABB is committed to delivering high-quality products and services, and the ABB DSPU131-3BSE000355R1 is no exception. The company stands behind its products with confidence, ensuring customer satisfaction. For detailed warranty terms and service offerings, refer to the official ABB documentation or contact your local ABB representative.
