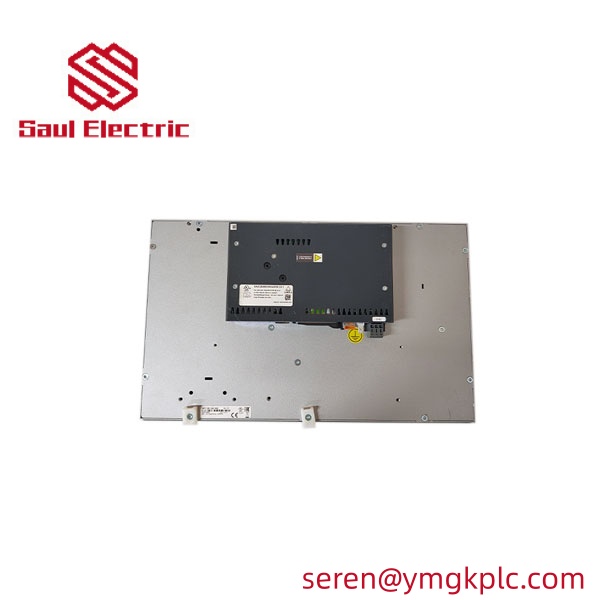

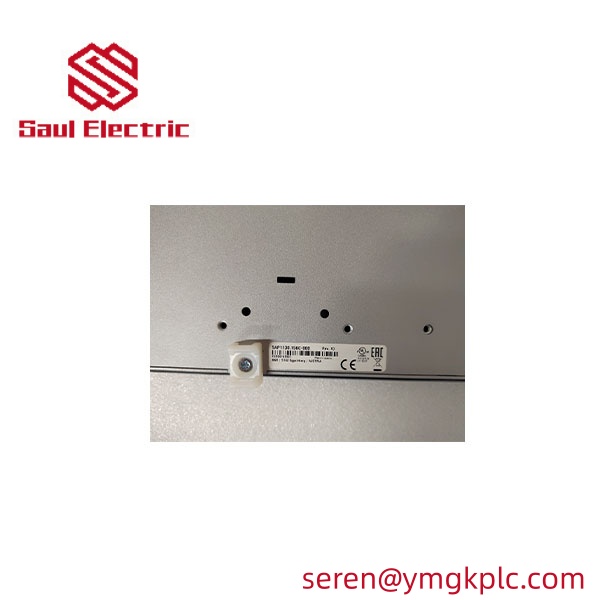

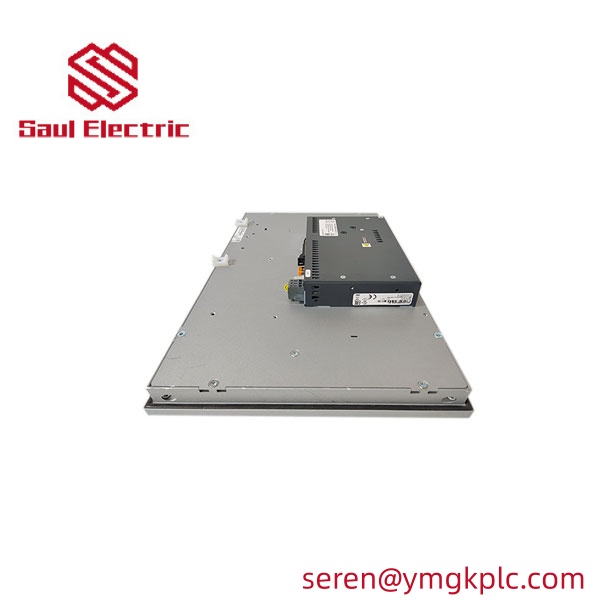

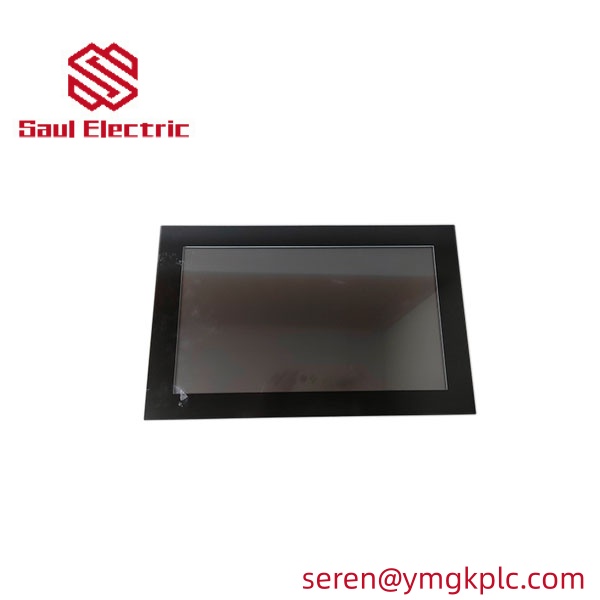

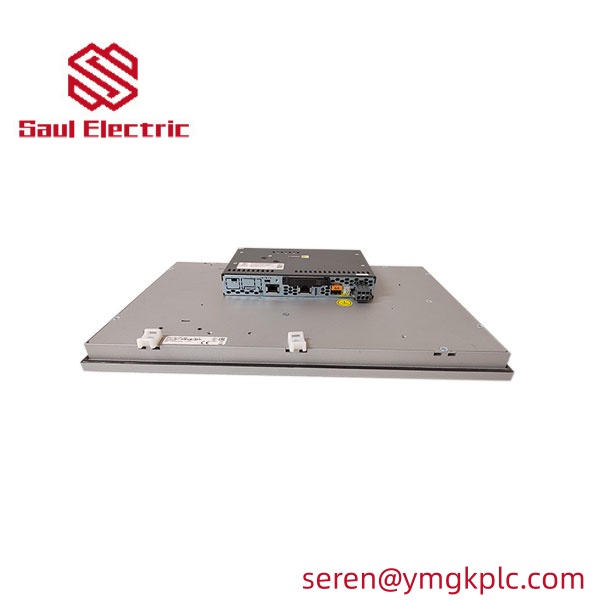

B&R 5AP1130.156C-000 Automation Panel | 15.6″ HD Multi-touch Swing Arm Display

Description

【Product Overview】

The B&R 5AP1130.156C-000 is a high-performance 15.6-inch HD Automation Panel from the specialized Automation Panel 1000 series.

Designed for modern, ergonomic machine operation, this panel features a Full IP65-rated housing, making it ideal for swing arm mounting directly on the machine without the need for an additional control cabinet. Equipped with Projected Capacitive (PCT) multi-touch technology, it provides a high-resolution, widescreen interface that supports intuitive gestures. The 5AP1130.156C-000 combines aesthetic design with extreme industrial durability, ensuring reliable performance in demanding environments like food processing, automotive assembly, and pharmaceutical manufacturing.

【Technical Specifications】

Parameter	Details
Brand	B&R (Bernecker + Rainer)
Model	5AP1130.156C-000
Series	Automation Panel 1000
Display Size	15.6-inch Widescreen
Resolution	HD 1366 x 768 pixels
Touch Technology	Multi-touch (Projected Capacitive)
Mounting Type	Swing Arm / Support Arm (Top or Bottom)
Protection Rating	Full IP65 (Dust and Water Jet Resistant)
Interface	Integrated Link for SDL/SDL3/DVI (via Link Module)
Housing Material	Coated Aluminum / Glass Front
Condition	100% Original / Brand New or Fully Tested
Warranty	12 Months



【Key Features】

(1) Complete IP65 Protection: The entire unit is protected against dust and moisture, perfect for mounting outside of control cabinets.

(2) 15.6″ HD Widescreen: Offers a spacious 16:9 aspect ratio for complex HMI layouts and detailed data visualization.

(3) Ergonomic Swing Arm Design: Flexible mounting options allow operators to position the screen at the perfect angle for safe operation.

(4) Advanced PCT Multi-touch: Supports multi-finger gestures such as zooming and swiping, even when wearing industrial gloves.

(5) Durable Glass Front: Chemically strengthened glass surface is resistant to scratches and common industrial cleaning agents.

(6) Modular Component System: Easily expandable with B&R Link Modules or Panel PC units for customized system integration.

【Applications】

(1) Machine-Level HMI: Direct operator control on packaging, CNC, and injection molding machinery.

(2) Food & Pharma Production: Hygienic design with Full IP65 protection suitable for wash-down areas.

(3) Automotive Assembly: Rugged interface for robotic cells and automated production lines.

(4) Cleanroom Environments: Smooth, easy-to-sanitize surface for semiconductor and medical manufacturing.

(5) Process Monitoring: High-resolution display for real-time tracking of complex industrial processes.



【Related Models / Compatible Modules】

The 5AP1130.156C-000 is frequently used with:

• 5ACC100.SDL0-00 (Smart Display Link Receiver)
• 5ACC100.SDL3-00 (Smart Display Link 3 Receiver for long distances)
• 5AP1130.185C-000 (18.5-inch swing arm variant)
• 5AP1120.101E-000 (10.1-inch swing arm variant)

👉 We provide the full spectrum of B&R AP1000 and AP900 series panels.

【Supply Advantage】

(1) Ready-to-Ship Inventory: 5AP1130.156C-000 units are currently in stock for rapid global dispatch.

(2) Competitive B2B Quotes: Receive professional pricing tailored for trading companies and project procurement within 24 hours.

(3) Strategic Logistics: Deep experience shipping to CIS (Russia, Kazakhstan), Middle East (UAE, Saudi Arabia), and Southeast Asia.

(4) Verified Authenticity: 100% original B&R parts with full traceability and original factory markings.

(5) Project Procurement Support: Support for high-volume orders and ongoing supply for machine builders (OEMs).

(6) Safe International Transit: Custom shock-proof packaging designed for large-format glass displays.



【Why Choose Us】

(1) B&R Automation Experts: Technical proficiency in B&R’s HMI and PC-based control architectures.

(2) 12-Month Quality Guarantee: Full warranty coverage for peace of mind in mission-critical applications.

(3) Transparent Communication: Professional service with real-time updates on stock, shipping, and technical documentation.

(4) Reliable Partner: A trusted supplier for international middlemen and industrial procurement engineers.



【Procurement Process】

(1) Send Inquiry: Email or WhatsApp us with part number 5AP1130.156C-000.

(2) Receive Quote: Get a detailed Proforma Invoice (PI) including lead time and shipping costs.

(3) Confirm Order: Finalize the quantity and confirm your preferred shipping method.

(4) Secure Payment: Payment via Telegraphic Transfer (T/T).

(5) Final QA: The panel undergoes a thorough visual and functional inspection.

(6) Global Delivery: Shipped via DHL/FedEx/UPS with real-time tracking provided.



【FAQ】

Q1: Does this panel require a separate Link Module for connection?

A: Yes, as an Automation Panel, it requires an SDL, SDL3, or DVI Link Module to connect to a controller or PC.

Q2: Is the “Full IP65” rating applicable to the back of the panel?

A: Yes, the 5AP1130.156C-000 is designed for swing arm mounting and has a fully enclosed IP65 housing, including the rear.

Q3: Can it be mounted on a support arm from the top?

A: Yes, the modular design allows for support arm mounting from either the top or the bottom.

Q4: Do you ship to Kazakhstan or Russia?

A: Yes, we have extensive experience and reliable logistics channels for shipping to the CIS region.
