Bently Nevada 3500/22M 288055-01 | Standard Transient Data Interface (TDI)

Description

1. Product Overview

The Bently Nevada 3500/22M (Part Number 288055-01) is the master communication and data management engine of the globally trusted 3500 Machinery Protection System. Functioning as a high-speed data bridge, the TDI module aggregates critical static trend data and complex dynamic waveforms from all localized monitoring channels within the chassis. It then streams this real-time machinery health data directly to supervisory networks and Bently Nevada’s System 1 Asset Management Software for advanced predictive diagnostic profiling.

Unlike the legacy 3500/20 Rack Interface Module (RIM) which it successfully replaces, the 288055-01 TDI module possesses massive onboard digital signal processing capabilities. It continuously buffers high-frequency vibration waveforms, orbital plots, and cascade data during steady-state operations. More importantly, it automatically captures high-density transient data events during critical machine startups and unplanned emergency trip coastdowns, ensuring reliability engineers possess the exact millisecond-accurate analytics required to root-cause turbulent machine failures.

Key Applications:

• Critical Turbine Startups: Capturing continuous high-resolution transient vibration plots as the machine passes through critical rotor resonance frequencies.

• System 1 Diagnostic Networks: Serving as the dedicated high-speed Ethernet gateway feeding live machine orbits and spectrum data to remote diagnostic centers.

• Plant-Wide DCS Integration: Translating rack status registers, system alerts, and hardware health bits into standard operational controller networks.

• Machinery Root-Cause Analysis: Providing precise time-stamped pre-trip and post-trip wave logs to reconstruct shaft behaviors during emergency shutdown loops.

2. Technical Features

3. Commercial Procurement Protocol

1. Rack Blueprint Verification: Our application engineers cross-check your existing backplane I/O configuration to guarantee the 288055-01 standard variant aligns perfectly with your host rack setup.

2. Itemized Quotation Engineering: You receive a formal trade proposal outlining multi-unit price tiers, active factory stock availability, and global air-freight schedules.

3. Global Trade Verification: Immediate routing through export control compliance filters checking ECCN classifications and destination data.

4. Proforma Invoice Transmission: Detailed corporate Proforma Invoices (PI) are delivered within hours to satisfy internal procurement audits and accelerate capital approval.

5. Secure Financial Settlement: Financial transaction processing handled safely via enterprise banking channels using Telegraphic Transfer (T/T wire channels).

6. Pre-Dispatch Hardware Audit: Physical manual inspection to verify crisp front panel key switch mechanics, clean backplane connectors, and recording the factory firmware matrix.

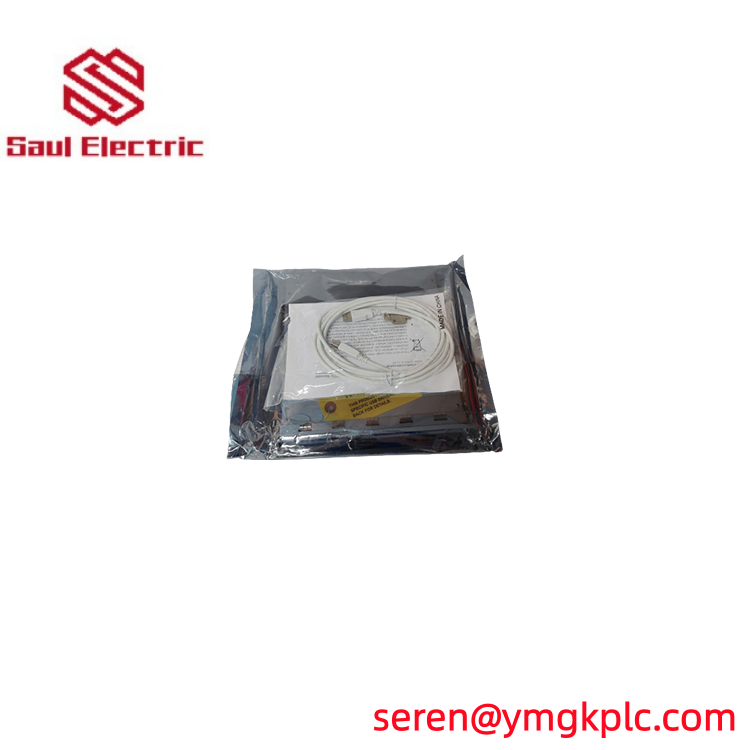

7. Premium Static-Shield Packing: Vacuum-packed inside certified anti-static (ESD) foil barriers with protective foam cushions covering the edge connectors.

8. Expedited Logistics Cargo: Sourced items are immediately handed over to premium air freight couriers (DHL Express, FedEx, UPS) with live tracking coordinates.

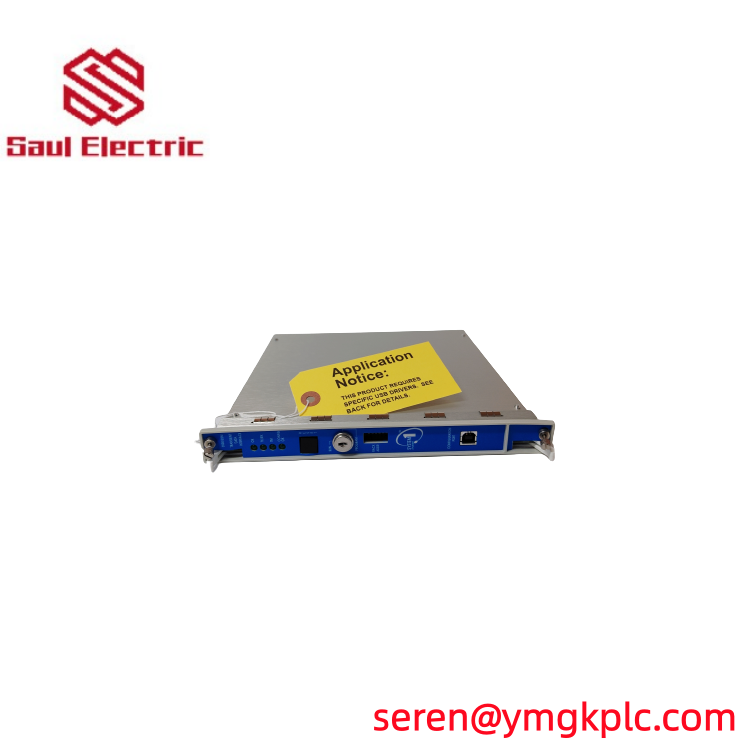

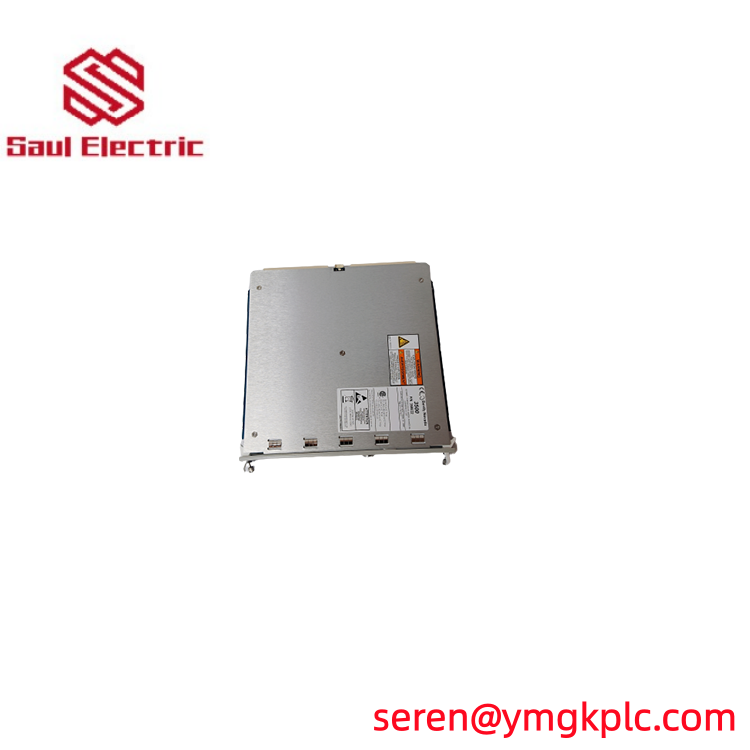

4. Visual Product Showcase

5. Related Fleet Spares Systems

• Bently Nevada 146031-01 (3500/22M Standard 10Base-T/100Base-TX Ethernet Network I/O Module)

• Bently Nevada 3500/15 (125720-01) (Legacy High-Output 3500 Series Main Power Supply Block)

• Bently Nevada 3500/40M (176449-01) (4-Channel Proximitor Signal Processor Machinery Monitor Card)

6. Warranty Protection & Continuous Supply Assurances

• Extended 12-Month Supplier Warranty: Comprehensive 1-year swap-out or repair warranty shielding your operation against component or processing defects under normal use.

• Authenticity Guarantee: We supply only authentic, original factory-branded parts to protect the structural specifications of your plant panels.

• Consistent Logistics Tracking: Provision of automated shipping notification routes and complete customs declaration sheets for reliable delivery.

7. FAQ

Q: Does the 288055-01 TDI module come pre-loaded with Transient Data Enablement?

The 288055-01 hardware includes full physical capability to gather transient data. However, the transient waveform extraction function within System 1 software requires a specific Bently Nevada configuration key or software license. If you are replacing a dead TDI module, you can easily transfer your existing system configuration profile onto this new module using the 3500 Rack Configuration utility.

Q: Can this module be hot-swapped into a live, running 3500 machinery protection rack?

Yes, the 3500/22M TDI module can technically be removed or inserted while the rack is powered up because the individual monitoring cards (like the 3500/42M) handle automatic machinery trip safety loops independently. However, while the TDI is pulled out, all communication to your external DCS, PLC, or System 1 diagnostic computer will temporarily stop.

Q: What is the purpose of the front-panel “PROGRAM” mode key switch position?

The physical key switch acts as a secure industrial hardware firewall. When turned to the “RUN” position, it locks the rack’s configuration database, preventing anyone from accidentally altering alarm trip setpoints or sensor parameters over the network. It must be turned to “PROGRAM” mode only when making authorized changes via the USB or Ethernet connection tools.
