Description
Key Features and Benefits
The BENTLY 3500/92 136180-01 offers dual communication support, enabling flexible system integration. Users can choose the communication method that best suits their requirements, providing versatility across various industrial applications. It is compatible with multiple communication protocols, such as Modbus ASCII, Modbus RTU, and DNP3, ensuring seamless integration with a wide range of systems. The module utilizes a high-speed internal network to collect data from other modules in the rack, including current measurement values with timestamps, module status, and current alarm status. The data collection rate for all modules in the rack does not exceed 1 second (depending on rack configuration). Its configurable Modbus register utility provides the same functionality as the original main value Modbus registers.

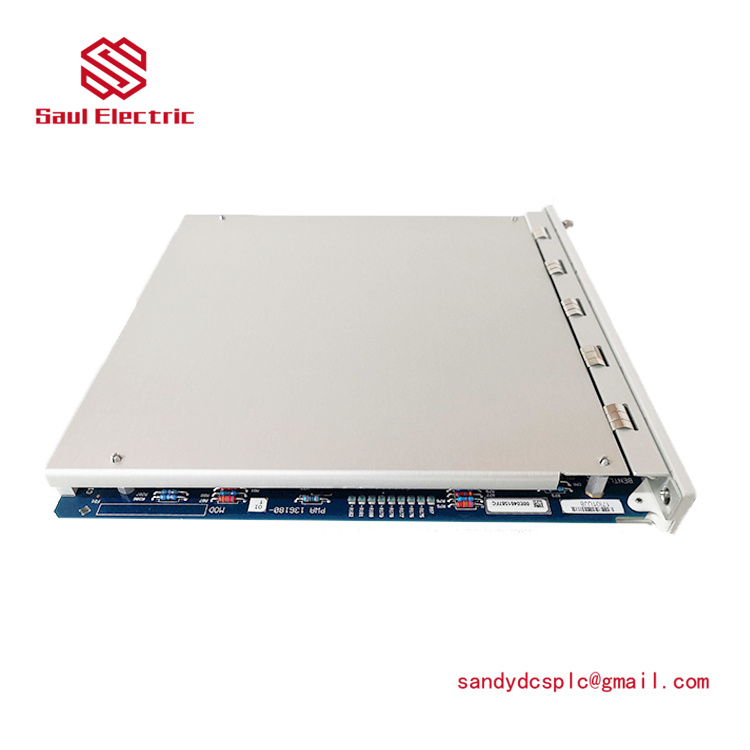

136180-01
Application Scenarios
The BENTLY 3500/92 136180-01 is suitable for various industrial automation and process control fields requiring efficient data communication and equipment monitoring. In power plants, it integrates with the plant’s SCADA system to monitor generator performance and energy distribution. In oil & gas refineries, it connects field instruments (e.g., pressure transmitters, flow meters) with control systems, supporting communication between Profibus-based devices and Ethernet/IP-based control systems to ensure reliable data transmission in hazardous environments.

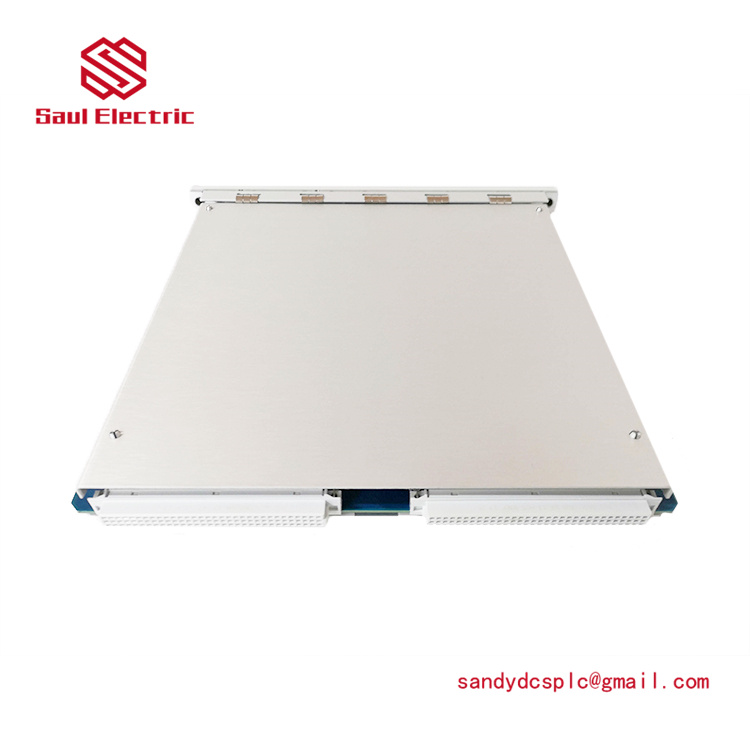

136180-01
Installation and Maintenance
Before installing the BENTLY 3500/92 136180-01, ensure the installation environment meets the module’s operating requirements. The location should be well-ventilated to prevent overheating and free from excessive dust and vibration to extend component lifespan. Secure the module to a standard 35mm DIN rail using the included mounting hardware. Verify that the 24V DC power supply is stable and properly fused to prevent damage to the module. All Ethernet and RS232/RS422/RS485 cables should be shielded to minimize electrical interference, and connections must be secure to ensure reliable signal transmission. Use BENTLY Nevada’s dedicated software to configure the module’s IP address, protocol settings, and security policies, testing connectivity with connected devices before finalizing the setup.

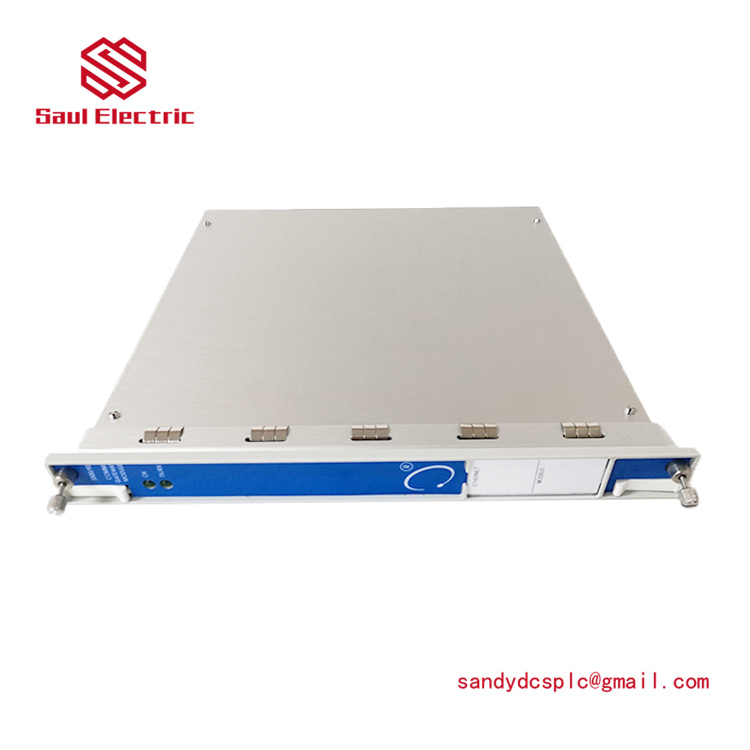

136180-01
