Allen-Bradley 1756-IF16 ControlLogix Analog Input Module | Non-Isolated

Description

【Product Overview】

The Allen-Bradley 1756-IF16 is a high-density 16-point Analog Input Module designed for the ControlLogix automation platform.

As a vital interface for process automation, this module converts continuous analog signals from field devices—such as pressure transmitters, flow meters, and temperature sensors—into digital data for the ControlLogix processor. Supporting both Voltage (-10 to +10V) and Current (0 to 20mA / 4-20mA) inputs, the 1756-IF16 offers 16 single-ended or 8 differential channels, providing the flexibility needed for complex industrial monitoring. Whether you are managing a refinery’s fluid dynamics or a water treatment plant’s chemical dosing, the 1756-IF16 delivers the precision, high-speed sampling, and industrial-grade reliability required for mission-critical feedback loops.

【Technical Specifications】

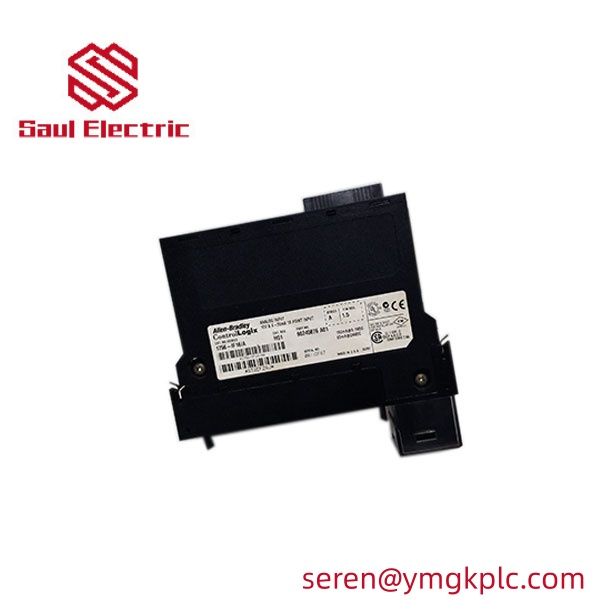

Allen-Bradley 1756-IF16 ControlLogix 16-Point Analog Input Module label

【Key Features】

(1) High-Density Monitoring: 16 channels in a single-slot module allow for massive data collection without expanding the chassis footprint.

(2) Flexible Signal Support: Software-selectable ranges for both voltage and current allow for easy integration with almost any industrial sensor.

(3) 16-Bit High Resolution: Ensures extreme accuracy in signal conversion, allowing the control system to detect even the most minute changes in process variables.

(4) Digital Filtering: Built-in notch filters and low-pass filtering effectively eliminate electrical noise (50/60 Hz), ensuring a “clean” signal reaches the CPU.

(5) Real-Time Scaling: Automatically scales raw counts into engineering units (e.g., PSI, GPM, Celsius) directly within the module, reducing CPU load.

(6) Hot-Swappable (RIUP): Supports Removal and Insertion Under Power, allowing for zero-downtime maintenance of critical I/O links.

【Applications】

(1) Process Control: Real-time monitoring of pressure, temperature, and flow in Chemical and Oil & Gas facilities.

(2) Water & Wastewater: Tracking tank levels and chemical concentrations across distributed treatment stations.

(3) Power Generation: Monitoring turbine and generator auxiliary parameters for preventive maintenance.

(4) HVAC & Building Automation: Centralized sensing for large-scale air handling and environmental control units.

(5) Bidding & Tenders: A high-demand item for international B2B traders supporting large-scale industrial infrastructure projects.

【Related Models / ControlLogix Spares】

The 1756-IF16 is the industry standard for analog input, often paired with:

• 1756-OF16: 16-point Analog Output Module.
• 1756-IF8: 8-point version for smaller I/O requirements.
• 1756-L71 / L72 / L81E: High-performance Logix Processors.
• 1756-IRT8I: Highly isolated RTD/Thermocouple modules.
• 1756-TBNH: 20-position NEMA Removable Terminal Block.

👉 We provide full support for 1756 series Analog, Digital, and Specialty modules.

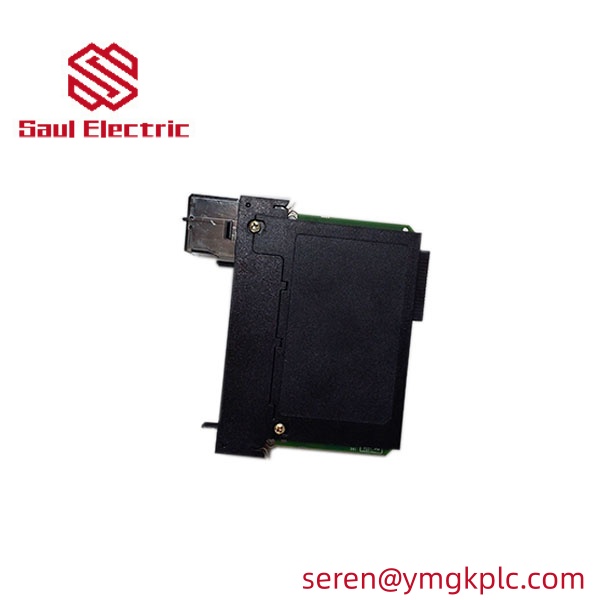

Allen-Bradley 1756-IF16 ControlLogix 16-Point Analog Input Module backside

【Supply Advantage】

(1) Xiamen Strategic Inventory: 1756-IF16 units are currently in stock for immediate worldwide shipping.

(2) Fast 24-Hour B2B Quotes: Receive a formal Proforma Invoice (PI) with competitive pricing for your urgent project or trade order.

(3) Global Logistics Excellence: Proven experience shipping high-value Allen-Bradley modules to Russia, UAE, Kazakhstan, Saudi Arabia, and Southeast Asia.

(4) 100% Quality Guaranteed: Every module is visually audited and undergoes a signal calibration test to ensure 100% technical accuracy.

(5) Professional Documentation: We provide all necessary commercial invoices and origin documents for fast international customs clearance.

(6) Secure Export Packaging: Dispatched in anti-static shielding and reinforced, shock-proof packaging for maximum transit safety.

【Why Choose Us】

(1) Analog Component Experts: Expert knowledge in signal range configuration and terminal block compatibility.

(2) 12-Month Quality Warranty: Full replacement guarantee on all original 1756-IF16 modules.

(3) Visual Accountability: We provide high-resolution photos and video verification of the specific unit and its labels before you finalize the payment.

(4) Reliable Partner: A trusted procurement source for global EPC contractors, system integrators, and industrial maintenance houses.

【Procurement Process】

(1) Inquiry: Contact us via Email or WhatsApp with the part number 1756-IF16.

(2) Quote: Receive detailed pricing and shipping options within 24 hours.

(3) Confirm Order: Finalize quantity and confirm your shipping method (DHL/FedEx/UPS).

(4) Payment: Secure payment via T/T.

(5) Inspection: Final QA check and photo documentation of your specific order.

(6) Dispatch: Rapid shipping with real-time tracking provided.

【We Also Supply】

Consolidate your industrial automation and process control sourcing with our elite brands:

• SIEMENS: SIMATIC S7-1500 (6ES7531) and S7-300 (6ES7331) analog modules.
• SCHNEIDER: Modicon Quantum (140AVI) and M580 series.
• ABB: S800 I/O (AI810) and AC800M series components.
• HONEYWELL: Experion C300 analog input and output cards.
• GE FANUC: RX3i (IC694) and 90-30 series analog spares.

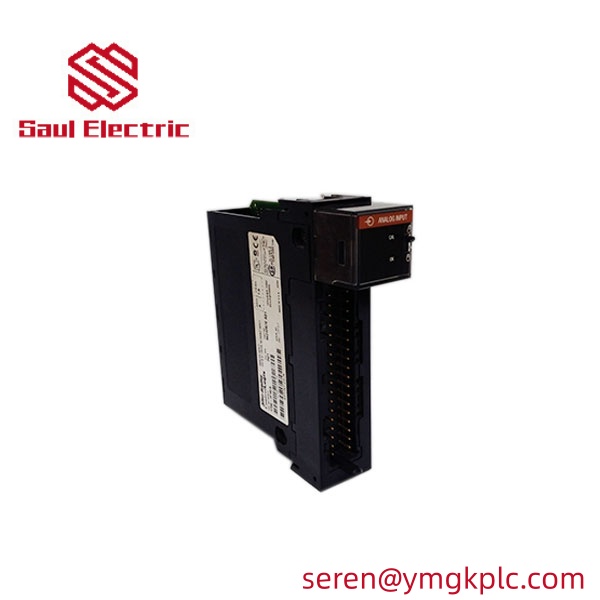

Allen-Bradley 1756-IF16 ControlLogix 16-Point Analog Input Module sideview
