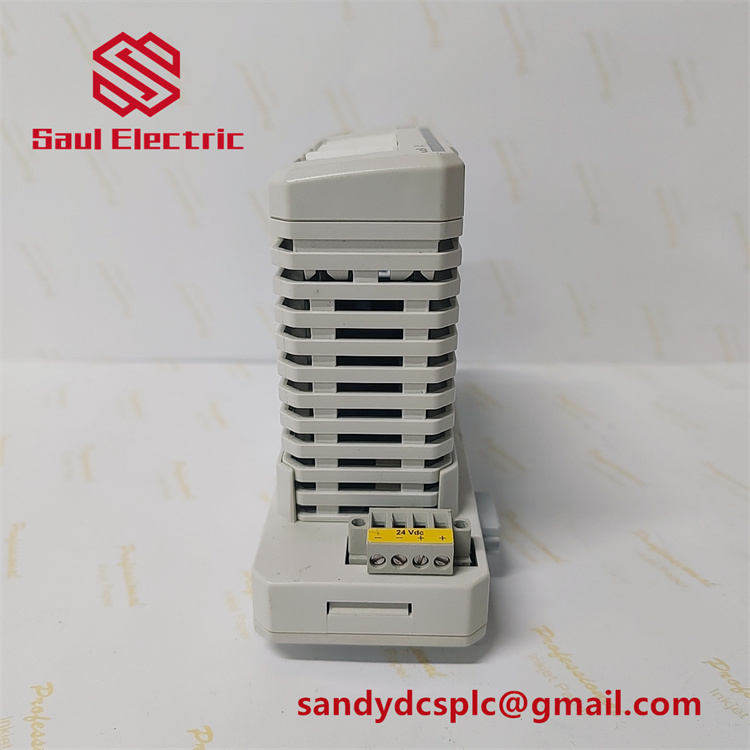

Brand Model: ABB TU810V1 3BSE013230R1
Product Name: Compact Module Termination Unit
Size: 64 mm × 170 mm × 58.5 mm
Weight: 0.17 kg
Origin: Sweden/Bulgaria
Certifications: CE, UL, CSA, ATEX, marine approvals

Get a Quote
Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

ABB TU810V1 3BSE013230R1 Compact Module Termination Unit (MTU)

Product Overview

The ABB TU810V1 3BSE013230R1 is a 16-channel compact module termination unit (MTU) designed for ABB’s S800 I/O system, serving as a critical interface between field devices and I/O modules in industrial automation. As a passive signal distribution hub, it enables reliable connection and management of analog/digital signals while distributing the module bus to downstream MTUs and I/O modules. This model is optimized for harsh environments and offers enhanced temperature resilience compared to standard TU810 variants .



Key attributes include a rugged polycarbonate housing (IP20-rated), supporting DIN rail or panel mounting, and compatibility with a wide range of S800 I/O modules (e.g., AI 810, DI 810, AO 810). The TU810V1 plays a pivotal role in distributed control systems (DCS) like ABB’s Advant 800xA, ensuring seamless integration of sensors, actuators, and process equipment across industries such as oil & gas, power generation, and chemical processing .

Technical Specifications

Parameter Value
Product Model ABB TU810V1 3BSE013230R1
Manufacturer ABB
Product Type Compact Module Termination Unit (MTU) for S800 I/O system
Function Signal distribution hub for field devices and I/O modules
Rated Voltage 50 V AC/DC
Maximum Current 2 A per I/O channel; 5 A per process connection
Operating Temperature 0°C to +55°C (horizontal mounting); 0°C to +40°C (vertical mounting)
Storage Temperature -40°C to +70°C
Humidity 5–95% non-condensing
Physical Dimensions 64 mm (depth) × 170 mm (height) × 58.5 mm (width)
Weight 0.17 kg (net)
Mounting Type DIN rail or panel-mounted
Channels 16 channels (2×8 signal terminals)
Isolation Voltage 50 V
Protection Class IP20
Compatibility S800 I/O modules (AI 810, AI 815, DI 810, DO 810, etc.)

Key Features and Advantages

  1. Modular Signal Distribution:
    The TU810V1 acts as a passive interface between field wiring and I/O modules, distributing the module bus to downstream MTUs and generating addresses for I/O modules via mechanical keying (6-position keys for 36 configurations). This ensures precise signal routing and prevents incorrect module insertion .
  2. Enhanced Environmental Resilience:
    • Temperature Range: Operates reliably from 0°C to +55°C (horizontal) or 0°C to +40°C (vertical), making it suitable for high-heat environments like power plants or offshore platforms .
    • Certifications: CE, UL, CSA, ATEX (Zone 2), and marine certifications (ABS, BV, DNV-GL) ensure compliance with global safety standards .
  3. Tool-Free Installation:
    Spring terminals enable fast, secure wiring without tools, reducing downtime during maintenance. The lightweight design (0.17 kg) and compact form factor simplify installation in space-constrained cabinets .
  4. Multi-Industry Compatibility:
    Supports seamless integration with ABB’s Advant 800xa DCS, AC500 PLCs, and third-party systems via Profibus DP or Ethernet/IP. It is widely used in oil & gas, water treatment, and manufacturing sectors .
  5. Redundancy Support:
    While not inherently redundant, the TU810V1 can be integrated into redundant I/O networks to enhance system availability, critical for mission-critical applications like chemical reactors or power grids .

Application Areas

The TU810V1 excels in industries requiring reliable signal management and modular I/O connectivity:



  • Oil & Gas: Manages wellhead pressure sensors, valve actuators, and flow meters in offshore platforms and refineries.
  • Power Generation: Integrates turbine control systems, boiler sensors, and grid stabilization equipment.
  • Chemical Processing: Controls reactor temperature transmitters, distillation column valves, and safety interlocks.
  • Water Treatment: Manages pump stations, pH sensors, and anaerobic digesters in wastewater treatment plants.
  • Manufacturing: Connects robotic arm sensors, conveyor belt actuators, and quality control equipment in automotive production lines .

Installation and Maintenance

Installation Steps:



  1. Mounting: Secure the TU810V1 on a DIN rail in a dry, well-ventilated area.
  2. Wiring: Connect field wiring (24 V DC power and signal cables) using the spring terminals.
  3. Key Configuration: Adjust mechanical keys to match the connected I/O modules (e.g., analog vs. digital) .



Maintenance Recommendations:



  • Periodic Inspections: Check for loose connections or corrosion, especially in humid or corrosive environments.
  • Firmware Updates: Ensure compatibility with the latest DCS software versions via ABB’s Automation Builder tool.
  • Diagnostic Monitoring: Use ABB’s diagnostic tools to monitor signal integrity and module health .

Product Availability

  • Warranty: 1 year against defects in materials and workmanship. Some distributors offer extended warranties (e.g., 2 years) .
  • Inventory: Limited stock available globally, with expedited delivery options (e.g., 3–5 days for Xiamen, China-based orders) .
  • Distributors: Authorized suppliers like 大德汇成科技 (Xiamen) and 深圳长欣自动化设备有限公司 offer local support and technical expertise .



HS:8443919090
