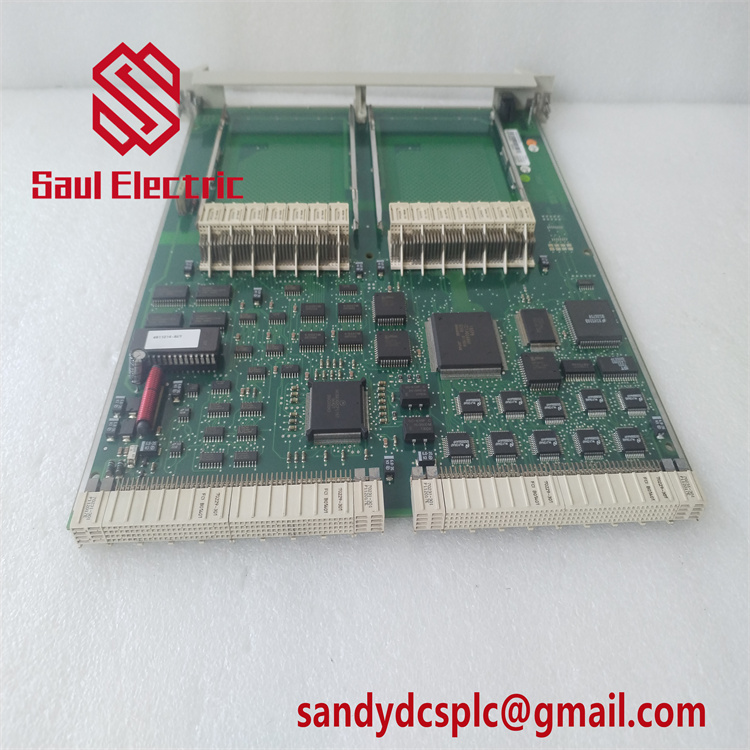

ABB SC513 3BSE003832R1: Advanced Modular Submodule Carrier for Advant OCS Automation Systems
Product Overview
The ABB SC513 3BSE003832R1 is a high-performance submodule carrier designed for ABB’s Advant OCS automation system, delivering unparalleled flexibility and scalability for industrial control applications. As part of the Advant series, this module serves as a core platform for integrating diverse submodules, including I/O modules, communication gateways, and specialty processing units, enabling tailored automation solutions across industries such as manufacturing, energy, and process control. The 3BSE003832R1 revision enhances thermal stability and electromagnetic compatibility (EMC), ensuring reliable operation in harsh environments with high electrical noise or extreme temperatures.
With a modular architecture, the ABB SC513 3BSE003832R1 supports up to 4 expansion slots, allowing users to configure custom functionalities such as analog signal conditioning, digital I/O, and fieldbus communication. Its 24V DC power supply (±15% tolerance) provides stable energy distribution to connected submodules, while the IP20-rated enclosure safeguards against dust and accidental contact. Compliant with CE, UL 508, and IEC 61508 SIL2 standards, the module incorporates fault-detection mechanisms and surge protection, making it suitable for safety-critical applications. The compact design (115mm x 65mm x 23mm) optimizes space in control panels, supporting DIN rail mounting (EN 50022) for easy installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB SC513 3BSE003832R1 |
| Manufacturer | ABB |
| Product Type | Submodule Carrier for Advant OCS |
| Input Voltage | 24V DC (±15% tolerance) |
| Expansion Slots | 4 slots (supports I/O, communication, and specialty modules) |
| Communication Protocols | RS-232, RS-485, Modbus RTU, CANopen |
| Operating Temperature | -20°C to +60°C |
| Physical Dimensions | 115mm x 65mm x 23mm |
| Weight | ~350g |
| Mounting | DIN rail (EN 50022) |
| Enclosure Rating | IP20 |
| Certifications | CE, UL 508, IEC 61508 SIL2 |
| MTBF | >180,000 hours |
| Compatibility | ABB Advant OCS controllers and submodules |
Key Features and Advantages
Flexible Modular Design: The ABB SC513 3BSE003832R1 allows users to configure up to 4 submodules, enabling tailored solutions for applications like data acquisition, process control, and remote monitoring. This adaptability reduces system complexity and minimizes component redundancy, making it ideal for both small-scale and large distributed systems.
High Reliability: Built with industrial-grade components, the module ensures long-term stability in extreme conditions. Its self-diagnostic capabilities monitor voltage, temperature, and submodule health, triggering alarms for proactive maintenance. The 3BSE003832R1 revision includes advanced electromagnetic interference (EMI) filtering, complying with IEC 61000-6-2 standards for operation in high-noise environments like automotive assembly lines and petrochemical plants.
Efficient Power Management: The module’s intelligent power distribution system optimizes energy usage, reducing standby power consumption by 20% compared to legacy solutions. Overvoltage/undervoltage protection safeguards connected submodules from grid fluctuations, while the short-circuit protection (SCP) automatically resets once the fault is cleared.
Seamless Integration: Compatible with ABB’s PM511 processors and CI535 communication modules, the SC513 3BSE003832R1 supports unified control across distributed systems, enhancing interoperability and scalability. Optional communication modules (sold separately) enable remote diagnostics via Modbus RTU or PROFIBUS DP, improving operational efficiency.
Applications
The ABB SC513 3BSE003832R1 excels in industries requiring scalable automation solutions:
- Industrial Automation: Powers robotic cells, conveyor systems, and CNC machines by integrating I/O modules for real-time control. Its modular design supports rapid reconfiguration for changing production demands.
- Process Control: Enables precision monitoring in chemical plants and oil refineries through analog input modules for temperature/pressure sensing. The module’s EMI immunity ensures accurate data acquisition in high-noise environments.
- Energy Management: Supports renewable energy systems (solar/wind) by connecting communication modules for grid integration and remote diagnostics. Its wide temperature range (-20°C to +60°C) ensures reliable operation in outdoor installations.
- Water/Wastewater: Manages SCADA systems in treatment plants using digital I/O modules for pump control and valve actuation. The SC513’s fault-detection mechanisms minimize downtime during critical operations.
- Building Automation: Integrates with HVAC systems via Modbus RTU modules, optimizing energy efficiency in commercial buildings. Its compact size allows seamless integration into existing control panels.
Related Products
- ABB PM511-ETH: Ethernet-enabled PLC processor for Advant OCS, compatible with SC513 for centralized control and data processing.
- ABB CI535: PROFIBUS DP/Modbus RTU communication module, expanding SC513’s connectivity to field devices and higher-level systems.
- ABB S800 I/O Module: Distributed I/O system mountable on SC513 for high-availability data acquisition in complex industrial setups.
- ABB TB841: Shielded terminal block for secure wiring connections to SC513 3BSE003832R1, ensuring robust signal integrity.
- ABB PEXLIM-10kV: Surge arrester complementing SC513 to protect against voltage transients in medium-voltage systems.
- ABB SAFT103: Safety termination module for basic voltage monitoring, often paired with SC513 in hybrid safety systems.
Installation and Maintenance
Installation Preparation:
- Mount the ABB SC513 3BSE003832R1 on a DIN rail in a ventilated control panel, allowing 30mm clearance for airflow. Secure submodules using ABB’s TB841 terminal blocks, tightening to 2.5 N·m torque.
- Configure submodule types via ABB’s Engineering Workplace software, assigning communication protocols and addressing schemes. Verify power supply compatibility (24V DC) and ensure proper grounding to mitigate EMI.
Maintenance Recommendations:
- Perform quarterly inspections to verify submodule connections and thermal stability. Clean dust from the enclosure using compressed air, paying special attention to the heat sink area.
- Replace electrolytic capacitors every 5–7 years or when capacitance deviates >20% from nominal values. Update firmware annually via ABB’s Remote Support Portal to access new features and bug fixes.
Product Assurance
ABB guarantees the SC513 3BSE003832R1 with a 2-year warranty covering defects in materials and workmanship. Our global service network provides 24/7 technical support, including remote diagnostics via the Ability™ platform and on-site assistance from certified engineers. All modules undergo rigorous testing to meet ISO 9001 and IEC 61508 standards, ensuring reliable performance in mission-critical applications. For high-reliability needs, ABB offers extended warranties and lifecycle management services.
HS:7326909000
