ABB REG216 | Generator & Transformer Protection Module

ABB REG216 | Generator & Transformer Protection Module

Original price was: $3,200.00.Current price is: $2,800.00.

  • Description: Numerical Generator & Transformer Protection System Module
  • Brand/Original Manufacturer: ABB Power Grids / ABB Substation Automation
  • System Infrastructure: ABB REG216 Modular Generator Protection Architecture
  • Hardware Model Series: REG216 (Cross-referenced to 1MRB / HESG Board Assemblies)
  • Processor Architecture: Dual 32-bit Microprocessor Architecture with Real-Time Self-Diagnostics
  • Protection Algorithms: Stator/Rotor Earth Fault, Generator Differential, Overexcitation (V/Hz), Reverse Power, Loss of Field
  • Communication Interface: Fiber-Optic Bus Link / LonWorks / SPA-bus Protocol Compatibility
  • Chassis Alignment: Standard ABB 19-inch Subrack Plug-in Module Assembly
  • Condition: 100% Brand New & Original Genuine Factory Sealed Surplus
  • Country of Origin: Switzerland / Sweden
Get a Quote
Category: SKU: REG216 Tags: Brand:
  • Need Help?
  • +86 13313703791
  • +86 13313703791
  • seren@ymgkplc.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

1. Product Overview

The ABB REG216 is a highly advanced, mission-critical Numerical Generator and Transformer Protection System Module designed exclusively for high-capacity power generation stations and utility substations. Acting as the computational brain inside the modular REG216 protection rack, this board handles high-speed analog signal sampling from current and voltage transformers (CTs/VTs). It executes complex numerical algorithms to safeguard generators, unit transformers, and step-up transformers against internal electrical faults and grid disturbances.

Engineered with dual redundant 32-bit microprocessors, the ABB REG216 guarantees deterministic protection tripping times without signal distortion. The system incorporates comprehensive real-time self-monitoring functions that continuously verify internal memory, A/D converters, and DC power rails. Its modular architecture allows flexible parameter configuration via PC-based software, while galvanically isolated fiber-optic communications insulate the protection logic from harsh high-voltage substation electromagnetic interference (EMI).

Key Applications:

  • Hydroelectric & Thermal Power Plants: Complete generator protection against stator phase-to-phase and phase-to-ground short circuits.
  • Nuclear Power Generation: High-integrity reverse power and loss-of-excitation monitoring for ultra-large turbine-generators.
  • Industrial Cogeneration Units: Providing rapid grid-decoupling and generator differential protection in large petrochemical plants.
  • Large Power Step-Up Transformers: Detecting inter-turn short circuits and magnetizing inrush conditions without false trips.



2. Technical Features

Feature Technical Specification
Product Model String ABB Protection System Reference REG216
Subsystem Function Microprocessor-based differential, overcurrent, and impedance measurement
Backplane Connector High-density multi-pin DIN standard edge connector with gold-plated contacts
Front Diagnostic Panel Multifunction LED display tracking System OK, Alarm, Trip, and Fault Channel
Transient Surge Protection Onboard varistors and isolation transformers protecting against high-voltage substation switching surges
Conformal Coating Heavy-duty protective coating safeguarding components against ambient humidity and air contaminants
Self-Checking Routine Automated internal memory and hardware execution checks running every few milliseconds
Connection Topology Precision alignment guide rails ensuring tight mechanical locking in 19-inch racks



3. Commercial Procurement Protocol

  1. Protection Rack Compatibility Audit: Our application engineering team cross-checks your current REG216 rack layout and software version to ensure immediate firmware and hardware pairing with the replacement module.
  2. Itemized Quote Engineering: Access definitive, transparent pricing matrices detailing enterprise tiered discounts, active physical stock levels, and global shipping parameters.
  3. Global Trade Verification: Rapid routing through standard export control compliance filters checking ECCN classifications, dual-use industrial asset laws, and destination regulations.
  4. Proforma Invoice Transmission: Detailed corporate Proforma Invoices (PI) are delivered within hours to satisfy internal procurement audits and accelerate capital approval.
  5. Secure Financial Settlement: Financial transaction processing handled safely via secure global Telegraphic Transfer (T/T wire channels).
  6. Pre-Dispatch Hardware Audit: Physical manual inspection to verify pristine edge connectors, unbent backplane contacts, and recording the factory serialization parameters.
  7. Heavy-Duty Export Cushioning: Vacuum-sealed inside certified anti-static (ESD) foil barriers and surrounded by custom-cut high-density shock foam inside extra-strength outer boxes.
  8. Express Courier Dispatch: Sourced items are immediately handed over to premium air freight couriers (DHL Express, FedEx, UPS) with live tracking coordinates.



4. Visual Product Showcase

  • [Product Photo 1]: Full orthographic view of the ABB REG216 module, highlighting the front faceplate handles, LED status indicators, and mounting hardware.

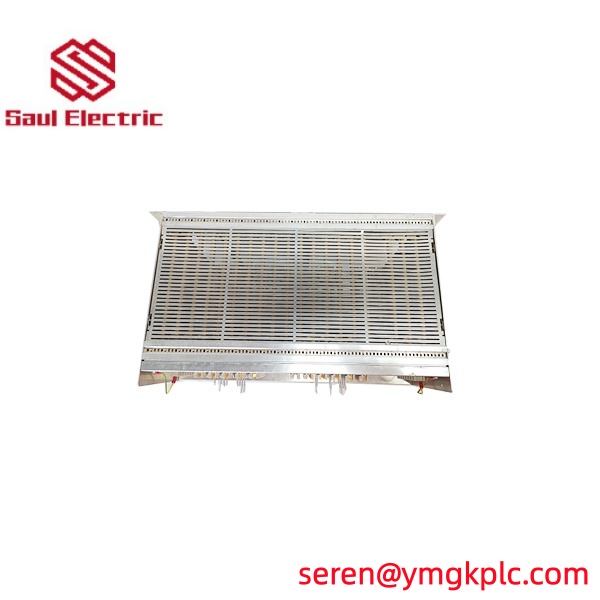

  • [Product Photo 2]: Detailed side perspective focusing on the multi-layered circuit board, showcasing pristine surface-mount components, processing chips, and backplane pin array.

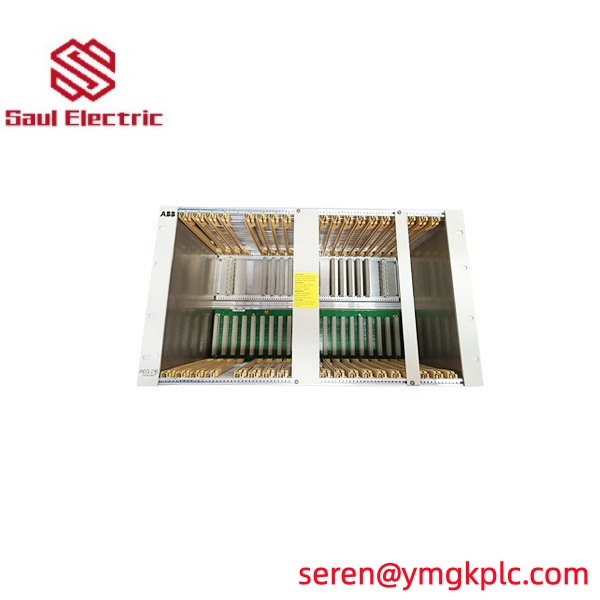

  • [Product Photo 3]: Macro image focused on the factory white tracking plate displaying the exact ABB serial strings and model designation REG216.

5. Related Fleet Spares Systems

  • ABB REG216-A / REG216-B Subracks (Complete 19-inch rack enclosures and backplanes)
  • ABB REB216 Series (Busbar Protection Modules)
  • ABB RET216 Series (Dedicated Transformer Protection Modules)



6. Warranty Protection & Continuous Supply Assurances

  • Extended 12-Month Supplier Warranty: Comprehensive 1-year swap-out or repair warranty shielding your operation against component or processing defects under normal use.
  • Authenticity Guarantee: We supply only authentic, original factory-branded parts to protect the structural specifications of your plant panels.
  • Consistent Logistics Tracking: Provision of automated shipping notification routes and complete customs declaration sheets for reliable delivery.



7. FAQ

Q: Can this REG216 module be replaced without powering down the entire protection rack?

While the REG216 subrack utilizes modular plug-in cards, we strongly advise placing the relevant generator protection trip outputs in TEST/BYPASS mode before pulling or inserting any board. Hot-swapping protection processing boards can cause transient voltage fluctuations or trigger unintended trip output signals to the main circuit breaker.

Q: What is required to upload parameter settings into a newly installed REG216 board?

The ABB REG216 stores its active protection curves, pick-up thresholds, and logic schemes in non-volatile memory. Upon installing a replacement module, settings can be transferred directly from your archive backup file using ABB’s dedicated CAP580 / HMI programming utility via the front panel interface or substation communication port.

Q: How does this legacy REG216 module handle aging component degradation?

All of our unused surplus ABB REG216 inventory undergoes strict environmental storage control. Components like capacitors and microprocessors are stored in climate-controlled, low-humidity environments inside vacuum static barriers, ensuring the board operates with zero dielectric leakage or drift upon field installation.
