ABB PU516 3BSE013064R1 | PCI Communication Interface

Description

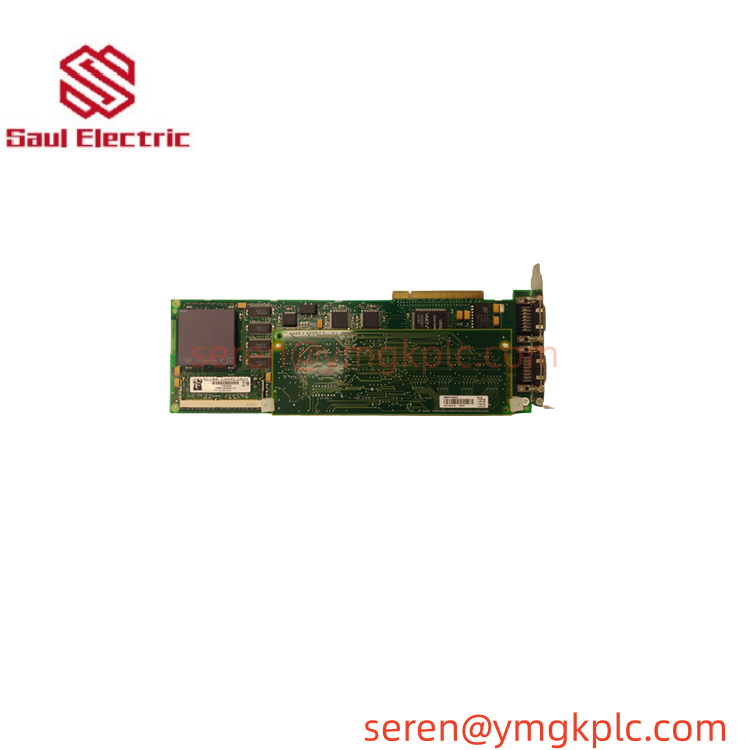

ABB identifies the PU516 as an Engineering Board – PCI, with one MB300 port and one RS-232 port for a 5 V, 32-bit, 33 MHz PCI bus. The board includes 16 MB of memory and is associated with ABB Advant OCS engineering systems.

3. Key Technical Specifications

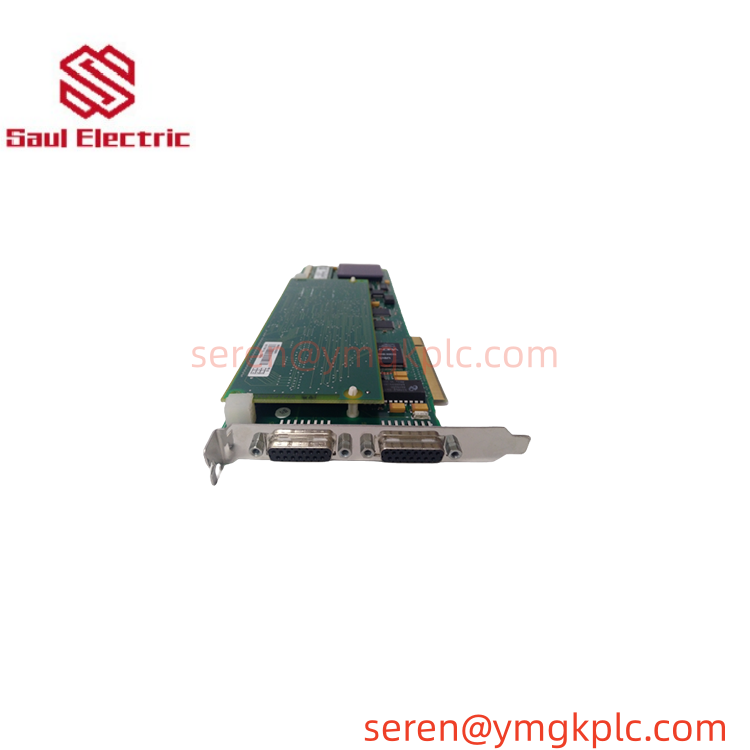

The documented hardware specification is quite specific: one MB300 port, one RS-232 port, a 5 V 32-bit 33 MHz PCI bus, and 16 MB memory. The published physical dimensions are approximately 324 × 126 × 18 mm, with a net weight around 0.38 kg.

The PU516 is also listed as an obsolete product, with PU516A 3BSE032402R1 identified by one technical source as its replacement. That does not mean the newer board should be substituted automatically; the installed Advant OCS engineering-station configuration must be checked first.

4. Product Introduction (Anti-Template)

When an older ABB Advant OCS engineering station needs to maintain communication with the control network, the PU516 serves as the dedicated PCI engineering interface. It provides one MB300 connection and one RS-232 connection while using the host computer’s 5 V, 32-bit, 33 MHz PCI bus. The board includes 16 MB of memory and is intended for engineering, configuration, diagnostic, and maintenance functions rather than direct field I/O.

This is legacy computer-interface hardware, and that changes the replacement procedure. The physical PCI fit is only the first check. The host engineering station, operating environment, MB300 connection, and installed software must also be compatible. A newer-looking PCI card is not automatically a valid substitute—honestly, checking the engineering station model first can save a lot of unnecessary troubleshooting.

5. QC, Procurement & Logistics SOP

1. Inbound Verification
   The incoming unit is checked against PU516 / 3BSE013064R1, including the ABB product label, revision marking, PCB condition, connector arrangement, and physical dimensions. Because PU516 is a legacy part, the full ordering number should be recorded rather than relying only on the short model designation.
2. Live Rig Testing
   When a compatible ABB engineering-station test environment is available, the board can be installed in a suitable PCI system for controlled testing. PCI recognition, MB300 communication, RS-232 communication, memory detection, and board-level diagnostics should be checked where applicable. A simple power-on test does not prove communication compatibility.
3. QA & Anti-Static Packaging

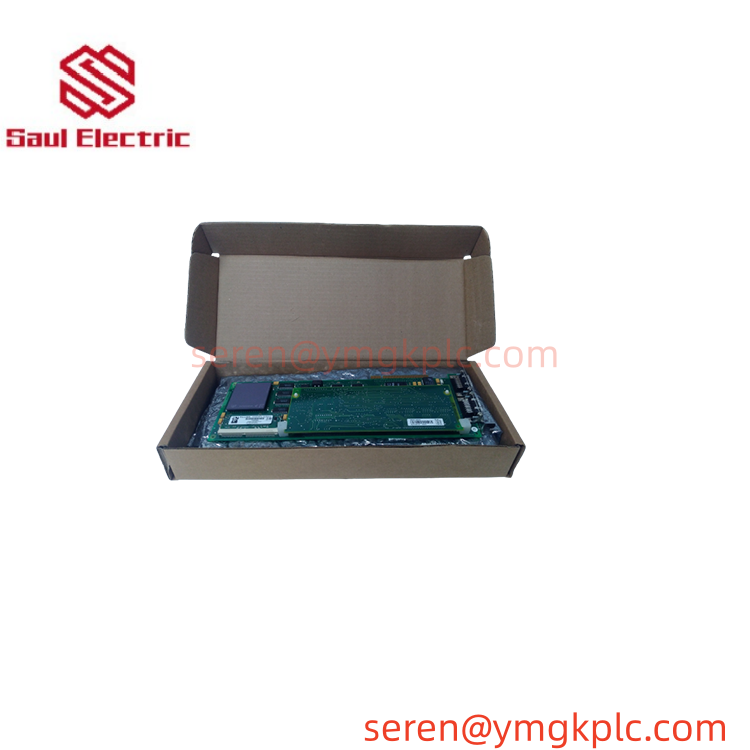

   The board is handled using ESD precautions and placed in suitable anti-static packaging. The PCI edge connector and communication connectors are protected from direct contact and mechanical shock. The board should be immobilized inside the export carton so vibration does not stress the connector or PCB.
4. Global Logistics & Export Compliance
   Export documents should identify the product as an ABB PU516 Engineering Board – PCI, part number 3BSE013064R1. A published classification for this part is HS 85389091, but the final HS code should be confirmed against the destination country’s tariff rules and the actual import declaration.

   For an urgent engineering-station replacement, air freight is normally the practical option. Consolidated sea freight can be considered when delivery time is less critical. Anti-static protection, shock cushioning, and moisture protection should remain in place throughout the shipment.

6. Technical Pitfalls & Integration Warnings

1. Firmware / Driver Revision Mismatch
   The PU516 is installed inside an engineering computer, so the board driver and engineering software environment matter. A replacement board may be electrically functional but still fail to communicate if the host system software does not support the installed hardware revision.
2. PCI Configuration Errors
   Do not assume that any available PCI slot will provide a valid installation. The host computer’s PCI architecture, 5 V requirement, BIOS configuration, interrupt allocation, and installed engineering software should be checked. The documented PU516 specification is specifically for a 5 V, 32-bit, 33 MHz PCI bus.
3. Wiring / Communication Incompatibility
   The board has one MB300 port and one RS-232 port. The connected cable, port assignment, and communication configuration must correspond to the existing engineering station. If the MB300 connection is wrong, the board may appear healthy while the engineering station cannot communicate with the control system.
4. ESD During Unboxing
   The PCI edge connector and onboard electronics are susceptible to electrostatic damage. Keep the board inside its anti-static packaging until the engineering PC is powered down, grounded, and ready for installation. Avoid touching the gold-plated PCI contacts.

7. Frequently Asked Questions (FAQ)

Q1: “What is ABB PU516 actually used for?”

PU516 is an ABB engineering board designed for PCI-based engineering stations. It provides one MB300 interface and one RS-232 interface for communication with ABB Advant OCS control systems.

Q2: Is PU516 a PLC processor module?

No. It is an engineering board / PCI communication interface, not a standalone PLC CPU or field I/O module. Its primary role is to provide communication between the engineering computer and the ABB control environment.

Q3: “Does PU516 use a standard PCI interface?”

It uses a 5 V, 32-bit, 33 MHz PCI bus. The host engineering computer therefore needs to support the required PCI electrical and mechanical configuration.

Q4: Can PU516 be replaced by PU516A?

PU516A 3BSE032402R1 is identified as a replacement for the discontinued PU516 by one technical reference. However, it should not be treated as an automatic drop-in replacement. Check the engineering station hardware, software environment, MB300 configuration, and system revision first.

Q5: Can I replace the PU516 while the engineering station is running?

No. Do not remove a PCI board from an energized computer. Shut down the engineering station properly, disconnect power as required, and follow the site’s maintenance procedure before removing the board.

Q6: “What is the approximate shipping weight?”

The documented net weight is approximately 0.38 kg. For international freight, allow additional weight for anti-static packaging, cushioning, the carton, and documentation.

Q7: What information should I provide before ordering a replacement?

For a legacy ABB engineering system, provide:

• Existing PU516 nameplate photo
• Full part number and revision
• Engineering station model
• Operating system and engineering software version
• MB300 connection details
• Current cable/connector arrangement
• Quantity required
• Destination country
• Required delivery date

The engineering station model is especially important. It helps determine whether the PU516 is the correct board for the existing computer and whether a later replacement should be considered.
