Description
Product Core Brief

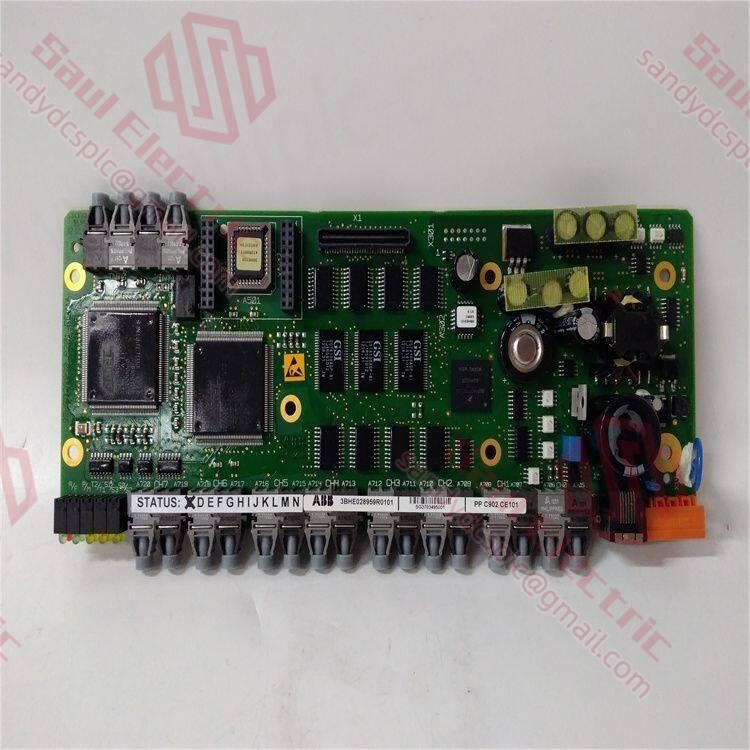

- Model: ABB PPC902CE101 (3BHE028959R0101)
- Brand: ABB (Sweden)
- Series: ABB Industrial Control System / UNITROL Compatible Series
- Core Function: Digital I/O expansion and communication control module for industrial automation. Condition: New Surplus, not refurbished.
- Type: Controller Module / Digital Expansion Module
- Key Specs: 24 V DC Input | Multiple I/O Channels | Modbus/Profibus/Ethernet Protocols ⚠️ Obsolete model, limited stock available.
Product Introduction
The ABB PPC902CE101 is a digital I/O expansion and controller module designed for industrial automation and excitation control systems. This unit handles signal processing, communication interfacing, and control logic for ABB-compatible DCS and PLC installations.As a legacy component, the PPC902CE101 maintains operational continuity in existing facilities where system upgrades would require extensive reengineering. Plants running older ABB control systems in power generation, petroleum, and manufacturing benefit from direct replacement capability. Market availability continues to shrink, making early procurement planning essential for maintenance teams managing critical infrastructure with minimal downtime tolerance.
Key Technical Specifications
| Parameter Name | Specification Value |
|---|---|
| Model Number | PPC902CE101 / 3BHE028959R0101 |
| Input Voltage | 24 V DC ±10% |
| I/O Channels | Multiple Digital Input/Output |
| Communication Protocol | Modbus RTU, Profibus DP, Ethernet/IP |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail or Panel Mount |
| Certifications | CE, UL (subject to verification) |
| Weight | Approximately 1.8 kg |
| Dimensions | 220 mm × 150 mm × 75 mm |
Note: Some specifications require confirmation against original ABB documentation. Firmware version varies by production batch.
Recommended Spares & Stocking Advice
| Spare Part Name | Model | Recommended Qty | Purchasing Notes | Est. Lead Time |
|---|---|---|---|---|
| Controller Module | PPC902CE101 | 1-2 units | Critical A-class component. Keep as buffer stock for emergency replacement. | 8-14 weeks |
| Control Board Fuse | ABB Standard Fuse Kit | 5 units | Consumable wear part. High turnover during fault conditions. | 2-4 weeks |
| Cooling Fan Assembly | ABB Fan Kit | 2 units | Preventive maintenance item. Replace every 3-5 years. | 4-6 weeks |
| Communication Cable | Profibus/Modbus/Ethernet Cable | 3 units | Keep spare lengths for quick swap during communication failures. | 1-2 weeks |
| Terminal Block Set | ABB Terminal Kit | 2 sets | Connector wear occurs during repeated maintenance cycles. | 2-3 weeks |
Inventory Strategy Notes:For the PPC902CE101, I classify this as an A-class critical spare. In my experience, control module failures in excitation or DCS systems can halt entire production lines. The carrying cost of holding 1-2 units on-site is negligible compared to potential downtime losses exceeding $50,000 per hour in some facilities. This is your insurance policy.Given the obsolescence signals in the market, consider a last-time-buy strategy if you operate multiple ABB-compatible systems across your plant network. Vendor consolidation matters here—partner with one verified surplus supplier who can provide test documentation and authenticity verification with serial number traceability.For fast-moving consumables like fuses and cables, JIT replenishment from reliable suppliers works well. These items have low unit cost and short lead times, so don’t tie up capital in excess stock. Consignment inventory arrangements with vendors can further reduce carrying costs.
Quality Control & Inspection Process
Inbound Inspection:
- Verify traceability against original packing list and customs declarations
- Check serial number authenticity and anti-counterfeit labels
- Visual inspection: no corrosion, scratches, repair marks, or yellowing on housing
- Confirm accessories included: manuals, warranty cards, factory certificates
Live Functional Testing:
- Test environment: Dedicated control module test rack with ABB-compatible simulation system
- Power-on self-test: LED indicators, startup sequences verified
- Communication test: Modbus RTU, Profibus DP, and Ethernet/IP handshakes confirmed
- I/O test: Full range simulation of digital input/output signals
- Load test: Continuous operation over 24 hours with temperature monitoring
- Test records: Formal Test Report generated for each unit
Electrical Parameter Testing:
- Insulation resistance test: 500 V megohmmeter, reading above 10 MΩ
- Ground continuity test verified
- Withstand voltage test performed where applicable
Firmware/Program Verification:
- Firmware version read and recorded (varies by production batch)
- Configuration backup: DIP switch and jumper settings photographed
- Multiple firmware versions may exist—specify acceptable range when ordering
Final QC & Packaging:
- Inspector signature confirmation on test documentation
- Anti-static bag sealing applied
- Bubble wrap plus carton packaging for shipment
- QC Passed label attached with inspection date
We can provide test videos and photos for customer review before shipment. All units pass the above tests to ensure proper functionality.
Technical Pitfall Guide: Field Installation Warnings
1. Firmware Revision Mismatch ❗Issue: New module firmware version differs from existing system, causing communication timeouts or control logic errors.Avoidance: Record the old module’s firmware version before replacement (check label or read via software). Specify acceptable firmware range when purchasing. If mismatch occurs, contact supplier to flash or downgrade firmware.Real case: I saw a refinery where an engineer swapped a controller, and the DCS kept reporting “Node Not Responding.” It took four days to realize the firmware bumped from V2.6 to V3.2, causing a protocol handshake failure with the existing network configuration.2. DIP Switch / Jumper Configuration Errors ❗Issue: Factory default settings don’t match site requirements for address, baud rate, or terminating resistors.Avoidance: Take a photo of the old module’s DIP switches and jumpers before swapping. Verify and replicate configuration on the new module before powering up. Bus terminating resistors (120 Ω) must only be at the two ends of the bus.This is a rookie mistake, but it happens all the time. Take a picture! Take a picture! Take a picture! Important things are worth repeating.3. Terminal / Cable Incompatibility ❗Issue: Interfaces on new and old modules aren’t identical—pinout changes or different connector types.Avoidance: Check the Wiring Diagram in advance. Prepare adapter terminals or be ready to recrimp. Note shield grounding methods (single-ended vs. double-ended).With some ABB control modules, even if the models look similar, the pinouts might differ between production batches. Always check the manual; don’t just guess.4. Power Supply Spec Differences ❗Issue: New module draws more power, and existing supply capacity is insufficient.Avoidance: Calculate total rack power consumption and leave a 20% margin. If nearing the limit, consider adding a supplementary power module.For example, if you mount multiple I/O modules on one rack, the total load could exceed your 24 V supply capacity. A single PPC902CE101 draws approximately 8 W, but a full rack with 10 modules could hit 80 W or more.5. Electrostatic Discharge (ESD) ❗Issue: Module damaged by static electricity due to lack of ESD precautions.Avoidance: Wear an anti-static wrist strap. Work on an anti-static mat. Be especially careful in dry winter conditions.I watched an engineer touch a module without a strap in a dry control room. The moment it powered on, it smoked. That was $4,000 down the drain. ESD damage isn’t always immediately visible either—some failures show up weeks later.
