Description

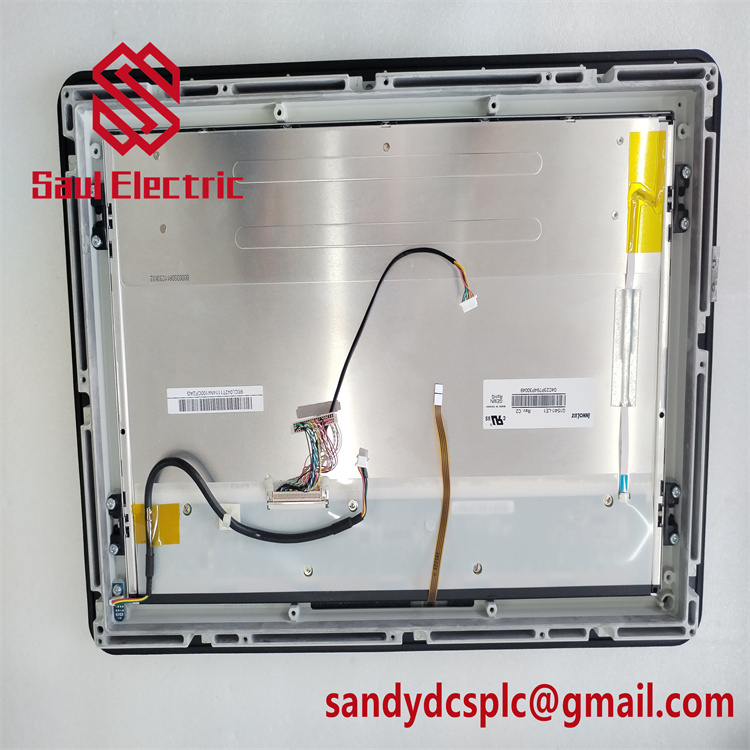

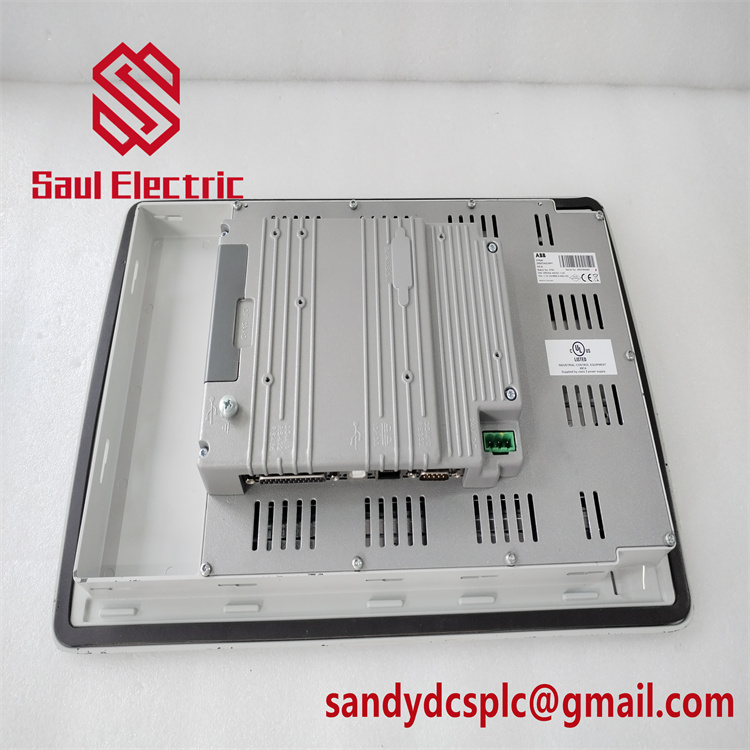

The ABB PP886 3BSE092980R1 is a 15.4-inch industrial HMI panel designed for advanced automation systems, offering robust performance and connectivity. Below is a detailed analysis based on verified specifications and application insights:
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB PP886 3BSE092980R1 |
| Manufacturer | ABB |
| Product Type | Industrial HMI Panel (Panel 800 Series) |
| Display | 15.4-inch TFT-LCD with 1280 × 800 resolution (LED backlight, 50,000-hour lifespan) |
| Touch Technology | Resistive touchscreen (finger/stylus input, 1 million touch operations) |
| Processor | ARM9 1 GHz embedded processor |
| Memory | 1 GB DDR3 RAM (for runtime operations) |
| Storage | 2 GB SSD (1.5 GB available for applications) + microSD card slot |
| Communication Interfaces | 2 × 10/100 Ethernet (RJ45), 2 × USB 2.0, 1 × RS232, 1 × RS422/485, 1 × RS485 |
| Power Supply | 24 V DC (18–32 V DC wide-range input, 31.2 W typical consumption) |
| Operating Temperature | -10°C to +60°C (standard), -20°C to +70°C storage temperature |
| Safety Certification | CE, UL (UL 61010-2-201), CSA, IP65 front panel protection |
| Vibration Resistance | 1 g (IEC 60068-2-6) |
| Dimensions | 410 mm × 286 mm × 61 mm (front panel), mounting depth 53 mm |
| Weight | 3.85 kg |
| Protocol Support | Modbus RTU, Profibus DP, Ethernet/IP, OPC UA, ABB Symphony Plus integration |
Key Features and Advantages
-
High-Resolution Visualization:
The 15.4-inch TFT-LCD display with 1280 × 800 resolution ensures clear visibility of complex process data, while the LED backlight provides consistent performance in low-light conditions. The resistive touchscreen supports gloved operation and stylus input, critical for harsh industrial environments . -
Rugged Industrial Design:
The die-cast aluminum housing with IP65 front panel protection withstands dust, water, and high vibrations. Its extended operating temperature range (-10°C to +60°C) and conformal coating for moisture resistance make it suitable for outdoor or extreme industrial settings . -
Expanded Connectivity:
With dual Ethernet ports, two USB 2.0 ports, and multiple serial ports, the PP886 integrates seamlessly with ABB’s AC800M controllers and third-party PLCs. It supports OPC UA for secure data exchange with cloud-based systems, enabling Industry 4.0 applications . -
Scalable Configuration:
Configurable via ABB’s Panel Builder 6.2 software (compatible with Windows 7/10), the PP886 supports up to 4,000 tags and 4,000 alarm items. Its modular design allows phased expansions with additional I/O modules, ideal for large-scale automation systems . -
Open Platform Architecture:
Built on an open architecture, the PP886 supports multi-brand controller connectivity and offers extensive communication options for local/remote access. It includes pre-built templates and libraries for rapid application development, reducing engineering time . -
Cost-Effective Performance:
Priced at $15,929–$27,954 (global market), the PP886 balances high-end performance with affordability. It is optimized for applications requiring advanced visualization and connectivity without the complexity of full-scale HMIs .
Application Areas
- Manufacturing:
Monitoring conveyor systems, robotics, and quality control stations in discrete manufacturing. - Energy Management:
Supervising solar farms, wind turbines, and microgrid components with real-time data analytics. - Water/Wastewater:
Controlling large-scale pump stations, filtration units, and chemical dosing systems in centralized treatment plants. - Marine/Offshore:
Managing navigation systems, engine control, and environmental monitoring in maritime applications (rugged variant available) .
Installation and Compatibility
- Mounting:
Panel-mount design with cutout dimensions of 394 mm × 270 mm. Supports VESA 75 × 75 mounting for wall or DIN rail installation . - Wiring:
Requires 24 V DC power and shielded cables for RS-422/USB connections. Redundant power inputs are available for critical applications. - Software Integration:
Configured using Panel Builder 6.2, which includes pre-built templates for alarm management, trending, and user access control. Supports integration with ABB’s 800xA System via OPC UA for advanced data analytics . - Compatibility:
Works with ABB’s S800 I/O modules and third-party devices via protocol gateways. Hot-swappable components simplify maintenance without system downtime.
Product Assurance
- Warranty: 1–2 years (ABB standard), 365 days for replacement parts from third-party suppliers .
- Support: ABB’s global service network provides 24/7 technical assistance, firmware updates, and spare parts availability.
- Delivery: Typically ships within 2–5 business days from stock (China suppliers), 5–10 days for U.S. distributors .
Pricing and Availability
- Unit Price: $15,929–$27,954 (global market).
- Redundant Kit: Includes dual panels and cables, priced at ~¥18,000.
- Lead Time: 2–3 days for in-stock items; 4–6 weeks for custom configurations.
Comparison with Related Models
| Model | Key Difference |
|---|---|
| PP885 | 15.4-inch display, Intel Atom E3815 1.46 GHz processor, higher power consumption (12 W) |
| PP886R | Ruggedized variant with IP66/NEMA 4X certification, certified for hazardous environments |
| PP882 | 12.1-inch display, Intel Atom 1.1 GHz processor |
| PP877 | 10.4-inch display, lower resolution (640 × 480), ARM9 processor |
Product Documentation
- User Manual: Covers installation, configuration, and troubleshooting (Document ID: 3BSE069462-600 Rev D) .
- Datasheet: Technical specifications and environmental ratings (Document ID: 3BSE092980R1) .
- Application Notes: Guides for integrating with 800xA and Symphony Plus systems.
HS:7326909000
