Brand Model: ABB PP865A 3BSE042236R2
Product Name: Industrial HMI Panel
Origin: Sweden
Inventory: In stock
Delivery Time: 2–7 days after payment

Get a Quote
Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

The ABB PP865A 3BSE042236R2 is a 15-inch industrial HMI panel designed for advanced automation systems, offering high-resolution visualization and robust connectivity. As part of ABB’s Panel 800 Series, it combines intuitive operation with rugged durability, making it suitable for demanding industrial environments. Below is a detailed analysis based on verified specifications and application insights:

Technical Specifications

Parameter Name Parameter Value
Product Model ABB PP865A 3BSE042236R2
Manufacturer ABB
Product Type Industrial HMI Panel (Panel 800 Series)
Display 15-inch TFT-LCD with 1024 × 768 resolution (CCFL backlight, 35,000-hour lifespan)
Touch Technology Resistive touchscreen (finger/stylus input, 1 million touch operations)
Processor Embedded 32-bit RISC processor (similar to Intel Atom N270 in PP836A variant)
Memory 64 MB DRAM (for runtime operations)

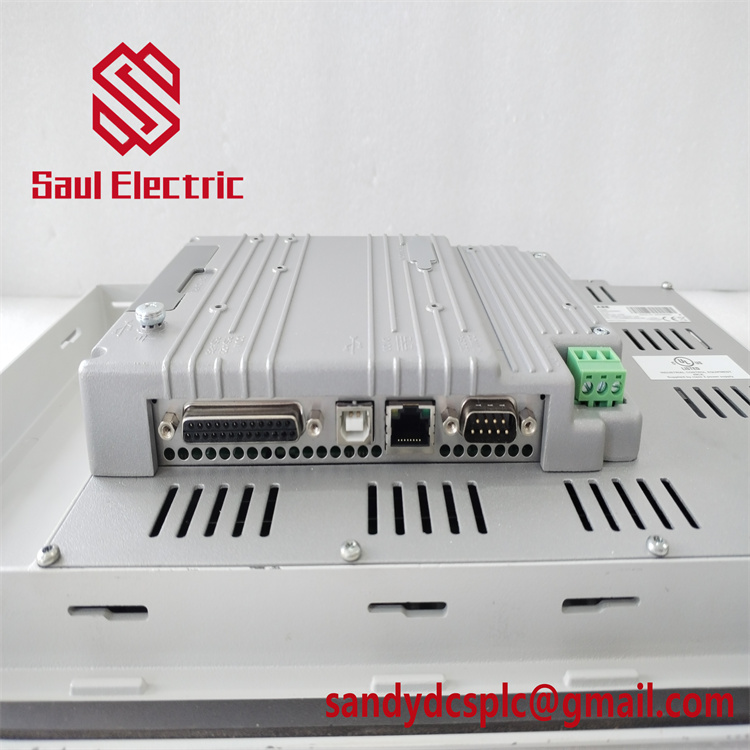

Communication Interfaces 1 × RS-232, 1 × RS-422/485 serial ports, 1 × USB 2.0 (for diagnostics/configurations)
Power Supply 24 V DC (19.2–30 V DC wide-range input, 5 W typical consumption)
Operating Temperature 0°C to +50°C (standard), -20°C to +70°C storage temperature
Safety Certification CE, UL (UL 61010-2-201), CSA (non-hazardous locations), IP66/IP65 front panel protection
Vibration Resistance 5–500 Hz, 0.2 g (IEC 60068-2-6)
Dimensions 398 mm × 304 mm × 6 mm (front panel), mounting depth 60 mm
Weight 3.7 kg
Protocol Support Modbus RTU, Profibus DP, ABB Symphony Plus integration

Key Features and Advantages

  1. Large High-Resolution Display:
    The 15-inch TFT-LCD screen provides clear visibility for complex process visualizations, with 1024 × 768 resolution and CCFL backlighting optimized for low-light conditions. The resistive touchscreen supports gloved operation and stylus input, ensuring reliability in harsh environments .
  2. Enhanced Connectivity:
    Equipped with RS-232, RS-422/485, and USB ports, the PP865A integrates seamlessly with ABB’s AC800M controllers and third-party PLCs. It supports Modbus RTU and Profibus DP for data exchange with field devices, while optional Ethernet connectivity (available in newer variants) enables integration with SCADA systems and cloud platforms .
  3. Rugged Industrial Design:
    The die-cast aluminum housing with IP66/IP65 front panel protection ensures durability in dusty, wet, or high-vibration environments. It supports extended temperature ranges (-20°C to +70°C) and conformal coating for moisture resistance, making it suitable for outdoor or industrial settings .
  4. Scalable Configuration:
    Configurable via ABB’s Panel Builder software (compatible with Windows 7/10), the PP865A supports up to 4,000 tags and 500 alarm items. Its modular design allows phased expansions with additional I/O modules, ideal for small to medium-sized automation systems .
  5. Cost-Effective Performance:
    Priced at $1,000–$2,500 (global market), the PP865A balances functionality and affordability. It is optimized for applications requiring reliable local control without the complexity of full-scale HMIs .

Application Areas

  • Manufacturing:
    Monitoring conveyor systems, packaging machines, and quality control stations in discrete manufacturing.
  • Energy Management:
    Supervising solar inverters, small-scale wind turbines, and microgrid components.
  • Water/Wastewater:
    Controlling pump stations, filtration units, and chemical dosing systems in decentralized treatment plants.
  • Transportation:
    Managing traffic lights, tunnel ventilation, and access control in smart city infrastructure .

Installation and Compatibility

  • Mounting:
    Panel-mount design with cutout dimensions of 356 mm × 279 mm. Supports DIN rail or wall mounting with optional brackets.
  • Wiring:
    Requires 24 V DC power and shielded cables for RS-422/USB connections. Redundant power inputs are available for critical applications.
  • Software Integration:
    Configured using Panel Builder, which includes pre-built templates for alarm management, trending, and user access control. Supports integration with ABB’s 800xA System via OPC UA for advanced data analytics .
  • Compatibility:
    Works with ABB’s S800 I/O modules and third-party devices via protocol gateways. Hot-swappable components simplify maintenance without system downtime.

Product Assurance

  • Warranty: 1–2 years (varies by supplier).
  • Support: ABB’s global service network provides 24/7 technical assistance, firmware updates, and spare parts availability.
  • Delivery: Typically ships within 2–5 business days from stock (China suppliers), 5–10 days for U.S. distributors .

Pricing and Availability

  • Unit Price: $1,000–$2,500 (global market).
  • Redundant Kit: Includes dual panels and cables, priced at ~¥6,999.
  • Lead Time: 2–3 days for in-stock items; 4–6 weeks for custom configurations.

Comparison with Related Models

Model Key Difference
PP825A 5.7-inch CSTN display, lower cost, fewer protocol options
PP836A 6.5-inch TFT display, Ethernet connectivity (3BSE042237R2)
PP846A 10.4-inch display, multi-touch support, Ethernet connectivity
PP882 15.4-inch multi-touch panel, higher processing power

Product Documentation

  • User Manual: Covers installation, configuration, and troubleshooting (Document ID: 3BSE049346R301).
  • Datasheet: Technical specifications and environmental ratings.
  • Application Notes: Guides for integrating with 800xA and Symphony Plus systems .
