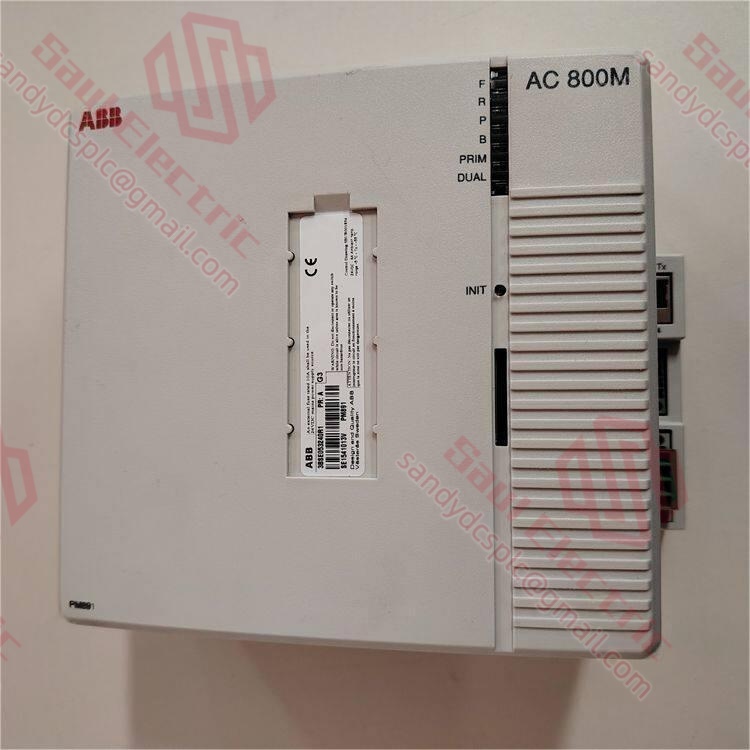

ABB PM891K01 3BSE053241R1 | Compact AC800M Controller | Cost-Optimized for Small Systems

Description

📋 Product Core Brief

• Model: ABB PM891K01 3BSE053241R1
• Brand: ABB
• Series: AC800M Compact Controller Series
• Core Function: Single-slot, non-redundant CPU for cost-sensitive small-to-medium applications (water/wastewater, packaging, HVAC). Condition: New Surplus, not refurbished.
• Type: Controller Module (CPU)
• Key Specs: ARM9 400 MHz | 128 MB SDRAM | 128 MB Flash | Dual 10/100 Ethernet | No Redundancy Support

⚙️ Key Technical Specifications

ℹ️ Product Introduction

The ABB PM891K01 3BSE053241R1 delivers a streamlined, cost-effective control solution for applications where high availability redundancy is unnecessary. Optimized for systems under 1,000 I/O points, it balances performance and budget—ideal for municipal water pumps, conveyor lines, or building management systems.Unlike the PM866 family, it operates strictly as a standalone controller. Its dual Ethernet ports enable simultaneous HMI connection and engineering access without network segmentation. While native protocol support covers Modbus variants, expansion to Profibus DP or Foundation Fieldbus requires adding ABB CI-series communication modules to the I/O bus.

🔧 Installation & Configuration Guide

(Total estimated time: 20–25 minutes)

Phase 1: Pre-Installation (8 mins)

⚠️ Critical Checks:

1. Confirm project I/O count ≤ 800 points (recommended max for stable performance).
2. Verify Control Builder M ≥ V5.0 SP2 on engineering workstation.
3. Export full project backup + hardware configuration.
4. Photograph: Service switch position (“Normal”/”Service”), cable connections, rack slot.

Phase 2: Removal & Installation (7 mins)

1. Power down entire rack. Wait 3 minutes for capacitor discharge.
2. Remove old module; inspect backplane for debris/bent pins.
3. Install PM891K01:
   • Confirm label reads 3BSE053241R1
   • Align guide pins; press until latch clicks
   • Set service switch per pre-removal photo
   • Reconnect Ethernet (ETH1 for HMI, ETH2 for engineering), serial cables
     ✅ Self-Check: Module flush? Cables secured? No tools left in rack?

Phase 3: Power-On & Validation (8–10 mins)

1. Power rack (field devices isolated initially).
2. Monitor LEDs:
   • Solid green RUN = normal
   • Flashing red ERR = firmware mismatch or configuration error
3. In Control Builder M:
   • Scan network; verify node detection
   • Confirm firmware version matches project
   • Download project (recompile if migrating from non-PM891 hardware)
4. Functional test:
   • Toggle 3–5 digital outputs; verify field response
   • Test Modbus TCP communication with HMI/SCADA
   • Log serial number in asset register
     ⚠️ Troubleshooting:

• ERR LED: Most common cause = firmware mismatch. Contact supplier for version-specific flash.
• Communication failure: Verify IP settings, subnet mask, and switch port configuration.

❓ Frequently Asked Questions

Q1: Does the PM891K01 support hot-standby redundancy?
A: No. This is a critical distinction. The PM891K01 lacks sync ports and firmware support for redundancy. For applications requiring failover capability, select PM866A-2 (3BSE081230R1) or PM866AK02 (3BSE081637R1). Attempting to force redundancy causes system instability.Q2: Can I replace a PM864 with the PM891K01?
A: Mechanically yes (same rack footprint), but:

• PM891K01 has lower scan performance (~8 ms vs. PM864’s ~5 ms at 500 I/O)
• Project must be recompiled in Control Builder M targeting PM891K01 hardware
• Verify I/O count stays within PM891K01’s practical limit (≤800 points)
  Always test in simulation mode before field deployment.

Q3: What communication modules work with PM891K01?
A: All standard AC800M CI modules:

• CI854A (Profibus DP)
• CI867 (Foundation Fieldbus H1)
• CI801 (Serial protocols)
  Install in adjacent I/O slots; configure in Control Builder M hardware tree. Ethernet ports remain dedicated to Modbus TCP/HMI traffic.

Q4: Why choose PM891K01 over PM864?
A: Cost and simplicity:

• ~25% lower acquisition cost
• Lower power draw (5.5 W vs. 8 W)
• Sufficient for non-critical processes with moderate I/O density
  Avoid if: Scan time <5 ms required, redundancy needed, or future expansion beyond 1,000 I/O planned.

Q5: How do you verify surplus unit authenticity?
A: Three-step validation:

1. Cross-check serial number against ABB database
2. Inspect factory seals, label clarity, connector condition
3. Functional test on AC800M rack: 24-hour burn-in, communication handshake, memory integrity check
   We provide test reports with firmware version, thermal images, and multimeter readings.

Q6: What’s the maximum recommended I/O count?
A: ABB specifies 1,024 I/O points theoretically, but field experience shows performance degrades beyond 800 points (scan time exceeds 15 ms). For new designs targeting >700 I/O, evaluate PM864 or PM866A-2 for headroom.Q7: Does it support OPC UA?
A: Not natively. OPC UA requires Control Builder M V6.1+ and PM866A-series hardware. For PM891K01 systems needing OPC UA, deploy a gateway (e.g., ABB CP600 panel or third-party protocol converter).
