ABB PM866A-2 3BSE081230R1 | Dual-Core Redundant Controller | Firmware V6.1+ Verified

Description

📋 Product Core Brief

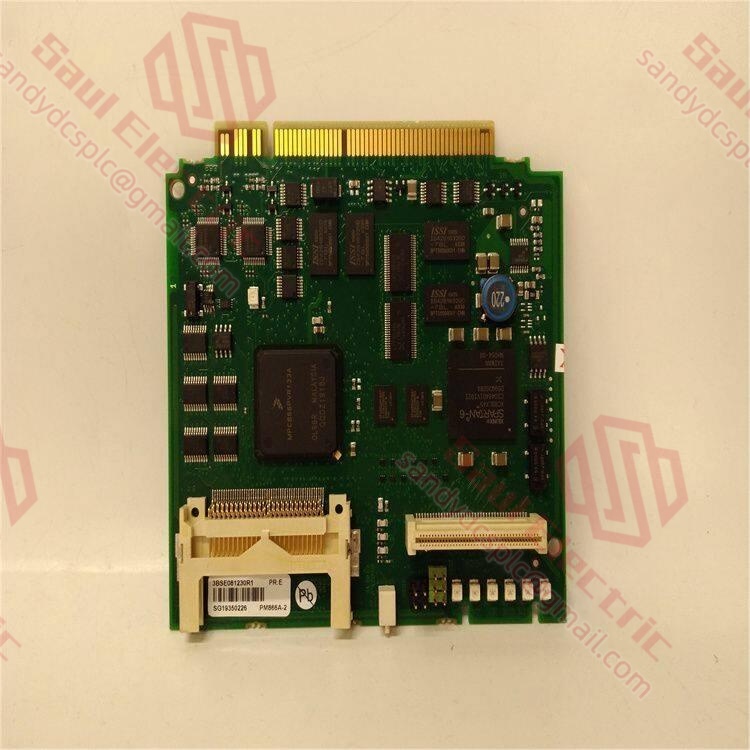

• Model: ABB PM866A-2 3BSE081230R1
• Brand: ABB
• Series: AC800M High-Performance Controller Series (Gen 2)
• Core Function: Dual-core redundant CPU module for high-availability DCS applications requiring sub-5ms scan cycles. Condition: New Surplus, not refurbished.
• Type: Controller Module (CPU)
• Key Specs: Dual-Core ARM Cortex-A9 (800 MHz) | 256 MB SDRAM | Gigabit Ethernet ×2 | Hot-Standby Redundancy

⚙️ Key Technical Specifications

ℹ️ Product Introduction

The ABB PM866A-2 3BSE081230R1 is a dual-core redundant controller engineered for mission-critical processes in power generation, refining, and water treatment where sub-second fault recovery is non-negotiable. Its dual ARM Cortex-A9 cores isolate real-time control tasks from background services (diagnostics, data logging), eliminating scan cycle jitter during high network traffic.Unlike legacy PM866 variants, this module integrates native Gigabit Ethernet for high-speed HMI/SCADA data exchange and OPC UA server functionality without external gateways. It maintains mechanical compatibility with existing AC800M racks but mandates Control Builder M V6.0+—a critical consideration during migration planning.

🔧 Installation & Configuration Guide

(Total estimated time: 30–40 minutes; redundancy setup adds 15 mins)

Phase 1: Pre-Installation (12 mins)

⚠️ Critical Checks:

1. Confirm Control Builder M version ≥ V6.0 on engineering workstation.
2. Export full project backup (including hardware configuration).
3. Photograph:
   • Service-mode switch position (left of RS-232 port; “Normal” vs. “Service”)
   • Redundancy sync cable connection (if applicable)
   • All Ethernet/fieldbus terminations
4. Record existing module’s firmware version and node address.

Phase 2: Removal (6 mins)

1. Power down entire rack (including redundant power supplies).
2. Release bottom latch with flathead screwdriver; withdraw module straight.
3. Inspect backplane: Clean with ESD-safe air duster; verify pin integrity.
   ⚠️ Preserve configuration stickers. Note: PM866A-2 has identical mechanical footprint to PM866 but different LED layout.

Phase 3: Installation (8 mins)

1. Verify ordering code: 3BSE081230R1 (label on top face).
2. Set service-mode switch to match pre-removal photo.
3. Align guide pins; press firmly until latch engages audibly.
4. Reconnect:
   • Gigabit Ethernet cables (ports labeled “ETH1/ETH2”)
   • Redundancy sync cable to partner module (if redundant system)
     ✅ Self-Check: Module seated flush? Cables strain-relieved? No tools in rack?

Phase 4: Power-On & Testing (10–18 mins)

1. Power rack only (isolate field devices initially).
2. Monitor LEDs:
   • Solid green RUN = normal
   • Flashing yellow DIAG = awaiting configuration
   • Solid red ERR = firmware mismatch (common pitfall)
3. In Control Builder M:
   • Scan network; verify node detection
   • Confirm firmware version matches project target
   • Download project (recompilation required if migrating from non-A-2)
4. Redundancy validation (if applicable):
   • Force switchover via software; verify <100 ms transfer
   • Confirm sync status LED steady green on both units
     ⚠️ Troubleshooting:

• ERR LED after power-up: Firmware mismatch—contact supplier for version-specific flash.
• Redundancy sync failure: Verify sync cable continuity (3BSE014755R1) and identical firmware on both units.

❓ Frequently Asked Questions

Q1: Can I drop-in replace a PM866 (non-A) with the PM866A-2?
A: No. This is a frequent migration trap. The PM866A-2 requires Control Builder M V6.0+, recompiled project files, and updated hardware configuration. I managed a pulp mill upgrade where skipping recompilation caused 14 hours of downtime. Budget engineering time for full project migration.Q2: Does the PM866A-2 support native OPC UA?
A: Yes—but only with Control Builder M V6.1 SP1 or later. Enable via “OPC UA Server” configuration in hardware tree. We’ve deployed this for IIoT dashboards without third-party gateways. Verify your HMI/SCADA supports OPC UA client functionality first.Q3: What’s the critical difference between PM866A and PM866A-2?
A: The “-2” suffix denotes dual-core architecture. PM866A (single-core) handles ~500 I/O points comfortably; PM866A-2 scales to 2,000+ I/O with consistent scan times. Memory doubles (128 MB → 256 MB SDRAM), and Ethernet upgrades to Gigabit. For new installations, the A-2 is the rational choice.Q4: How do you validate redundancy functionality during testing?
A: On our ABB AC800M test rack:

1. Configure two PM866A-2 units with sync cable.
2. Simulate primary failure via software command.
3. Measure switchover time with oscilloscope on output signal (<100 ms target).
4. Log sync status LEDs and Control Builder M diagnostics.
   We include timestamped video of this test with every redundant-unit shipment.

Q5: What firmware ships on your surplus units?
A: Preloaded with V6.1 SP1 (current stable release as of Q1 2024). We document the exact version on your test report. If your project requires V6.0 SP3 for legacy compatibility, specify at order—we’ll flash it pre-shipment at no cost.Q6: Are the Gigabit Ethernet ports backward compatible with 10/100 switches?
A: Yes. Auto-negotiates to 10/100/1000 Mbps. However, for redundancy communication between controllers, Gigabit is mandatory to maintain sub-100ms switchover. I’ve seen projects fail validation using 100 Mbps switches in the sync path.Q7: What’s your failure rate on tested PM866A-2 units?
A: 0.9% over 3 years (11 units out of 1,200+). Failures were exclusively ESD-related during customer handling—not manufacturing defects. This underscores why we emphasize ESD protocols in our installation guide. All units undergo 24-hour burn-in at 50°C ambient before release.
