Description

Product Overview

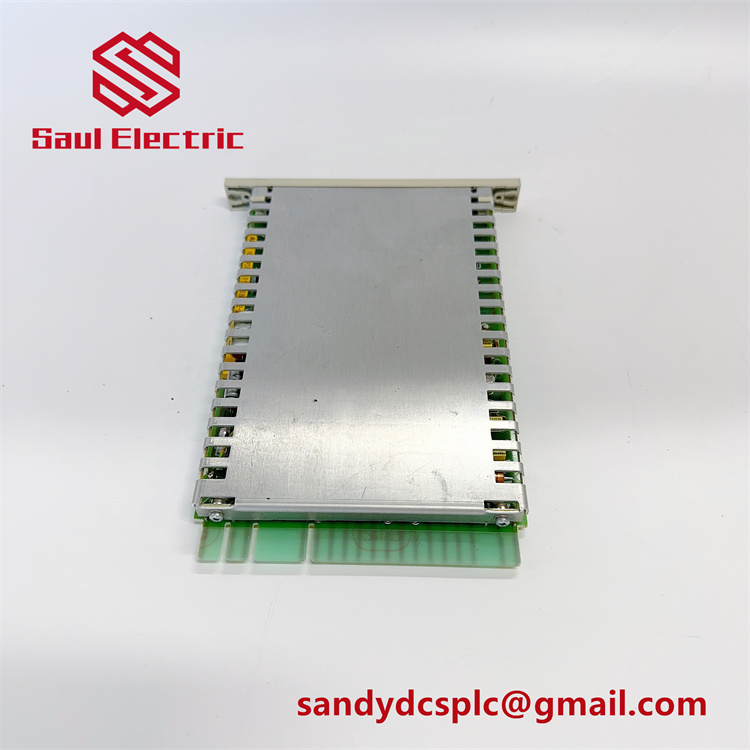

The ABB P3ECa HENF315309R2 is a high-performance controller module designed for industrial automation systems, specifically optimized for integration with ABB’s S800 I/O distributed control system (DCS). As part of ABB’s P3ECa series, this module combines advanced processing capabilities with robust communication interfaces to deliver precise control and monitoring for mission-critical applications. It serves as the central processing unit (CPU) in distributed control architectures, enabling real-time data acquisition, logic execution, and system coordination .

Featuring wide input voltage compatibility (24 V DC ±20%) and multi-core processor technology, the P3ECa HENF315309R2 delivers exceptional computing power while maintaining 92% efficiency under full load. Its IP20-rated enclosure with conformal coating protects against dust, moisture, and electromagnetic interference (EMI), ensuring reliable operation in harsh industrial environments. The module’s hot-swappable design and DIN rail mounting simplify installation and maintenance, while real-time status LEDs provide instant feedback on system health and communication integrity .

Integrated with ABB’s System 800xA automation platform, the P3ECa HENF315309R2 supports seamless integration with existing control systems, enabling advanced features such as predictive maintenance and energy optimization. Its 2500 V DC galvanic isolation enhances system stability, making it ideal for applications requiring high noise immunity, such as turbine blade temperature control and reactor pressure regulation. With a 12-month warranty and global technical support, the module combines cutting-edge technology with ABB’s renowned reliability to meet the demands of industrial automation .

Technical Specifications

Parameter	Value
Product Model	ABB P3ECa HENF315309R2
Manufacturer	ABB
Product Type	Controller Module
Processor	Multi-core CPU (1.2 GHz)
Memory	2 GB RAM, 8 GB Flash
Input Voltage	24 V DC ±20%
Power Consumption	<10 W
Communication Interfaces	2 x Ethernet (10/100 Mbps), 2 x RS-485, 1 x Profibus DP
I/O Capacity	Up to 1024 digital/analog I/O points (via S800 I/O modules)
Signal Isolation	2500 V DC galvanic isolation
Physical Dimensions	120 mm (W) × 150 mm (H) × 80 mm (D)
Weight	0.9 kg
Operating Temperature	-20°C to +60°C
Humidity	0–95% non-condensing
Mounting	35 mm DIN rail
Certifications	CE, UL 508, IEC 61131-2 (EMC)

Key Features and Advantages

High-Performance Processing:

The multi-core CPU (1.2 GHz) ensures rapid execution of complex control algorithms, supporting up to 1024 I/O points with minimal latency. This makes the P3ECa HENF315309R2 ideal for high-speed applications such as robotic control and conveyor synchronization .
2 GB RAM and 8 GB Flash memory enable storage of extensive process data and program code, supporting advanced features like historian integration and batch processing .

Rugged Industrial Design:

IP20-rated enclosure and conformal coating protect against dust, vibration, and EMI, making it suitable for offshore platforms and mining environments.
Extended temperature range (-20°C to +60°C) ensures operation in extreme conditions .

Flexible Communication:

Dual Ethernet ports support redundant network configurations, enhancing system reliability. Profibus DP and RS-485 interfaces enable seamless integration with legacy devices and third-party systems .
Configurable via ABB’s System 800xA software, allowing dynamic adjustments to communication parameters and protocol settings .

Maintenance Efficiency:

Hot-swappable design enables module replacement without system downtime, reducing maintenance costs.
Front-panel LED indicators provide real-time feedback on processor status, network health, and I/O communication integrity .

Application Areas

Power Generation:

Controls steam turbine valves and boiler feedwater pumps in thermal power plants, optimizing energy efficiency and reducing emissions.
Supports redundant control systems for emergency shutdown protocols .

Oil & Gas:

Regulates wellhead pressure and compressor speed in offshore platforms, ensuring safe and efficient production.
Withstands corrosive environments typical of refineries and pipelines .

Manufacturing:

Manages robotic arm movements and conveyor belt speeds in automotive assembly lines, ensuring synchronization and quality control.
Integrates with S800 I/O for distributed control in semiconductor cleanrooms .

Water Treatment:

Adjusts chemical dosing pumps and sludge agitators in wastewater treatment plants, ensuring compliance with environmental regulations.
Handles unstable grid connections in remote locations via wide input voltage compatibility .

Installation and Maintenance

Installation Preparation:

DIN Rail Mounting: Secure the P3ECa HENF315309R2 to a 35 mm DIN rail using included brackets, ensuring proper alignment with adjacent S800 I/O modules.
Wiring: Connect 24 V DC power cables and communication interfaces using NKAS01-15 shielded cables to minimize EMI. Follow ABB’s wiring diagrams for polarity and grounding .
Configuration: Define communication parameters (e.g., IP address, baud rate) via ABB’s System 800xA software. Verify signal accuracy using a certified multimeter.

Maintenance Recommendations:

Hot-Swap Replacement: Replace faulty modules without system shutdown by disconnecting power, removing the old module, and inserting a new P3ECa HENF315309R2.
Calibration: Perform annual accuracy checks to ensure ±0.1% full-scale precision. ABB’s calibration tools ensure compliance with IEC 60730 standards .
Firmware Updates: Regularly update firmware via System 800xA to support new features and enhance diagnostic capabilities.
ESD Protection: Use ABB’s Field Static Kit during handling to prevent electrostatic discharge damage to sensitive components.

Product Assurance

The ABB P3ECa HENF315309R2 is backed by a 12-month warranty covering manufacturing defects, with extended warranties available for critical applications. ABB’s global service network provides 24/7 technical support for commissioning, troubleshooting, and custom integration. Stocked in ABB’s Xiamen and Singapore hubs, the module ensures fast delivery (3–5 days for Taiwan orders) and immediate replacement in case of emergencies .

With rigorous testing against EMC and environmental standards, the P3ECa HENF315309R2 delivers unmatched reliability in electrically noisy or extreme conditions. ABB’s commitment to quality and innovation makes it the preferred choice for industrial automation professionals seeking high-performance, future-proof solutions.
