Description

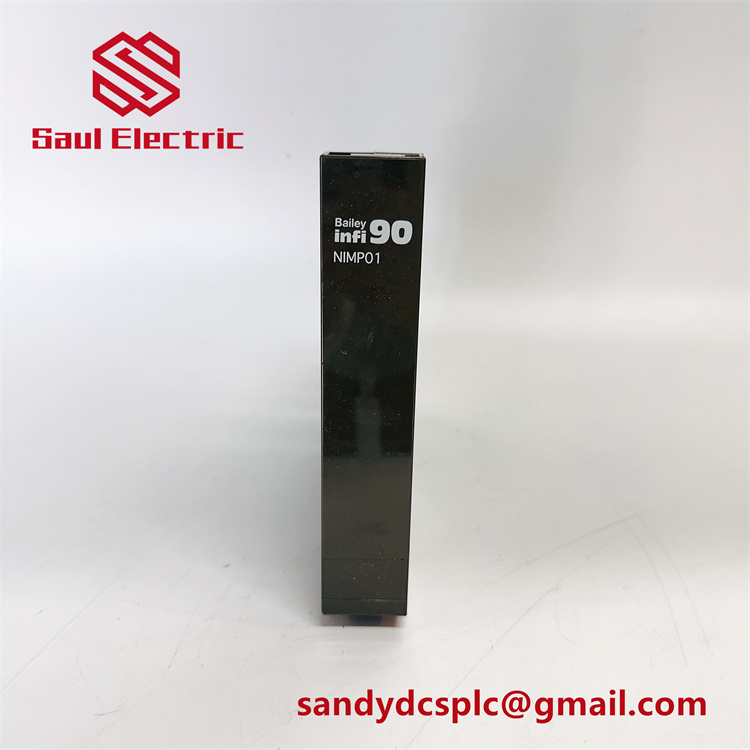

ABB NIMP01 Multi-Function Processor Termination Module



The ABB NIMP01 is a high-performance multi-function processor termination module designed for industrial automation systems, particularly within ABB’s INFI 90 distributed control system (DCS). Serving as a critical interface and termination point, it enables seamless integration of field devices, communication protocols, and control logic in harsh industrial environments.

Key Features and Technical Specifications

  1. Core Functionality:
    • Termination & Interface: Provides connectivity for multi-function processors (MFPs), INFI-NET communication modules, and field devices. Supports two isolated RS-232-C ports, one of which can be configured as an RS-485 port for flexible serial communication 7.
    • Signal Handling: Manages analog/digital I/O signals, including 8 analog inputs (0-10V DC/4-20mA), 4 analog outputs (0-10V DC/4-20mA), and 32 digital inputs/outputs 9.
    • Communication Protocols: Supports Modbus RTU, LonTalk, and HART (for intelligent field devices), ensuring compatibility with PLCs, HMIs, and third-party systems 927.
  2. Technical Specifications:
    Parameter Name Parameter Value
    Model NIMP01
    Manufacturer ABB
    Power Supply 24V DC ±10%
    Physical Dimensions 144 mm (width) x 176 mm (depth) x 48 mm (height)
    Weight 0.3–0.5 kg
    Operating Temperature -40°C to +70°C
    Compliance CE, UL
    Hot-Swap Capability Yes (with mechanical lock slider for safe disconnection) 27
    EMC Protection Galvanic isolation and EMI/RFI shielding for noise immunity

  3. Rugged Design:
    • IP20-rated enclosure withstands dust and minor impacts.
    • Conformal coating on circuit boards protects against moisture and corrosion, ideal for mining, oil/gas, and chemical plants 1925.

Applications

The NIMP01 excels in industries requiring robust control and communication:



  • Power Generation: Integrates with INFI 90 systems for turbine control, boiler management, and grid synchronization.
  • Oil & Gas: Manages distributed I/O for offshore platforms, pipelines, and refineries, leveraging HART compatibility for smart sensors 25.
  • Mining: Deployed in underground environments (-30°C operation) to control pumps, conveyors, and ventilation systems 19.
  • Water Treatment: Optimizes flow/pressure regulation via Modbus RTU, ensuring reliable operation of filtration and wastewater systems.

Compatibility and Integration

  • INFI 90 System: Works seamlessly with MFPs, INFI-NET transfer modules, and analog/digital control stations (e.g., IISA01, NDCS03) 725.
  • Third-Party Devices: Supports serial communication with printers, SCADA systems, and legacy PLCs via RS-232/485 7.
  • Expansion: Can be paired with NICS01 I/O termination modules to extend system functionality 7.

Installation and Maintenance

  1. Setup:
    • DIN rail mounting with front-panel LED indicators for power, communication, and fault status.
    • HART device verification simplifies configuration of intelligent sensors/actuators 27.
  2. Maintenance:
    • Hot-swappable design allows module replacement without system downtime.
    • Diagnostic tools (e.g., ABB’s DriveWindow) enable remote monitoring and firmware updates.
    • Annual inspections: Check terminal connections and clean dust using compressed air.

Regional Support and Availability

  • Taiwan: ABB’s authorized distributor Chuwei Technology (Kaohsiung) provides localized technical support and spare parts 23.
  • Global Inventory: Stock available in Xiamen, China, with 3–5-day delivery to Taiwan via FedEx/EMS 924.
  • Warranty: 1-year warranty covering defects in materials/workmanship.

Related Products

  1. ABB INFI 90 Series:
    • MFPs: Central processing units for complex control logic.
    • IIT02 INFI-NET Transfer Module: Enables bidirectional communication between INFI 90 networks 7.
  2. HART Devices:
    • ABB 267B6293P0010: Smart pressure transmitter compatible with NIMP01’s HART interface 9.
  3. Expansion Modules:
    • NICS01 Control I/O Termination Module: Extends I/O capacity for analog/digital signals 7.

Product Assurance

ABB guarantees the NIMP01 with rigorous testing to meet international standards. Its hot-swappable design and global support network minimize downtime, while EMC protection ensures reliability in electrically noisy environments. For mission-critical applications, ABB’s predictive maintenance services further enhance system uptime.



HS:8443919090
