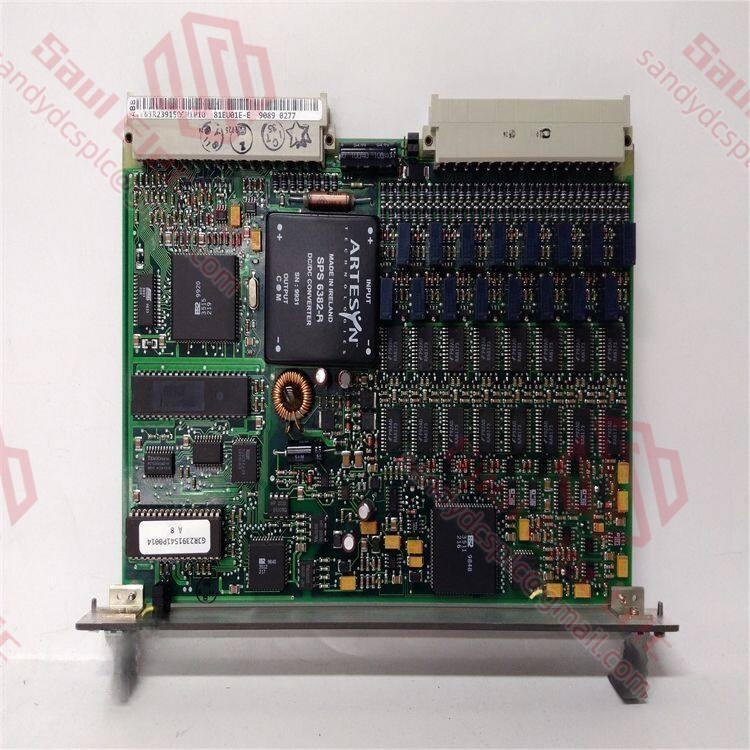

In the industrial automation control system of ABB Ability™ System 800xA® series, the GJR2391500R1210 (commonly designated as 81EU01E-E) universal input module is known as an all-rounder for signal acquisition, and also the core interface component for receiving various on-site signals in the entire system. Equipped with 16 independent input channels, it can flexibly adapt to three mainstream signal types: voltage (-250V to +250V), current (-20mA to +20mA) and resistance (0Ω to 2kΩ). Whether it is binary or analog signals, it can achieve accurate acquisition and conversion, ensuring that signals from various on-site sensors can be accurately identified by the system.

Actually, the signal types in industrial sites are complex, and a module that can adapt to multiple signal types in one stop can always greatly simplify the difficulty of system construction. Adopting a modular architecture design, this module natively supports industrial communication protocols such as PROFIBUS-DP and AF100. It requires almost no additional adapters when accessing DCS or PLC systems, easily realizing real-time data interaction and equipment linkage control. The built-in high-performance processor combined with EEPROM memory chip can also firmly save configuration parameters in case of unexpected power failure. The system can restart quickly after power recovery without the need for engineers to re-debug.

Designed to adapt to harsh industrial sites, it also features a special environmental reinforcement design. With a wide operating temperature range of -20°C to +60°C and IP56 protection rating, it can resist the interference of dust, moisture and temperature fluctuations. It has always been a reliable core component in the data acquisition links of power, chemical, machinery manufacturing and other industries.

Flexibility and high reliability are the two most prominent highlights of this universal input module. The modular hardware design allows the 16 channels to be independently configured as digital or analog input modes. When connecting to different types of on-site sensors such as temperature transmitters and pressure switches, no additional adapter hardware is required, which not only simplifies the system architecture but also reduces the inventory pressure of spare parts for enterprises.

The built-in high-performance processor can perform real-time preprocessing on the collected raw data. Basic work such as filtering and limit comparison can be directly completed at the module end. Combined with programmable function blocks, engineers can quickly implement customized logic, and the response speed of the system will be greatly improved. It also has built-in short-circuit protection, overload monitoring and diagnostic circuits. The LED indicators on the front panel can feed back the fault status in real time, and an alarm can be issued immediately once an abnormality occurs, avoiding the expansion of faults from the source.

The communication redundancy design (including dual-bus support) ensures the continuity of data transmission, and the EEPROM parameter storage design can completely avoid the problem of configuration loss due to power failure. Isn’t this the most practical design for industrial scenarios that require continuous production? In addition, the compact body is matched with the standard DIN rail mounting method, which can be easily deployed even in a control cabinet with limited space, and can also greatly shorten the on-site installation time.

This module is widely used in various industrial scenarios with high requirements for data acquisition reliability, and plays the role of the core of data acquisition in the automation systems of many industries. In the power system, it is deployed in the control cabinet of substations to collect key signals such as temperature and voltage. The wide input range can perfectly adapt to the output signals of PT100 thermocouples and various transmitters, providing data support for the precise monitoring of the power grid.

In the chemical industry, it connects pressure sensors and flow meters on the reactor, transmits data to the DCS system through the PROFIBUS-DP protocol, and realizes the safety interlock control of the process. In the machinery manufacturing field, it is integrated into the packaging production line to collect signals from photoelectric sensors and encoders, providing accurate action basis for the robot palletizing process. Its exclusive anti-interference design can also effectively suppress the electrical noise generated by the frequency converter and ensure the accuracy of signal acquisition.

In the energy management scenario, it cooperates with the smart meters of hydropower plants to record the operating data such as pump vibration, providing data reference for the predictive maintenance of equipment. In addition, it can also be seen in scenarios such as rail transit environmental monitoring and water treatment pH value detection. Its ultra-high compatibility makes it the preferred data acquisition component for the automation upgrade and transformation of many industries.

ABB products in the same ecosystem that can form a complete “signal acquisition-logic control-execution drive” automation system with GJR2391500R1210 include: 83SR50c-E GJR2395500R1210 digital output module, which can jointly expand the execution drive capability of the control system; 83SR51f-E GJR2396200R1210 dedicated control module for complex logic operations, further improving the overall processing performance of the system; PM851 PLC controller, which can serve as the master station of the input module to build a complete control architecture; RET615 protection relay for power automation systems, which can cooperate with it to complete fault monitoring; UFC721BE101 3BHE021889R0101 frequency converter control module, which can link with the input module to realize precise drive control of motors; PPC902AE101 3BHE010751R0101 industrial PC module, providing HMI support for it.

Before installation, it is necessary to confirm that the control cabinet environment meets the IP56 protection standard, clean up the dust and debris on the DIN rail, and verify the stability of the 24V DC power supply, which is the basis for the stable operation of the module. During wiring, the channel polarity marked in the product manual must be strictly followed. It is recommended to use single-end grounded shielded cables, which can effectively reduce on-site electromagnetic interference and ensure the accuracy of signal acquisition.

Daily maintenance operations are not complicated. It is recommended to regularly clean the ventilation ports of the module with dry air to prevent dust accumulation from affecting heat dissipation; check the tightness of the wiring terminals every quarter to avoid virtual connection caused by long-term vibration. If the panel status indicator flashes an alarm, the fault code can be read through the ABB special configuration software to quickly locate the problem; the abnormal channel supports hot-swapping replacement without shutting down the entire system, minimizing downtime.

ABB provides a 12-month official warranty for the GJR2391500R1210, and the product complies with international safety standards such as IEC 61511 throughout the whole process. The brand’s exclusive technical support team can provide remote fault diagnosis and on-site door-to-door services, and promises to replace the faulty module within 48 hours to ensure the continuity of industrial production. At the same time, users can access the ABB official online knowledge base to obtain various configuration cases and debugging tutorials, greatly shortening the debugging cycle of the system.
