Description

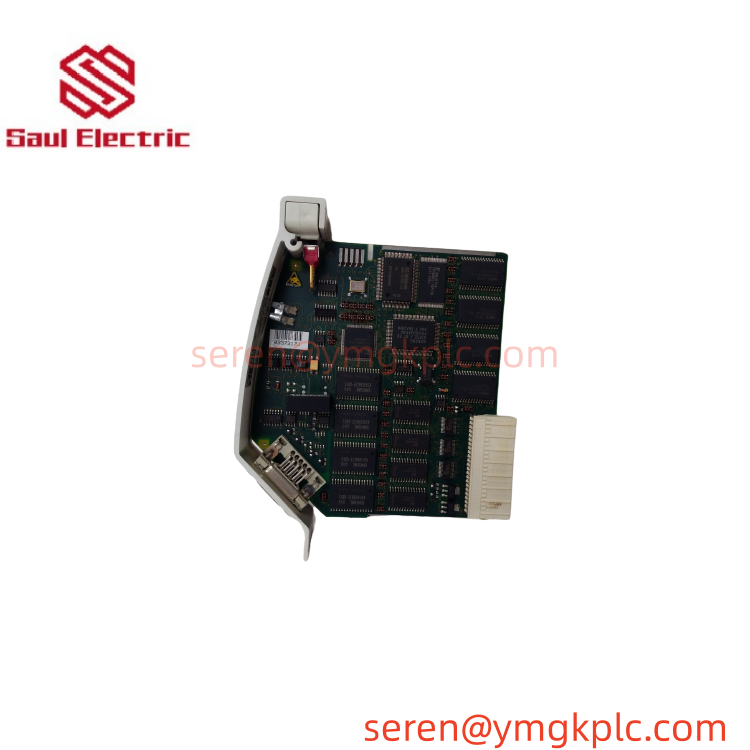

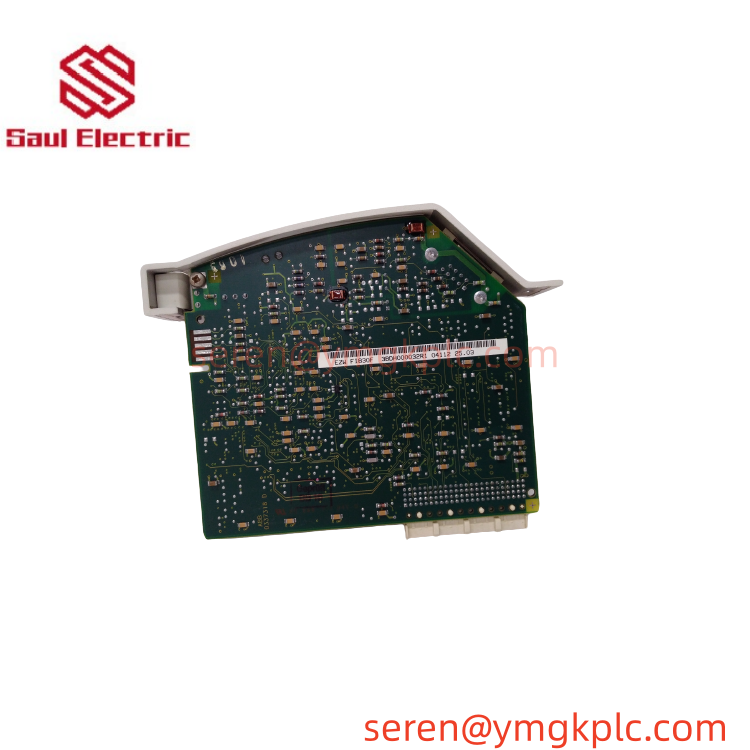

ABB FI830F 3BDH000032R1 is a PROFIBUS DP fieldbus communication module designed for the Freelance AC800F distributed control system. It operates as Class 1 DP master and supports Class 2 DP master functions via Freelance ControlBuilder F software. The module enables AC800F controllers to exchange cyclic process data and acyclic diagnostic information with PROFIBUS DP slave devices. Electrical isolation protects the controller backplane from fieldbus interference. It is widely deployed as replacement spare hardware for legacy Freelance DCS plant maintenance.
Series
Freelance is ABB’s distributed process control platform optimized for small and medium-scale process industries. The AC800F controller family supports a complete range of communication modules including Ethernet, serial and PROFIBUS interfaces to realize multi-protocol networking with field instruments and automation equipment.
Product Features
- Supports PROFIBUS DP-V0 cyclic data exchange and DP-V1 acyclic parameter access and diagnostic services.
- Operates as Class 1 DP master; Class 2 DP master functionality available via engineering software.
- Galvanic isolation between controller backplane and PROFIBUS fieldbus circuit.
- Baud rate range from 9.6 kbps to 12 Mbps, auto-detection supported.
- Standard DB9 PROFIBUS connector for fieldbus wiring.
- Front panel LED indicators for module status, bus activity and fault diagnostics.
- DIN slot mounting inside AC800F controller rack, powered via system backplane without external power supply.
- Hardware limitation: maximum quantity of FI830F modules per controller depends on CPU model and power supply type.
- Legacy non-RoHS hardware; only applicable for maintenance of existing Freelance systems.
Product Parameters
| Item | Details |
|---|---|
| Part Number | FI830F / 3BDH000032R1 |
| Brand | ABB |
| Series | Freelance AC800F DCS |
| Protocol | PROFIBUS DP-V0 / DP-V1 |
| Max Baud Rate | 12 Mbps |
| Connector | DB9 PROFIBUS |
| Compatible CPU | PM802F, PM803F |
| Power Supply | 24VDC backplane powered |
| Dimension (W×H×D) | 28 mm × 155 mm × 125 mm |
| Weight | Approx. 0.15 kg |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Humidity | 5–95% RH, non-condensing |
| Discontinued Status | Obsolete, spare-part only |
Product Specifications
- Installation: DIN slot mounted inside AC800F controller rack
- Certification: CE compliant
- Remark: Not recommended for new project design; requires matching Freelance engineering software version.
Function
- Establish PROFIBUS DP fieldbus link between AC800F DCS controller and PROFIBUS slave devices.
- Process cyclic input/output data exchange for real-time control tasks.
- Execute acyclic DP-V1 services to read device parameters, alarms and diagnostic information.
- Provide electrical isolation to suppress electromagnetic interference from fieldbus cables.
- Transmit bus status and fault diagnostic messages to the DCS operation system.
Purpose
PROFIBUS DP fieldbus gateway module for Freelance AC800F DCS, used to connect decentralized I/O, frequency converters and other PROFIBUS-compliant field devices in process plants.
Application Fields
- Chemical plant Freelance DCS maintenance
- Water & wastewater treatment automation retrofit
- Pulp and paper industry process control
- Thermal power plant auxiliary control system
- Legacy ABB Freelance AC800F site spare-part replacement
