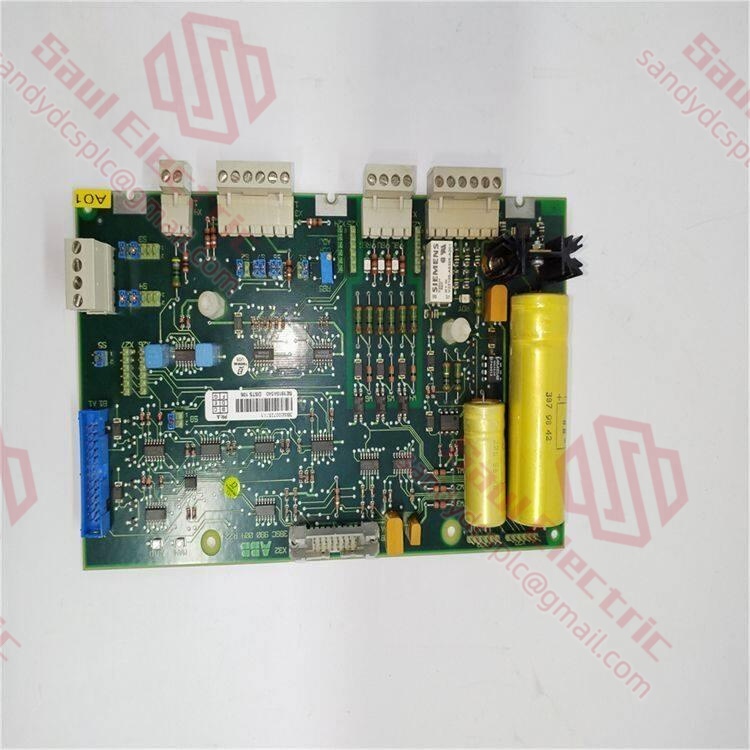

ABB DSTS106 3BSE007287R1 Trigger Pulse Generator Card Product Description
Product Overview
ABB DSTS106 3BSE007287R1 is a high-performance trigger pulse generator card exclusively engineered for industrial automation and process control systems, serving as a core signal synchronization component in the ABB Advant main process control system. It is primarily engineered to generate highly precise trigger pulse signals, acting as a command hub to synchronize and regulate the coordinated operation of multiple industrial devices. As an essential part of ABB’s automation product portfolio, the DSTS106 3BSE007287R1 adopts advanced electronic technology and premium manufacturing materials, ensuring consistent and stable operation even in the harshest industrial settings characterized by intense interference and fluctuating temperatures.
This trigger pulse generator card is not only capable of high-precision signal generation but also supports a variety of mainstream communication protocols, enabling seamless integration into existing DCS and PLC systems without complex adaptation work. In sophisticated industrial automation applications, the ABB DSTS106 3BSE007287R1 delivers robust and flexible control solutions with its reliable performance, and it has been widely adopted in key industries including chemical engineering, power generation and water treatment, effectively safeguarding the synchronization and stability of critical production processes. Its compact form factor combined with high-efficiency signal processing capabilities makes it an irreplaceable core component in industrial automation systems, significantly enhancing the control accuracy and overall reliability of the entire control system in practical operation.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSTS106 3BSE007287R1 |
| Manufacturer | ABB |
| Product Type | Trigger Pulse Generator Card |
| Supply Voltage | 24V DC |
| Power Consumption | 1.8A (max) |
| Communication Protocol | Modbus RTU, Profinet |
| Operating Temperature | -15°C to 60°C |
| Mounting Method | 35mm Standard DIN Rail |
| Dimensions (H×W×D) | 110mm × 80mm × 55mm |
| Weight | 210g |
| Digital Inputs | 6 channels (24V DC) |
| Digital Outputs | 4 channels (24V DC) |
| Interface | 1 Ethernet port (RJ45) |
| Certifications | CE, RoHS, UL 61010-1 |
Key Features and Advantages
ABB DSTS106 3BSE007287R1 boasts a range of outstanding features that render it a top performer in the industrial automation sector, with high-precision trigger pulse generation as its core competency. It can stably produce ultra-accurate trigger signals to ensure the perfectly synchronized operation of multiple connected devices—an essential factor in avoiding production errors caused by asynchrony in industrial manufacturing. What makes it even more practical is its hot-swap functionality, which allows on-site technicians to replace the module without shutting down the entire system, greatly improving the overall availability of the control system and streamlining daily maintenance work.
Its compact design is a major advantage for control cabinets with limited installation space, fitting effortlessly into narrow gaps while delivering superior signal processing efficiency. It also supports two mainstream industrial communication protocols, Modbus RTU and Profinet, meaning it can seamlessly connect with most existing industrial control systems, saving users the cost and time of system transformation. In addition, the card is built with strong anti-interference capability and a wide temperature adaptability range, able to resist electromagnetic interference common in industrial sites and maintain stable operation across different temperature conditions. All these excellent features together make the ABB DSTS106 3BSE007287R1 the ideal choice for high-reliability control scenarios in industrial automation systems.
Application Fields
ABB DSTS106 3BSE007287R1 offers extensive application value across the entire industrial automation landscape, and it plays a pivotal role especially in the chemical industry. In chemical plants, it is used to control the temperature and pressure of reactors, sending precise trigger signals to adjust relevant control components in real time, thus ensuring the stability and safety of the entire chemical production process. In the power industry, it is integrated into power generation and distribution systems to synchronize the operation of critical equipment such as generators and transformers, achieving efficient and stable power management.
The water treatment industry is also a key application scenario for this product. It precisely controls the start and stop of water pumps and the opening and closing of valves through accurate trigger pulses, optimizing the operational efficiency and reliability of water treatment processes such as filtration and purification. Beyond these, it is also widely applied to automated production lines in the manufacturing industry, providing high-precision trigger signals for robotic arms, conveyors and other automated equipment to ensure their coordinated operation and boost the overall efficiency of the production line. Its strong environmental adaptability and stable operational reliability make it a preferred control solution for a wide variety of industrial scenarios.
Related Products
DSTS107 3BSE007288R1: Same series model with additional input and output channels, ideal for complex industrial control scenarios with multiple device connections
DSTS108 3BSE007289R1: Extended temperature range model of the series, specially designed for industrial environments with extreme temperature conditions
DSTS109 3BSE007290R1: Customized model supporting Ethernet/IP communication, fully compatible with Rockwell control systems
DSQC651: ABB distributed I/O module, highly compatible with DSTS106 for expanding system I/O capacity
CI830 3BSE013252R1: Professional communication interface module, paired with DSTS106 to enhance the overall network communication capability of the system
PM865AK02: ABB high-performance controller, serving as the core control unit of the system with DSTS106 as the signal trigger component
PP845A: ABB dedicated power supply module, providing stable and continuous 24V DC power for DSTS106 to ensure its uninterrupted operation
Installation and Maintenance
Pre-installation Preparation
Prior to the installation of ABB DSTS106 3BSE007287R1, the foremost and critical step is to completely disconnect the power supply of the control cabinet to eliminate potential electrical safety hazards, and prepare all matching installation tools and accessories in advance. During installation, strictly follow the operation guidelines in ABB’s official technical documentation to mount the module on a 35mm standard DIN rail, and ensure the module is firmly fixed to prevent loosening due to vibration in industrial sites. When wiring, pay attention to the correct correspondence of digital input and output channels, and ensure all wiring connections are tight and reliable to avoid poor contact that may affect signal transmission.
Maintenance Recommendations
To maintain the optimal performance of DSTS106 3BSE007287R1 for an extended period, regularly clean the module’s ventilation openings with a dry, soft brush to prevent dust accumulation from blocking the heat dissipation channel and causing abnormal temperature rise. It is also recommended to inspect the tightness of all terminal connections on a quarterly basis, and re-tighten any loose terminals in a timely manner to ensure good electrical connectivity. The RJ45 Ethernet port is a key communication component, so frequent plugging and unplugging of the network cable should be avoided in daily use to prevent port damage. All maintenance operations of the module shall be conducted by professionally trained technical personnel to ensure the safety of the operator and the stable operation of the module after maintenance.
Product Assurance
ABB provides a comprehensive range of product quality assurance and professional after-sales service support for the DSTS106 3BSE007287R1 trigger pulse generator card. This product comes with a standard 12-month quality warranty from the date of shipment, and users can apply to extend the warranty period to 3 years according to actual requirements, obtaining more comprehensive quality protection. ABB’s professional technical support team is on standby to provide one-on-one technical consultation and accurate fault diagnosis services for users, helping to resolve various technical problems encountered during product use and ensuring users can fully utilize all functions of the product.
The company is committed to a rapid response mechanism for customer needs, and relies on its global spare parts supply network to provide reliable and fast spare parts support for users, minimizing equipment downtime caused by component failure and reducing the corresponding production losses for customers. Meanwhile, ABB’s technical team will continue to provide targeted usage guidance and performance optimization suggestions for this product, escorting the long-term and stable operation of the product throughout its entire life cycle in industrial applications.
