Description

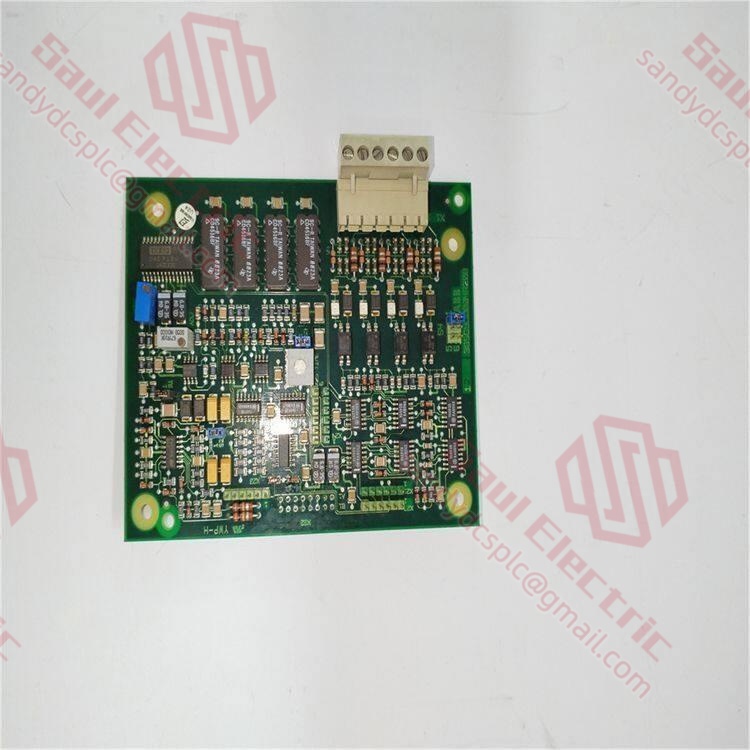

ABB DSTS105 3BSE007286R1 Ramp Unit Product Description
Product Overview
ABB DSTS105 3BSE007286R1 is a high-performance ramp unit specially designed for analog backup regulation in industrial automation control systems. It serves as a core component for analog backup regulation in ABB’s Advant Master process control systems, ensuring the continuous and stable operation of industrial processes during abnormal conditions via smooth signal transitions and reliable analog control. As an important member of ABB’s automation product portfolio, this ramp unit adopts advanced electronic technology and a modular design, which enables it to efficiently handle the ramp generation and regulation tasks of analog signals in practical industrial operations.
The design of this ramp unit fully caters to the high requirements of industrial environments, with excellent anti-interference capability and high-precision signal processing performance. In addition to seamless integration with the ABB Advant Master DCS architecture, the ABB DSTS105 3BSE007286R1 also supports channel-level fault detection functions including open and short circuit monitoring, which greatly improves the overall reliability and safety of the control system. In critical industrial sectors such as power generation, chemical engineering and water treatment, the DSTS105 3BSE007286R1 acts as a reliable protective barrier for industrial automation systems, with its stable performance and trusted backup regulation functions underpinning the safe and smooth operation of core production processes.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSTS105 3BSE007286R1 |
| Manufacturer | ABB |
| Product Type | Ramp Unit (Communication Module) |
| Function | Ramp unit for analog backup regulator |
| Dimensions (D×W×H) | 135mm × 193.5mm × 13.5mm |
| Weight | Approximately 1kg |
| Safety Certification | SIL 2 (SIL 3 with redundancy), PL d |
| Operating Temperature | -25°C to +70°C |
| RoHS Status | Compliant under 2011/65/EU Article 2 exemptions |
| HS Code | 85389091 |
| Product ID | 3BSE007286R1 |
| Type Designation | DSTS105 |
Key Features and Advantages
ABB DSTS105 3BSE007286R1 has a number of outstanding features and advantages that make it a competitive choice in the industrial automation field, with analog regulation capability as its core strength. Customized for backup control scenarios, it provides precise ramping functionality for analog signal transitions, ensuring smooth signal changes and uncompromised control accuracy—this is the fundamental guarantee for stable industrial process operation. Its system integration advantage is prominent, with full compatibility with the ABB Advant Master DCS architecture, allowing it to integrate seamlessly into existing automation control systems without complex and costly modification work.
In terms of safety compliance, this ramp unit has reached a high industry standard, holding SIL 2 certification (SIL 3 achievable with redundant configuration) and PL d functional safety level. This safety performance is exactly what high-risk industrial environments need to avoid operational risks and ensure production safety. It is also equipped with powerful diagnostic functions, supporting channel-level fault detection such as open and short circuit monitoring. This function enables on-site operators to detect potential faults in a timely manner and receive early warnings, realizing proactive fault prevention and reducing unplanned downtime.
Its industrial reliability design ensures continuous and stable operation in harsh industrial environments. The modular structure and high-quality components jointly guarantee long-term operational reliability, and reduce the maintenance frequency and cost for users. In terms of environmental compatibility, the unit complies with the exemption clauses of the RoHS directive, which makes it applicable to various industrial control scenarios and meets the environmental protection compliance requirements of different regions and industries.
Application Fields
ABB DSTS105 3BSE007286R1 has extensive application value in the field of industrial automation, and its application in process industries is particularly prominent. In chemical, power and water treatment industries, it is widely used in analog backup control scenarios to ensure the stable control of key process parameters such as temperature, pressure and flow—these parameters are the key factors determining production quality and operational safety. In manufacturing automation, it is applied in production line control systems to provide reliable signal conditioning and backup control functions, ensuring the continuous and efficient operation of production lines.
In the power control field, this ramp unit is integrated into the control architecture of power plants and power distribution systems, and its precise analog regulation performance ensures the stable operation of core electrical equipment, avoiding power supply interruptions caused by equipment control failures. Even in building automation, it has a wide range of applications, which can be used to control building energy management systems and environmental control equipment, optimize building energy consumption and maintain a comfortable indoor environment.
In addition, this product is also suitable for transportation systems, logistics automation and various industrial scenarios that require highly reliable analog backup control. Its excellent adaptability and reliability have been verified in a variety of application environments, making it the first choice for users with strict requirements on the stability of backup control systems.
Related Products
DSTS001: Basic ramp unit of the same series, suitable for simple analog signal processing requirements in small-scale control systems
DSTS104 3BSE007285R1: Adjacent model in the ramp unit series with similar core functions, adapted to different on-site configuration requirements
DSQC655: ABB industrial robot control module, compatible with DSTS105 to realize seamless signal integration in robot automation systems
CI830 3BSE013252R1: Profibus communication module, integrable with DSTS105 to achieve stable network communication of the whole control system
DO802 3BSE022364R1: Digital output module, which can be combined with DSTS105 to form a complete and efficient analog-digital integrated control solution
PM865AK02: ABB high-performance controller, serving as the core control unit of DSTS105 in large-scale industrial automation systems
PP845A: ABB power supply module, providing stable and continuous power supply for DSTS105 to ensure its uninterrupted operation
TB842 3BSE022464R1: Specialized interface module, designed to expand the connection capability of DSTS105 and adapt to multi-device integration application scenarios
Installation and Maintenance
Pre-installation Preparation
Before installing the ABB DSTS105 3BSE007286R1, it is essential to completely disconnect the power supply of the control system to eliminate electrical safety risks, and prepare all appropriate installation tools and matching accessories in advance. During installation, sufficient space shall be reserved around the module for heat dissipation and subsequent maintenance operations. It is recommended to strictly follow the requirements of ABB’s official technical documentation for installation to ensure the optimal operating state of the module.
Correct wiring is crucial for the long-term stable operation of the module, especially for analog signal lines. Shielded cables must be used for analog signal wiring, because analog signals are extremely sensitive to external interference, and shielded cables can effectively reduce signal distortion and loss, ensuring the accuracy of signal transmission.
Maintenance Recommendations
To maintain the optimal operating performance of the DSTS105 3BSE007286R1, regular visual inspections and functional tests are recommended, with a focus on checking the signal processing accuracy and the normal operation status of the fault diagnosis function—these two aspects are directly related to the backup regulation effect of the unit. In dusty industrial environments, the ventilation areas of the module should be cleaned regularly to prevent dust accumulation from blocking the heat dissipation channel and causing abnormal operating temperature of the module.
Although the module is designed with high industrial reliability, it is recommended to conduct a comprehensive performance calibration every year. This calibration can ensure the long-term accuracy of analog signal processing of the unit and avoid control errors caused by parameter drift. All maintenance operations shall be performed by professional technicians trained by ABB, and only genuine spare parts recommended by ABB shall be used for replacement. This is the most effective way to ensure the full compatibility and stable operation of the entire control system.
Product Assurance
ABB provides comprehensive product quality assurance and after-sales service support for the DSTS105 3BSE007286R1. All products undergo strict multi-process testing and inspection before leaving the factory to ensure that they fully meet ABB’s stringent global high-quality standards. This ramp unit is provided with a 12-month warranty period starting from the date of official shipment, which provides solid quality assurance for users in the initial use stage.
ABB’s professional technical support team provides round-the-clock one-on-one technical consultation and accurate fault diagnosis services, helping customers solve various problems encountered in the practical application of the DSTS105 3BSE007286R1. The company is committed to providing fast and efficient technical support and spare parts supply services, and relies on its global logistics network to realize the rapid delivery of spare parts, minimizing the equipment downtime of customers and reducing the corresponding production losses.
In addition, ABB’s R&D and technical teams continuously provide targeted technical support and performance optimization suggestions for this product throughout its entire lifecycle. With the continuous evolution of industrial control requirements, the technical team will also update the application guidance in a timely manner to ensure that the DSTS105 3BSE007286R1 can always maintain the optimal operating performance in different application stages and scenarios, and escort the long-term stable operation of customers’ industrial automation systems.
