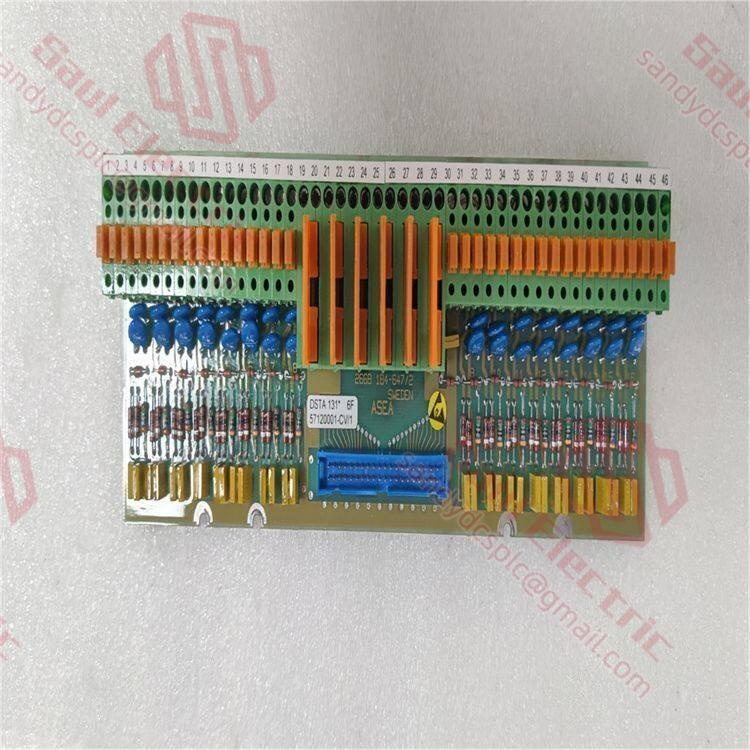

ABB DSTA131 57120001-CV Analog Board Connection Unit Product Description
Product Overview
The ABB DSTA131 57120001-CV is a high-quality analog board connection unit tailored specifically for industrial automation control systems. Serving as the neural connector in ABB control systems, it builds a reliable connection pathway and signal transmission bridge for analog boards, laying a solid foundation for the precise acquisition and stable output of analog signals in industrial process control.
As a key member of ABB’s automation product lineup, this connection unit integrates advanced connection technology and signal processing design, effectively reducing signal interference and enhancing the system’s overall anti-interference capability and operational stability. In practice, it is mainly compatible with ABB’s DCS series, industrial robot spare parts DSQC series, and Bailey INFI90 control systems, delivering reliable analog signal interface solutions in complex industrial environments.
The design team clearly took full account of various harsh working conditions in industrial sites. Boasting excellent temperature adaptability and anti-vibration performance, this product can operate stably even in challenging environments. It has found wide application in numerous critical industrial sectors, from power generation and petrochemicals to metallurgy—providing a safe and reliable connection barrier for industrial automation systems while subtly boosting the performance and reliability of the entire control system.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSTA131 57120001-CV |
| Manufacturer | ABB |
| Product Type | Analog Board Connection Unit |
| Structure Form | Modular |
| Installation Method | Control Room Installation |
| Working Voltage | 210V |
| Environmental Temperature | 0-65°C |
| Environmental Humidity | 0-95% |
| Weight | 0.13kg |
| Dimensions | 25 * 32 * 65mm |
| Product Certification | CE |
| Customization | Not Supported |
| Country of Origin | Sweden |
Key Features and Advantages
The DSTA131 57120001-CV adopts a streamlined structural design, supporting dual Ethernet and USB communication for impressive data transmission efficiency. Interestingly, on-board documentation and system update functions come as standard, while the plug-and-play replacement design simplifies maintenance procedures to a great extent, indirectly extending the module’s service life. These devices can connect multiple equipment modules in a single network, showcasing remarkable system integration capabilities.
The harshness of industrial environments is well-known, yet this connection unit achieves long-term stable operation through high-quality materials and exquisite craftsmanship, with reliability and stability that speak for themselves. It excels in electromagnetic compatibility, effectively suppressing on-site interference and ensuring accurate signal transmission. Its compact size not only saves installation space but also facilitates wiring and maintenance, indirectly reducing the total cost of ownership. Isn’t such a modular design intended to minimize system downtime and improve production efficiency? The feature of quick installation and replacement truly solves many problems in practical applications.
Application Fields
The DSTA131 57120001-CV plays an important role in numerous industrial automation control scenarios. Inside power plant boiler rooms, this product integrates seamlessly into DCS control systems, safeguarding the connection and transmission of analog signals for critical equipment such as boilers and turbines.
In the central control rooms of refining and chemical plants, it is responsible for the analog acquisition modules of process control systems—precise monitoring and control of process parameters such as temperature, pressure, and flow all depend on it. In the automation control systems of continuous casting, steel rolling, and other production lines in the metallurgical industry, it provides reliable signal interfaces for drive devices and actuators, ensuring the smooth progress of production processes.
In smart manufacturing and industrial robot applications, it works in perfect harmony with ABB robot control systems, enabling stable transmission of robot joint servo drive and sensor signals, which guarantees the precise operation of production lines. Beyond that, it can also be found in the automation control systems of water treatment, papermaking, food and beverage, and other industries, with its adaptability and reliability verified across different sectors.
Related Products
DSTA001 57120001-PX: Same-series analog connection unit, suitable for different wiring layout requirements
DSTA002B 3BSE018317R1: Analog input board connection unit, specifically designed for the DSAI 133A analog input board
DSTA145 57120001-HP: High-performance analog board connection unit with enhanced signal processing capabilities
DSQC651: Distributed I/O module, compatible with DSTA131 for use in ABB robot control systems
DSQC652: 16-channel digital input/output module, ideal for expanded I/O requirement scenarios
DSQC653: Digital module with relay output, offering superior output capacity
DSPC452 57310303-A: Programmable controller basic unit, providing system-level control solutions
Installation and Maintenance
Before installation, be sure to disconnect the control cabinet power supply and prepare appropriate tools and installation accessories. Carefully inspect the module’s appearance for damage and confirm that the model and specifications match the design requirements. During installation, strictly follow the technical documentation provided by ABB, wire correctly, and secure firmly—after all, vibration in industrial environments may cause loose connections, which is not to be taken lightly. Special attention should be paid to electrostatic protection here, as sensitive electronic components cannot withstand electrostatic discharge damage.
For daily maintenance, it is recommended to regularly check the connection status and operating temperature of the DSTA131 57120001-CV to ensure the module operates within the specified environmental conditions. Developing a preventive maintenance plan is essential, such as regular connector cleaning and wiring integrity checks. When the system displays an error message or performance degrades significantly, conduct timely inspections and replace the module if necessary. You may also agree that maintenance operations performed by certified technicians using genuine spare parts can better ensure system compatibility and reliability.
Product Assurance
ABB provides comprehensive quality assurance and after-sales support for this analog board connection unit. All products undergo rigorous multi-layer testing before leaving the factory to meet ABB’s consistent high-quality standards. Backed by a global service network, ABB’s technical support team is on standby to offer professional technical consultation and fault diagnosis services, helping resolve various issues encountered in practical applications.
The company is committed to rapid after-sales response and spare parts support, striving to minimize customer downtime. More notably, ABB continuously provides technical upgrades and optimization suggestions for the DSTA131 57120001-CV, ensuring the product maintains optimal performance throughout its entire lifecycle.
