Description
Product Overview

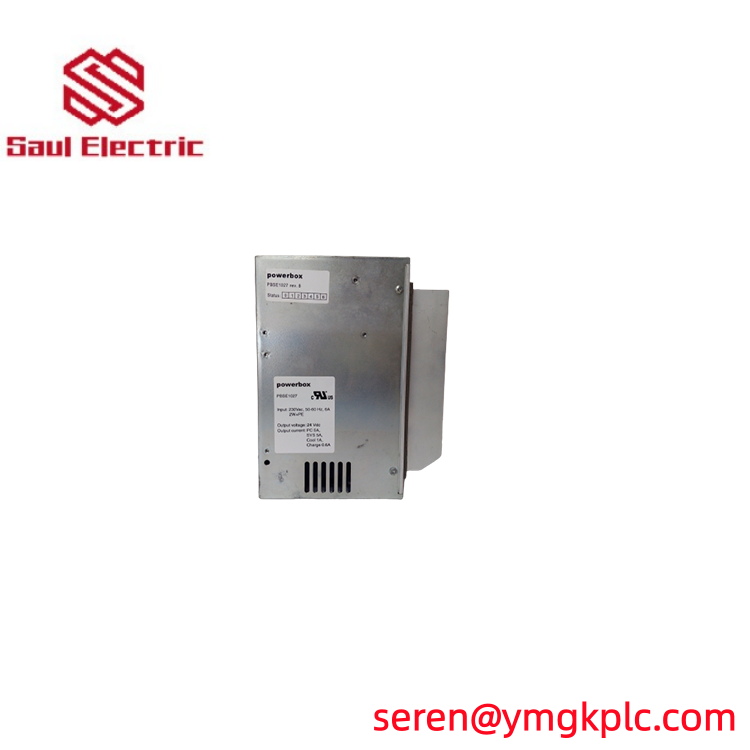

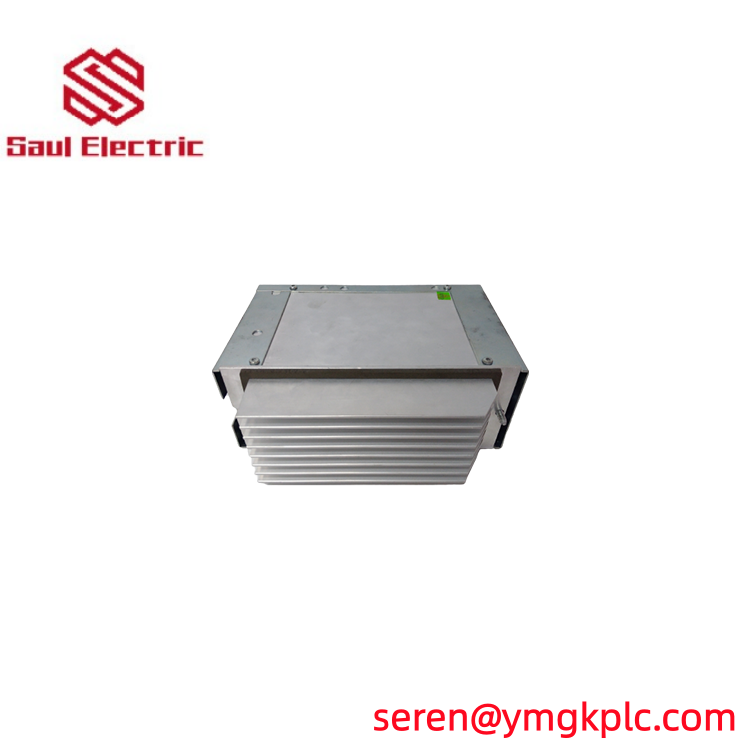

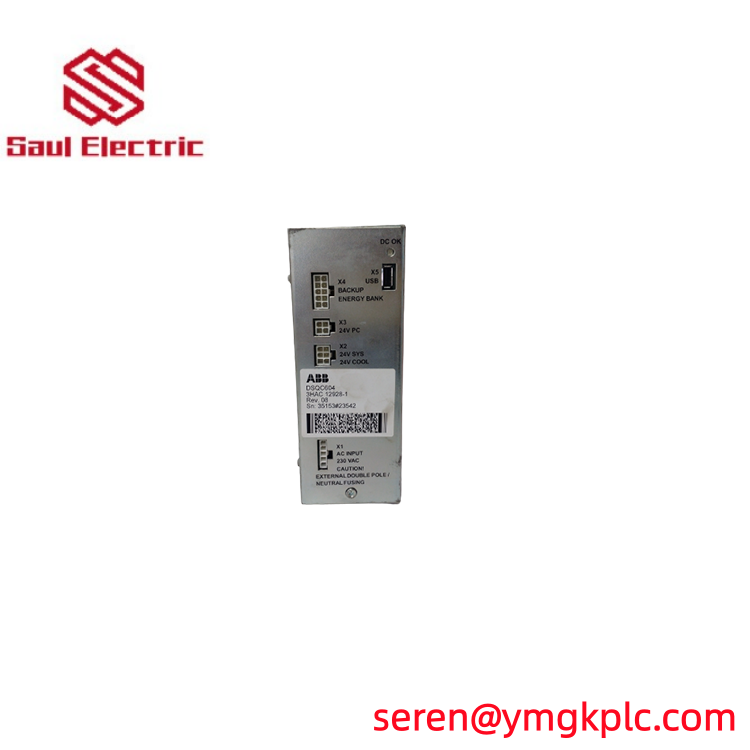

ABB DSQC604 (3HAC12928-1) is an internal power supply unit specially designed for the ABB IRC5 robot controller cabinet. It provides stable DC power for the drive units, main computer board and other internal modules inside the IRC5 controller. Reliable power output ensures continuous normal operation of the entire robot control system. This unit is a critical spare part for ABB six-axis industrial robot maintenance, widely used to replace faulty power modules on production robots.
Series
This product belongs to the ABB IRC5 industrial robot controller series. The IRC5 controller is a mainstream robot control platform launched by ABB, featuring modular architecture, high motion control precision, flexible configuration and strong expandability. It is widely matched with ABB IRB series industrial robots for handling, welding, assembly and polishing applications.
Product Features
- Specially tailored for ABB IRC5 controller cabinet, perfect plug-and-play compatibility.
- Stable 24VDC power output, low ripple and high power conversion efficiency.
- Built-in overvoltage, overcurrent and short-circuit protection to safeguard robot internal boards.
- Compact standard module structure, easy installation and replacement inside the controller cabinet.
- Strict industrial-grade testing, supporting long-time continuous workshop operation.
- Built-in fault detection circuit, convenient for maintenance personnel to judge power supply failures.
- Conformal coated circuit board option resists dust, humidity and slight corrosive gas in factory environments.
Product Parameters
- Part Number: DSQC604 / 3HAC12928-1
- Input Voltage: According to IRC5 cabinet standard specification
- Output Voltage: 24VDC
- Application Object: ABB IRC5 Robot Controller
- Operating Temperature: 0℃ ~ +55℃
- Storage Temperature: -20℃ ~ +70℃
- Working Humidity: 5%~95% RH, non-condensing
- Protection Mechanism: Overload, short circuit, overvoltage protection
- Protection Grade: IP20 (Installed inside control cabinet)
Product Specifications
- Installation Mode: Fixed installation inside IRC5 controller cabinet
- Compatibility: Compatible with standard ABB IRC5 single cabinet / dual cabinet controllers
- Mechanical Structure: Standard industrial power module form factor
- Operation: Supports 24/7 continuous industrial operation
- Safety Standard: Complies with international industrial electrical safety requirements
Function
ABB DSQC604 3HAC12928-1 power supply module converts the input mains power into stable 24VDC power required by each internal component of the IRC5 robot controller. It supplies power to the main control board, communication units and auxiliary circuits of the robot controller, ensuring normal execution of robot motion programs, signal communication and safety interlock functions.
Purpose
Applied to replace the failed original power supply unit inside ABB IRC5 robot controllers. It is used for robot routine overhaul, emergency breakdown maintenance and spare parts stocking for automated production lines, effectively reducing production downtime caused by power module faults.
Application Fields
- Automobile manufacturing welding, handling and assembly robotic stations
- Metal processing, casting and forging industrial robot equipment
- 3C electronics assembly, gluing and handling automation lines
- Food, logistics and packaging automated robot systems
- Plastic, rubber industry robotic production equipment
- Factory maintenance and spare part inventory for ABB IRC5 robot systems
Image Search Keyword: ABB DSQC604 3HAC12928-1 robot power supply white background no watermark
