ABB DSDX 452L | Combined Digital Input / Output Module for S100 I/O System

Description

1. Product Overview

The ABB DSDX 452L is a high-performance, combination Digital Input / Output Board designed specifically for the legacy ABB S100 I/O system. Implemented widely in Advant Controller 400 series (AC410, AC450) and early MasterPiece 200/1 platforms, this module provides a space-saving, dual-function interface for localized digital signals within a single rack slot.

By integrating both discrete inputs and discrete outputs onto one board, the DSDX 452L optimizes rack capacity and reduces the total cost of ownership for industrial plant installations. The module features high-grade optical isolation to separate external electrical field noise from the high-speed internal controller backplane, guaranteeing maximum uptime and signal stability. The “L” variant denotes specific hardware and component selections optimized for rugged, continuous industrial workloads.

Key Applications:

• Metals & Mining: Tracking limit switches and triggering hydraulic solenoids in harsh mill environments.
• Pulp & Paper: Interfacing push-buttons, interlocks, and control valves across high-speed paper machinery.
• Chemical Processing: Managing binary sensors and pilot valves in safety-interlocked logic loops.
• Power Plant Utilities: Coordinating sequence of events (SOE) tracking for water treatment and auxiliary motor controls.

2. Technical Features

3. Procurement Process

1. Technical Cross-Reference: We review your exact module revision profile to ensure the DSDX 452L matches your existing software database mapping and field voltage configuration.
2. Transparent Commercial Quote: Get a detailed quotation including competitive tiered pricing, immediate stock status (New Original or high-quality surplus), and fast global freight terms.
3. Compliance & Export Checks: Verification of shipping addresses, packing documentation, and standard global trade compliance requirements.
4. Sales Agreement: Issuance of a Proforma Invoice (PI) to finalize processing through secure corporate accounting channels.
5. Secure Remittance: Safe payment processing executed via direct T/T (Bank Wire Transfer).
6. Pre-Shipment Quality Audits: Every module goes through a 100% rigorous hardware inspection looking at trace integrity, connector pins, and original ABB serial codes.
7. Premium Industrial Packaging: Sealed inside anti-static (ESD) moisture-barrier bags and nested inside dense shock-proof foam boxes tailored for safe international air transit.
8. Expedited Shipping: Dispatched immediately through premium courier loops (DHL, FedEx, UPS) with tracking details generated automatically.

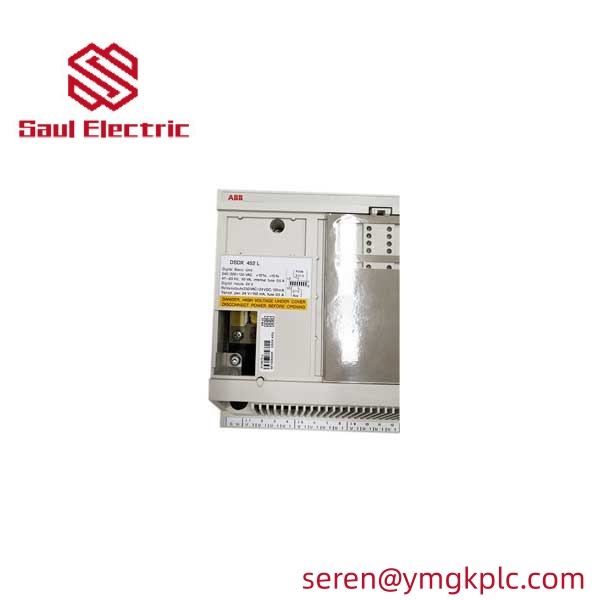

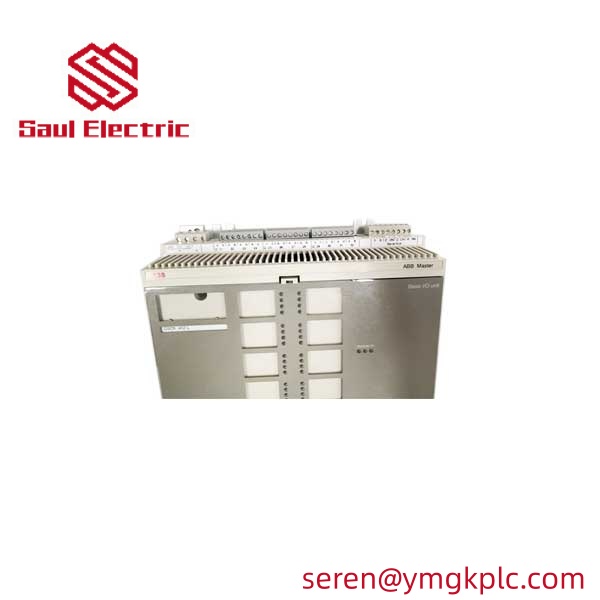

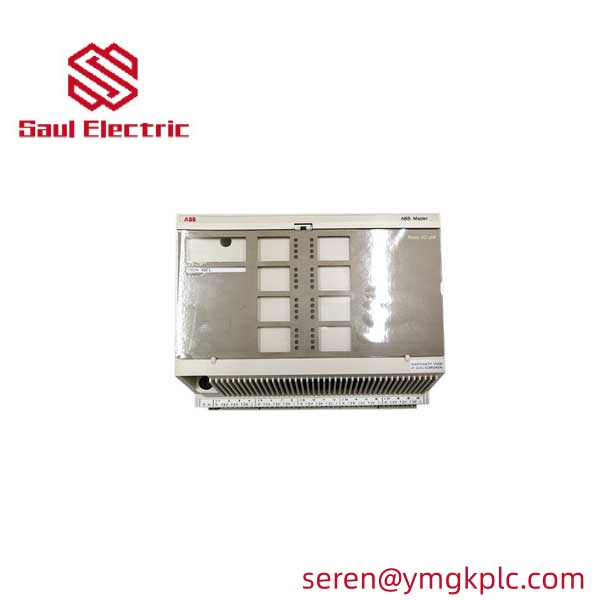

4. Products Showcase (Photos & Video)

5. Related Models

• ABB DSDO120 / 57160001-AK (16-Channel Digital Output Module)
• ABB DSDI110A (Digital Input Module for S100 I/O)
• ABB DSAI133A / 3BSE018290R1 (32-Channel Analog Input Module)
• ABB DSBC174 (S100 Bus Bus-Coupler Card)

6. Warranty & After-Sales

• 12-Month Industrial Warranty: Comprehensive 1-year coverage ensuring operational reliability and hardware integrity.
• 100% Authenticity Guarantee: We supply exclusively genuine ABB factory components to protect your process automation investments.
• Global Logistics Tracking: Consistent updates on tracking timelines and complete processing of necessary international customs declarations.

7. FAQ

Q: Can the DSDX 452L replace standard independent DSDI or DSDO boards?

Functionally yes, but software allocation is different. Because it contains both input and output channels under a unified hardware address, you must adjust the database configuration inside the Advant Controller software (such as Ampl or DB building scripts) to match the exact slot configuration of the DSDX 452L.

Q: Does the module require separate field power for the inputs and outputs?

Yes. The internal logic is powered by the 5V rail supplied via the S100 rack backplane. However, to operate the field side loop (sensing inputs and driving output actuators), external field power supply rails (typically 24V DC) must be fed into the corresponding termination unit blocks.

Q: Is it safe to extract this card while the I/O rack is live?

ABB standard operating procedures for legacy S100 hardware strongly recommend isolating power or putting the system bus into a safe maintenance/standby state prior to card replacement. Hot-swapping without verified bus-isolation techniques can risk throwing a bus error that might halt the main AC450 processor.
