Description

Product Overview

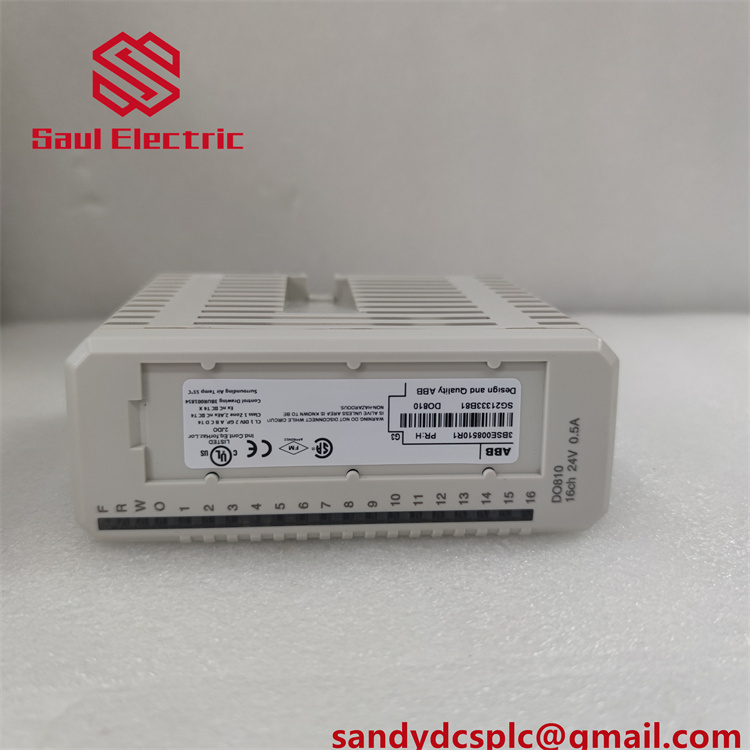

The ABB DO810 3BSE008510R1 is a digital output module designed for ABB’s S800 I/O platform within the Advant 800xA distributed control system (DCS). As a key component for industrial automation, it converts digital control signals from the DCS into physical outputs to drive field devices (e.g., relays, valves, motors) in harsh industrial environments. The module features 16 isolated output channels with 24 V DC sinking/sourcing capability, ensuring reliable operation in noisy electrical systems.

The 3BSE008510R1 suffix denotes a specific revision of the DO810, optimized for compatibility with modern control protocols and enhanced diagnostic features. Its hot-swappable design allows maintenance without system downtime, while built-in short-circuit and overload protection safeguards both the module and connected devices. The module is ideal for applications requiring high availability, such as power generation, chemical processing, and manufacturing automation.

Technical Specifications

Parameter Name	Parameter Value
Product Model	DO810
Manufacturer Part Number	3BSE008510R1
Product Type	Digital Output Module
Output Voltage	24 V DC (19.2–30 V DC)
Number of Channels	16 (grouped into 4 isolated segments of 4 channels each)
Output Current per Channel	0.5 A (max. continuous), 1 A (max. surge for 10 s)
Total Output Current	4 A (max. per segment), 8 A (max. total)
Isolation	Groupwise isolation (500 V DC between segments and ground)
Response Time	On: <1 ms, Off: <2 ms
Power Supply	24 V DC ±10% (shared with input supply)
Power Consumption	Typ. 3.5 W (without load)
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +85°C
Protection Rating	IP20
Dimensions	102 mm (W) x 119 mm (H) x 45 mm (D)
Weight	0.25 kg
Compliance Standards	CE, IEC 61131-2, UL, RoHS

Main Features and Advantages

High Reliability with Protection: Each channel includes short-circuit, overload, and reverse-polarity protection, minimizing damage from transient faults. The groupwise isolation (4 segments) prevents cross-channel interference, critical for safety-critical systems like emergency shutdown (ESD) panels.
Flexible Output Configuration: Supports both sinking (NPN) and sourcing (PNP) output types, adaptable to various field device requirements. Channels can be configured for latching or momentary operation via ABB’s Automation Builder software, enabling precise control of motors or solenoid valves.
Hot-Swap Capability: Allows replacement of the module without powering down the system, reducing maintenance downtime in 24/7 operations (e.g., water treatment plants or oil refineries).
Diagnostic Capabilities: Built-in channel status LEDs and fault reporting (via PROFIBUS or Modbus) enable real-time monitoring of output health. The module supports diagnostic feedback to the DCS, flagging open circuits or overloads for proactive maintenance.
Scalable Integration: Compatible with ABB’s AC 800M controllers and S800 I/O rack systems, allowing seamless expansion of I/O capacity in large-scale projects. Up to 12 DO810 modules can be installed per I/O system for high-density output applications.

Application Areas

Manufacturing Automation: Controls conveyor belts, robotic arms, and pneumatic valves in automotive or electronics production lines. The module’s fast response time (<2 ms) ensures precise synchronization with production cycles.
Power Generation: Drives circuit breakers, generator field switches, and cooling system actuators in thermal or renewable energy plants. Its wide temperature range (-40°C to +70°C) suits outdoor switchgear installations.
Oil and Gas: Operates pipeline valves, pump starters, and flare systems in refineries and offshore platforms. The explosion-proof design compliance (via system-level certification) makes it suitable for hazardous areas.
Building Automation: Manages HVAC dampers, lighting relays, and access control systems in smart buildings. The module’s low power consumption and compact size optimize space in control panels.

Installation and Maintenance

Installation:

Mount the DO810 on a DIN rail using the TU810 terminal unit, ensuring proper grounding.
Connect 24 V DC power and field device cables, adhering to polarity requirements. Use shielded cables for noise-sensitive applications.
Configure the module via ABB’s Automation Builder software, setting output types (sinking/sourcing) and enabling diagnostic features.

Maintenance:

Regularly inspect channel status LEDs for fault indications (e.g., red light for overload).
Use ABB’s diagnostic tools to monitor output current and voltage levels.
Replace faulty modules during scheduled maintenance or via hot-swap if urgent. Maintain spare modules to minimize downtime.

Product Guarantee and Availability

Warranty: 1-year manufacturer’s warranty against defects.
Inventory: Typically available in stock for rapid dispatch (3–5 business days after payment).
Origin: Manufactured in Switzerland, with global technical support from ABB.
Compliance: RoHS-compliant, suitable for environmentally conscious projects.

For detailed wiring diagrams, programming guides, or custom solutions, contact ABB’s official support or authorized distributors.

Brand Model: ABB DO810
Part Number: 3BSE008510R1
Product Name: Digital Output Module
Output Type: 24 V DC, sinking/sourcing
Channel Count: 16 (isolated)
