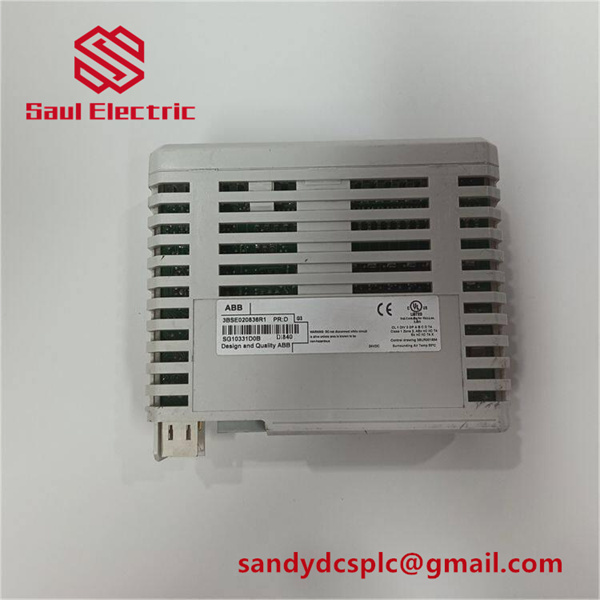

ABB DI840 (3BSE020836R1) Product Description
Product Overview
Interestingly enough, the ABB DI840 (3BSE020836R1) stands out as a high-performance 16-channel digital input module in the S800 I/O system series, built specifically for critical signal acquisition in industrial automation control systems. It accepts 24V DC current sinking input signals and supports both single and redundant configuration modes, reliably capturing discrete status signals from field sensors, switching devices, and other digital signal sources, then accurately converting them into digital data processable by the control system. In ABB’s distributed control systems such as Advant OCS, MOD 300, and 800xA, the DI840 serves as the fundamental interface unit for process monitoring and equipment status feedback—without it, the smooth transmission of critical field equipment status signals to the control hub would be compromised, undermining the precision of the entire control chain.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DI840 |
| Manufacturer | ABB |
| Product Type | Digital Input Module |
| Order Number | 3BSE020836R1 |
| Number of Input Channels | 16 channels |
| Input Voltage Range | 18-30V DC |
| Signal Type | Current Sinking |
| Input Impedance | 3.3 kΩ |
| Isolation Method | Groupwise isolated from ground |
| Filter Times | 0-127 ms (digitally selectable) |
| SOE (Sequence of Event) | Supported, 1ms resolution |
| Redundancy Function | Supported |
| Power Consumption | Typical 2.7W |
| Operating Temperature Range | 0°C to +55°C |
| Protection Rating | IP20 |
| Dimensions (WxHxD) | 45mm x 119mm x 102mm |
| Weight | Approx. 0.15kg |
Key Features and Advantages
The core competitive edge of the ABB DI840 3BSE020836R1 lies in its high-reliability design and advanced diagnostic capabilities. Its group isolation design acts like a “signal firewall” for each channel group, with independent electrical isolation for every group to fundamentally eliminate signal interference and crosstalk, ensuring purer collected signals. What’s more, the built-in real-time diagnostics keep a close eye on the status of each channel, accurately reporting critical fault information such as wire-break detection and short-circuit protection. This not only significantly improves system maintainability but also boosts fault response speed by leaps and bounds—a true boon for maintenance personnel in industrial sites where fault handling timeliness is paramount.
Application Fields
Thanks to its high reliability and precise event recording capability, the ABB DI840 (3BSE020836R1) plays an indispensable role in several key areas of industrial automation. It is widely deployed in process industries like petrochemicals, pharmaceuticals, and power generation—sectors where process safety leaves no room for error. It monitors high-voltage switch status, captures Emergency Shutdown (ESD) signals, and receives pressure transmitter alarm signals, all critical links tied to production safety, relying on the DI840 to accurately capture every signal and provide a reliable basis for control system decision-making. Suffice to say, it delivers flawless performance in any scenario demanding strict precision and reliability in signal acquisition.
Related Products
TU810/TU812/TU814: Standard screw-terminal units, perfectly compatible with the DI840 for secure wiring
TU818: Spring-clamp terminal unit, enabling tool-free wiring for more efficient on-site installation
TU830/TU833: High-density terminal units, tailored for space-constrained control cabinets
TU838: Removable terminal block unit, simplifying disassembly and modification during later maintenance
DI810: 16-channel digital input module with standard features, flexible for combination with the DI840
DI811: 32-channel high-density digital input module, meeting multi-channel signal acquisition needs
CI801: PROFIBUS-DP communication interface module, ensuring smooth communication between the DI840 and upper-level systems
AC 800M Controller: ABB controller platform, working in synergy with the DI840 to build a complete control system
Installation and Maintenance
Pre-installation Preparation
Before installing the DI840, first “check up” the control cabinet to ensure temperature, humidity, and dust levels meet operational requirements—power disconnection is a non-negotiable rule, no room for carelessness. Mount the module on a compatible DIN rail per system planning, and prepare matching terminal units such as the TU810 series. Use appropriate cables for field wiring, strictly follow electrical standards, and handle shielding properly to maximize the module’s EMC performance. For redundant configurations, both modules must have identical hardware selection and parameter settings, like synchronized twins, to ensure seamless failover without signal loss.
Maintenance Recommendations
Routine maintenance for the DI840 is straightforward, focusing on regular checks of the module’s status indicators to monitor the operation of each channel. Keep the module and its surroundings clean to prevent dust buildup from impairing heat dissipation—dust in industrial sites is a “hidden killer” of signal stability. Always isolate power before any maintenance work, a fundamental safety requirement. Thanks to its modular design, module replacement is simple with plug-and-play functionality, requiring no complex rewiring—even novice maintenance staff can get the hang of it quickly.
Product Warranty
ABB’s quality control for the DI840 (3BSE020836R1) is rigorous from the factory floor. Every module undergoes stringent environmental stress screening, burn-in testing, and functional verification, like a “comprehensive physical exam” to ensure it can withstand long-term operation in harsh industrial environments plagued by dust and electromagnetic interference. The standard warranty period is 12 months, covering free repair or replacement for quality-related issues within the warranty term.
ABB’s global service network further reassures users, with a professional technical team on standby to provide end-to-end technical support including installation guidance, fault diagnosis, firmware updates, and spare parts supply, ensuring reliable technical backing for the DI840 throughout its entire lifecycle.
