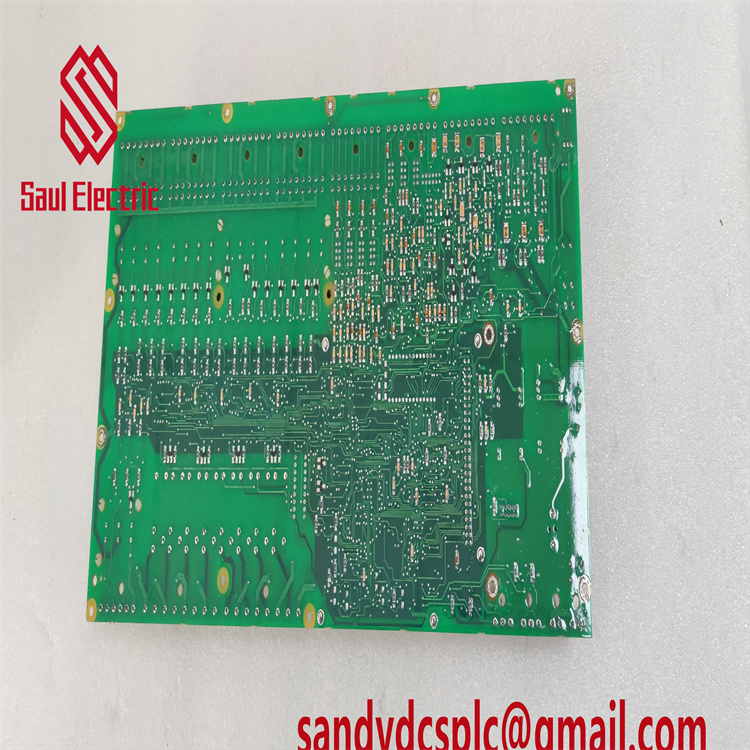

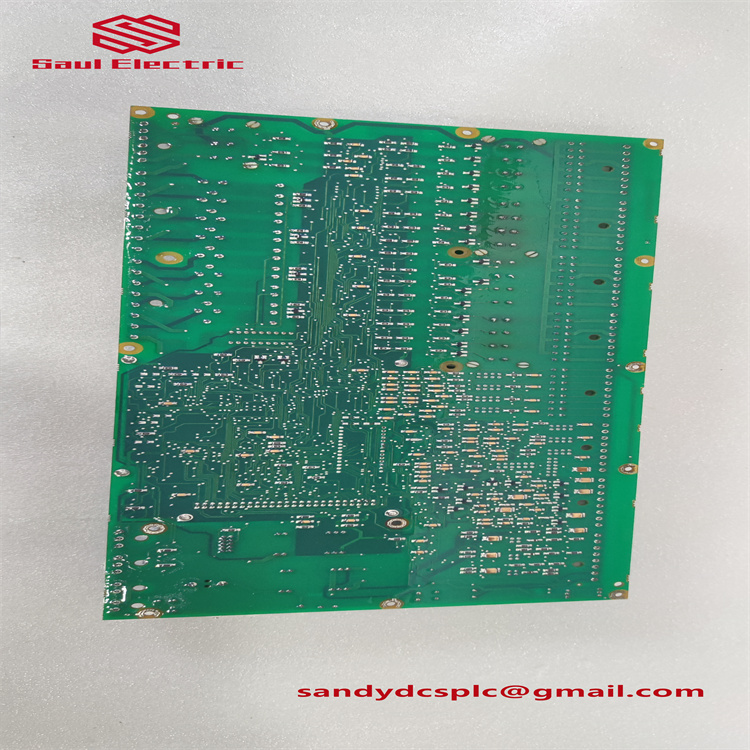

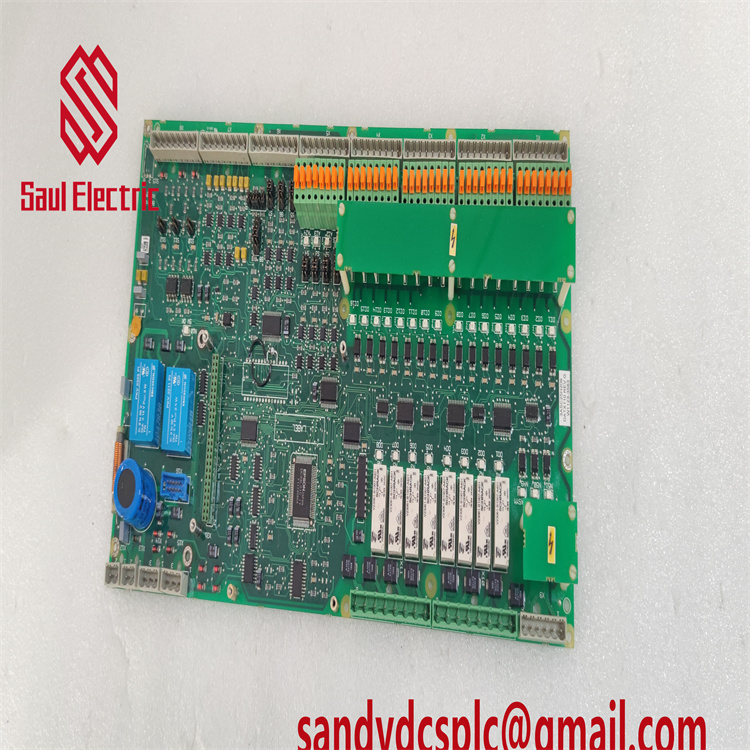

Brand Model: ABB DAPI100 (3AST000929R109)
Product Name: Ethernet Communication Interface Module
Warranty: 2 years
Weight: 0.8 kg
Origin: Sweden
Inventory: Limited stock available
Delivery Time: 5–10 days after payment

Get a Quote
Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Overview

The ABB DAPI100 (model 3AST000929R109) is a high-performance Ethernet communication interface module designed for industrial automation systems, enabling seamless integration of ABB devices with Ethernet-based networks. Engineered to bridge legacy systems and modern industrial protocols, this module serves as a critical component for remote monitoring, data exchange, and centralized control in manufacturing, energy, and process industries .



As a smart communication gateway, the DAPI100 supports multiple Ethernet protocols (e.g., Modbus TCP, Profinet, Ethernet/IP) to facilitate interoperability between ABB controllers (e.g., AC800M, Freelance 2000 DCS) and third-party devices. Its compact design (234 mm depth × 112.5 mm width) and DIN rail mounting capability optimize space in control cabinets, while the 24 VDC power supply ensures stable operation in harsh environments . The module’s hot-swappable feature allows for maintenance without system downtime, enhancing operational continuity.

Technical Specifications

Parameter Name Parameter Value
Product Model DAPI100 (3AST000929R109)
Manufacturer ABB
Product Type Ethernet Communication Interface Module
Communication Protocols Modbus TCP, Profinet, Ethernet/IP (compatibility varies by firmware version)
Interface 1× RJ45 Ethernet port, 1× RS485 for legacy systems
Power Supply 24 VDC ±15%
Current Consumption ≤500 mA
Data Rate 10/100 Mbps
Operating Temperature -20°C to +60°C
Physical Dimensions 234 mm (depth) × 112.5 mm (width) × 80 mm (height)
Weight 0.8 kg
Certifications CE, EN 61000-6-4 (EMC immunity), EN 61000-6-2 (EMC emission)

Main Features and Advantages

  1. Multi-Protocol Support:
    The DAPI100 acts as a protocol translator, enabling ABB drives, PLCs, and HMIs to communicate with non-ABB systems. For example, it can convert ABB’s proprietary protocols to Modbus TCP for integration with SCADA systems .
  2. High-Speed Data Transfer:
    With 10/100 Mbps Ethernet connectivity, the module ensures real-time data exchange for critical applications like predictive maintenance and remote diagnostics .
  3. Rugged Industrial Design:
    Built to withstand IP20-rated environmental conditions, the DAPI100 resists dust and vibrations, making it suitable for factory floors and outdoor installations .
  4. Flexible Configuration:
    Users can configure communication parameters via ABB’s Freelance Engineering Workbench or third-party tools, supporting both master and slave modes for network topology flexibility .
  5. Diagnostic Capabilities:
    LED indicators provide real-time status monitoring for power, communication links, and protocol errors, simplifying troubleshooting .

Application Areas

  1. Industrial Automation:
    • Integrates ABB AC800M controllers with Modbus TCP-compatible sensors and actuators in manufacturing lines, enabling centralized process optimization .
    • Bridges Freelance 2000 DCS with Ethernet-based HMIs (e.g., ABB CP450-T-ETH) for real-time visualization of plant-wide operations .
  2. Energy Management:
    • Connects ABB REF615 protection relays to cloud-based energy management platforms, facilitating remote monitoring of power grids and renewable energy systems .
    • Enables Ethernet-APL communication in chemical plants, ensuring reliable data transmission from field devices to control systems .
  3. Building Automation:
    • Interfaces ABB’s i-bus® KNX system with third-party HVAC controllers, supporting smart building applications like energy-efficient lighting and climate control .

Related Products

  • ABB AC800M PM864A: A control processor module that pairs with DAPI100 for large-scale process automation .
  • ABB CP450-T-ETH: A 10.4-inch HMI panel for monitoring DAPI100-connected devices in real time .
  • ABB ACS880 Drives: Variable-speed drives that use DAPI100 to communicate with PLCs via Modbus TCP .
  • ABB TM15 Terminal Block: Simplifies wiring connections for DAPI100, enhancing installation efficiency .

Installation and Maintenance

Installation:



  • Mount the DAPI100 on a DIN rail using standard clips, ensuring a 20 mm clearance for heat dissipation.
  • Connect the 24 VDC power supply and Ethernet/RS485 cables. Use shielded Ethernet cables to minimize electromagnetic interference .
  • Configure protocols and IP settings via ABB’s DriveWindow LT software or web-based interface .



Maintenance:



  • Regularly check LED indicators for communication errors. Replace faulty modules using hot-swap functionality to avoid downtime .
  • Update firmware quarterly to support new protocols and improve security. ABB’s Ability™ Remote Support can assist with remote diagnostics .
  • Clean the module’s surface with a dry cloth and inspect terminal connections in high-vibration environments .

Product Guarantee

ABB provides a 2-year warranty for the DAPI100, covering defects in materials and workmanship. The module meets CE and EN 61000 standards for EMC and environmental reliability. ABB’s global service network offers 24/7 technical support, spare parts, and training to ensure optimal performance .



HS:7326909000
