Description

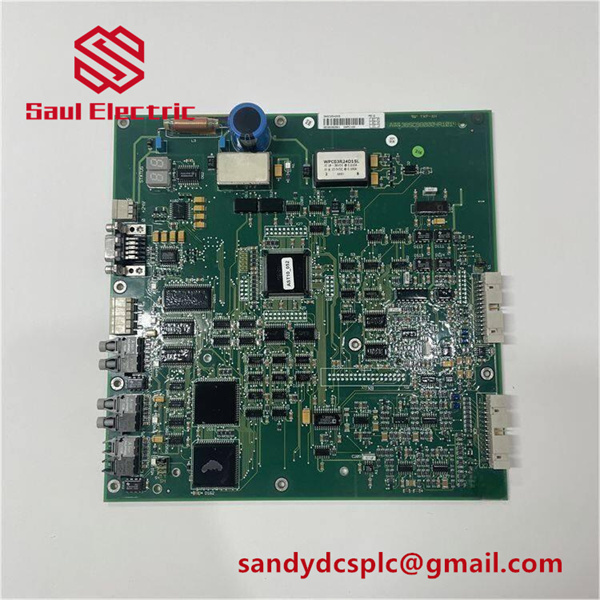

ABB DAPC100 3ASC25H209 Product Description
Product Overview
The ABB DAPC100 3ASC25H209 control board stands as a core component within the ACSM1 series and AC 800M controller family—crafted with ABB’s signature precision, it acts as the “neural hub” of industrial automation control systems. Interestingly enough, its core mission is straightforward: it captures raw signals from various sensors and actuators, converts them into digital language understandable by control systems, and then sends out precise control commands to drive actuators. From start to finish, it enables accurate data collection and real-time equipment monitoring.
Built with high-quality components and advanced manufacturing processes, this control board delivers steady performance even in harsh industrial environments rife with dust and intense electromagnetic interference. It supports multiple communication protocols and interfaces, allowing users to flexibly connect with other control devices, sensors, or actuators based on on-site needs—no unnecessary restrictions. Typically installed inside control cabinets, it specializes in managing and controlling electrical equipment in switchgear, truly earning its reputation as a “reliable workhorse” for building efficient, stable industrial automation systems.
In fields like power systems, industrial automation, and process control, this control board has consistently delivered impressive results. Its robust signal processing capabilities, proven reliability, and flexible configuration options enable seamless adaptation to complex industrial scenarios. Behind this performance lies ABB’s years of technical accumulation and innovation in industrial automation—offering users a control solution they can truly trust.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DAPC100 3ASC25H209 |
| Manufacturer | ABB |
| Product Type | Control Board |
| Input Channels | 16 digital input channels |
| Output Channels | 16 digital output channels |
| Power Supply Voltage | 24 VDC |
| Power Consumption | 5 W |
| Operating Temperature Range | -40℃~70℃ |
| Storage Temperature Range | -40℃~85℃ |
| Protection Rating | IP20 |
| Module Dimensions | 70×105×73 mm |
| Installation Method | Rail mounting |
| Communication Protocol | Supports multiple communication protocols |
Key Features and Advantages
The ABB DAPC100 3ASC25H209 has gained widespread recognition in industrial automation for good reason. Its strong signal processing capability is a standout trait—whether signals come from sensors or actuators, it receives and processes them efficiently, ultimately enabling precise data collection and equipment control. This proves particularly valuable in scenarios requiring rapid response times.
Who wouldn’t want equipment that remains stable even in harsh conditions? This control board delivers exactly that. Premium components paired with advanced manufacturing processes ensure high reliability amid extreme temperatures and strong interference. Its excellent resistance to electromagnetic interference and noise guarantees the accuracy and stability of data transmission.
Flexible programming and configuration options are likely another major selling point. Supporting multiple programming languages, it allows users to customize configurations and programming based on specific needs. Coupled with user-friendly interfaces and debugging tools, it simplifies post-installation fault diagnosis and routine maintenance. What’s more, its compatibility with multiple communication protocols and interfaces lets users build automated control systems tailored to real-world scenarios—no binding to a single device.
Its compact design is a boon for control cabinets with limited space. Measuring just 70×105×73 mm, it installs effortlessly, significantly boosting system integration and space utilization. With an operating temperature range of -40℃~70℃, it performs reliably in extreme environments—whether in freezing outdoor settings or scorching workshops—meeting the demands of diverse industrial applications.
Application Fields
From traditional manufacturing to emerging automation sectors, this control board’s presence is almost ubiquitous, a testament to its strong adaptability. In industrial automation, it manages and controls electrical equipment in switchgear, automating production processes and reducing human error. In the CNC machinery industry, it finds use in numerical control equipment across metallurgy, oil and gas, petrochemicals, chemicals, papermaking, and printing—delivering precise motion control and process monitoring.
Power systems represent another critical application area. In substation automation and power distribution protection systems, its high reliability directly impacts the safe, stable operation of power grids—serving as an “invisible guardian” of power security. Within robot systems, it acts as a DCS system accessory and robot component, providing precise control to ensure every movement of industrial robots is accurate.
Beyond these, it excels in various process control scenarios, including pipeline control, equipment monitoring, and signal processing. Its powerful functions and flexible configurations enable adaptation to the unique needs of different industries, offering customers customized control solutions. Truly, whether in mature traditional industries or fast-growing emerging automation fields, it delivers exceptional performance and creates tangible value for users.
Related Products
DATX110 3ASC25H209: I/O terminal board, designed to work with DAPC100 3ASC25H209 for signal distribution and processing
DAPU100 3ASC25H204: Same-series control board, complementary to DAPC100 for flexible system configuration
DATX100 3ASC25H208: System I/O board, compatible with DAPC100 to enhance system expandability
DASD001 3ASC25H241: Thyristor module, specialized for power control applications
DASA110 3ASC25H271: Power supply module, providing stable power support for control systems
DASG218 3ASC25H272: Functional module, suitable for 380-400V AC systems
DADT 100 3ASC25H211: Rotor frequency feedback module, primarily used in motor control systems
Installation and Maintenance
Pre-installation Preparation
Before installing the control board, it’s crucial to verify that the control cabinet environment meets requirements—key parameters like temperature, humidity, and protection rating must align with specifications to avoid operational issues later. Always disconnect power during installation and follow ABB’s wiring guidelines strictly. Incorrect power polarity or signal wire connections can lead to equipment failure, so attention to detail is essential. For rail mounting, select the appropriate DIN rail and ensure secure fastening to prevent loosening during operation. Additionally, anti-static measures are non-negotiable, as static electricity can easily damage precision components.
Maintenance Recommendations
Regularly inspect the operating status of the DAPC100 3ASC25H209, including power supply stability, signal indicator functionality, and heat dissipation. Keep the area around the control board clean to prevent dust accumulation, which can hinder heat dissipation and potentially cause overheating over time. Preventive maintenance is advisable for long-running equipment—periodically check terminal connections for tightness and module performance. In case of faults, do not attempt disassembly or repair yourself. Contact professional technicians promptly to avoid further damage.
Product Guarantee
ABB provides comprehensive quality assurance and after-sales service for the DAPC100 3ASC25H209 control board. Every unit undergoes rigorous quality testing before leaving the factory, ensuring a 100% qualification rate. During the warranty period, free replacement is offered for quality issues arising from normal use—ABB never evades responsibility or delays resolutions, a commitment that inspires genuine confidence.
Even for discontinued products, ABB offers alternative model recommendations and equipment replacement support, ensuring uninterrupted operation for users without disruption due to product obsolescence. The 7×24-hour technical service hotline is more than a formality—users receive responses to inquiries within 1 hour. For out-of-warranty but still in-production products, only relevant accessory costs are charged for quality issues, with no additional service fees.
Furthermore, ABB provides lifelong free system software upgrades and access to related technical documentation. The company also conducts regular customer follow-ups to understand product usage and address issues promptly—this customer-centric service philosophy stems from unwavering confidence in product quality.
