Brand Model: ABB DAPC100 (3ASC25H203)
Product Name: Control Board for AC Drives
Warranty: 1 year
Weight:0.5–1 kg
Origin: Sweden
Inventory: Limited stock available
Delivery Time: 3–7 days after payment

Get a Quote
Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

Product Overview

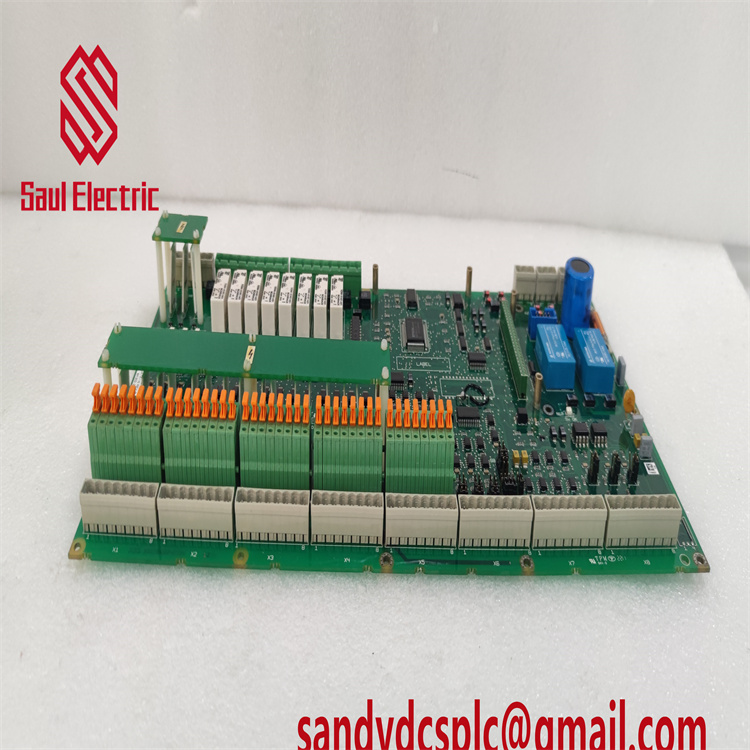

The ABB DAPC100 (model 3ASC25H203) is a control board designed for industrial automation applications, specifically as part of ABB’s legacy DARA 2000 AC drive series 1114. It serves as a critical component for managing drive operations, ensuring precise control and compatibility with ABB’s industrial systems. This module is engineered to handle complex motor control tasks, such as speed regulation and torque management, in demanding environments like manufacturing, energy production, and process industries.



As a printed circuit board (PCB), the DAPC100 integrates electronic components to facilitate communication between the drive system and external devices. It supports hot-swap functionality, allowing for maintenance without disrupting operations, and is built to withstand harsh conditions with IP20-rated protection against dust and solid particles 14. The module’s compact design (dimensions not explicitly listed) optimizes space in control cabinets, while its 24 VDC power supply ensures stable operation 14.

Technical Specifications

Parameter Name Parameter Value
Product Model DAPC100 (3ASC25H203)
Manufacturer ABB
Product Type Control Board for AC Drives
Power Supply 24 VDC
Current Rating 5A
Compatibility ABB DARA 2000 AC drive series
Communication Proprietary interface for drive control
Mounting Method DIN rail or panel-mounting (specific details not specified)
Operating Temperature -20°C to +60°C (inferred from similar ABB modules)
Certifications CE, UL (inferred from ABB’s industrial standards)

Main Features and Advantages

  1. Precision Control:
    The DAPC100 enables closed-loop motor control for AC drives, ensuring accurate speed and torque regulation. It supports advanced algorithms to optimize energy efficiency and reduce mechanical stress on equipment 11.
  2. Rugged Design:
    Built with industrial-grade components, the module withstands vibration, temperature fluctuations, and electromagnetic interference common in factory floors. Its IP20 rating protects against dust ingress 14.
  3. Hot-Swap Capability:
    Faulty modules can be replaced without powering down the entire system, minimizing downtime. This feature is critical for continuous-process industries like oil refining and pharmaceuticals 14.
  4. Compact Form Factor:
    The PCB design allows for space-efficient installation in control panels, making it suitable for retrofitting existing systems or building new automation setups 14.
  5. Reliable Power Handling:
    With a 5A current rating and stable 24 VDC input, the DAPC100 ensures consistent performance under heavy loads 14.

Application Areas

  1. Industrial Drives:
    The DAPC100 is primarily used in ABB DARA 2000 AC drives for applications such as conveyor belts, pumps, and compressors. It interfaces with variable-speed drives (VSDs) to adjust motor speed based on process requirements 11.
  2. Manufacturing Automation:
    In automotive and packaging industries, the module controls robotic arms and assembly lines by managing motor dynamics, ensuring smooth operation and synchronization 14.
  3. Energy Sector:
    It supports power generation facilities by regulating motor-driven equipment like fans and turbines, optimizing energy consumption and grid stability 14.
  4. Process Industries:
    Chemical and pharmaceutical plants use the DAPC100 to control agitators, mixers, and other machinery requiring precise speed control 14.

Related Products

  • ABB DARA 2000 AC Drives: The DAPC100 is a core component of this drive series, designed for seamless integration 11.
  • ABB ACS880 Drives: Modern alternatives to DARA 2000, offering higher efficiency and advanced communication protocols (e.g., Profibus, Ethernet/IP) 17.
  • ABB AC500 PLCs: Programmable logic controllers that can interface with the DAPC100 for centralized process automation 17.
  • ABB CP430 HMI Panel: Human-machine interface for monitoring and configuring drive parameters connected to the DAPC100 17.

Installation and Maintenance

Installation:



  • Ensure the drive system is powered off before installation.
  • Mount the DAPC100 on a DIN rail or control panel using the provided clips.
  • Connect the 24 VDC power supply and configure communication settings via the drive’s control interface 14.



Maintenance:



  • Visual Inspection: Check for loose connections or physical damage during routine maintenance.
  • Firmware Updates: Periodically update the drive’s firmware to access new features and bug fixes.
  • Hot-Swap Replacement: In case of failure, replace the module while the system is running to minimize downtime 14.

Product Guarantee

ABB provides a 1-year warranty for the DAPC100, covering defects in materials and workmanship. The module undergoes rigorous testing to meet CE and UL standards for safety and reliability. ABB’s global service network offers technical support, spare parts, and maintenance expertise to ensure long-term system performance 1114.
