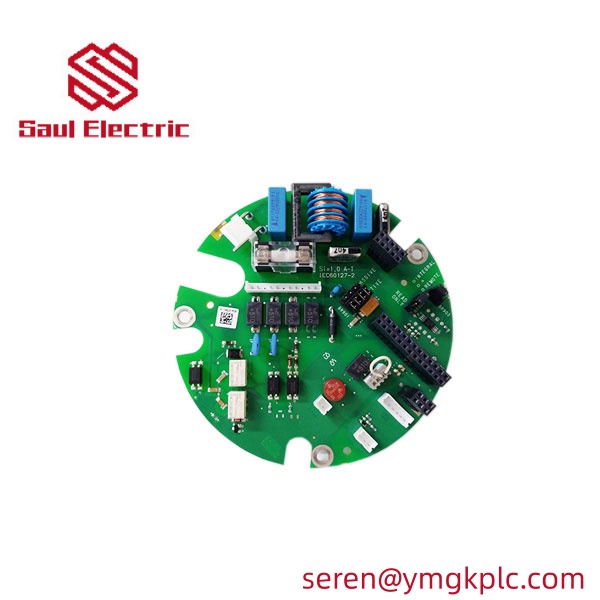

ABB D685A1156U01 | Electronic Signal Converter Board for Precision Process Instrumentation

Description

1. Product Overview

The ABB D685A1156U01 is a high-density Electronic Converter Module engineered to serve as the computational core for ABB’s high-precision process instrumentation. It specializes in capturing complex, low-amplitude multi-variable signals from primary sensors—such as mass flow tubes or thermal elements—and translating them into highly accurate real-time process values.

Featuring an optimized layout for enhanced electromagnetic compatibility (EMC), the D685A1156U01 ensures maximum signal integrity within electrically noisy industrial plant environments. As a vital spare part for maintenance and repair operations, this slide-in electronic insert allows for rapid replacement, helping plants minimize diagnostic downtime and avoid full instrument replacements.

Key Applications:

• Coriolis Mass Flow Systems: High-accuracy measurement of mass flow, density, and temperature in fluid processes.
• Thermal Gas Mass Flow: Precise tracking of gas consumption and aeration loops in chemical processing.
• Refineries & Petrochemical: Safe and accurate data acquisition of volatile process fluids.
• Industrial Retrofitting: Restoring factory-grade baseline measurements to legacy transmitter bodies.

2. Technical Features

3. Procurement Process

1. Technical Validation: We verify your instrument’s exact serial number and existing firmware version to confirm the D685A1156U01 matches your application’s unique parameters.
2. Formal Quotation: Get a comprehensive quote detailing competitive tiered pricing, immediate stock availability, and global express shipping methods.
3. Order Confirmation: Finalizing quantities, shipping details, and processing any required industrial conformity documents (e.g., Certificate of Conformance, CoC).
4. Sales Agreement: Issuance of a Proforma Invoice (PI) for secure wire transfer processing.
5. Secure Payment: Payment safely accepted via standard T/T (Bank Wire Transfer).
6. Pre-Shipment Verification: A 100% thorough inspection of the module’s component visual state, gold-finger connectors, and original ABB factory labels.
7. Industrial-Grade Packaging: Securely packed in custom anti-static, shock-absorbing vacuum material for international transit safety.
8. Global Logistics: Rapid door-to-door delivery executed via premium couriers like DHL, FedEx, or UPS.

4. Products Showcase (Photos & Video)

5. Related Models

• ABB D674A905U01 (Electromagnetic Flowmeter Electronic Insert)
• ABB D674A906U01 (Electromagnetic Flowmeter Converter Board)
• ABB FET321 / FET521 (ProcessMaster Transmitter Series)
• ABB TZIDC Series (Intelligent Digital Positioners)

6. Warranty & After-Sales

• 12-Month Global Warranty: Full 1-year coverage ensuring absolute functionality against manufacturing or software defects.
• 100% Authenticity Guaranteed: We supply only genuine industrial ABB components for seamless compatibility with your facility’s field infrastructure.
• Logistics Tracking: Proactive tracking updates and structured clearance documentation for smooth customs handling worldwide.

7. FAQ

Q: Does the D685A1156U01 board require specialized programming tools on site?

No, initialization is typically done via the transmitter’s local display menu or through standard HART/fieldbus communicators once the board is seated. You will need to enter the original sensor’s calibration factors (e.g., size, zero point, cal factor) located on the transmitter housing nameplate.

Q: Can this module be swapped while the transmitter housing is open in the field?

Yes, but the loop must be safely de-energized before pulling or inserting the card to avoid any voltage spikes. If the unit is located in a hazardous area (ATEX Zone 1/Div 1), ensure standard hot-work permit procedures or gas-clearance procedures are followed before loosening the enclosure cover.

Q: How can I confirm that the 1156U01 suffix matches my broken board?

ABB utilizes specific U-suffixes to distinguish between software loads, input power configurations (e.g., 24V DC vs 230V AC), or specialized output channels. Matching the exact suffix code guarantees a direct, hassle-free replacement.
