Description

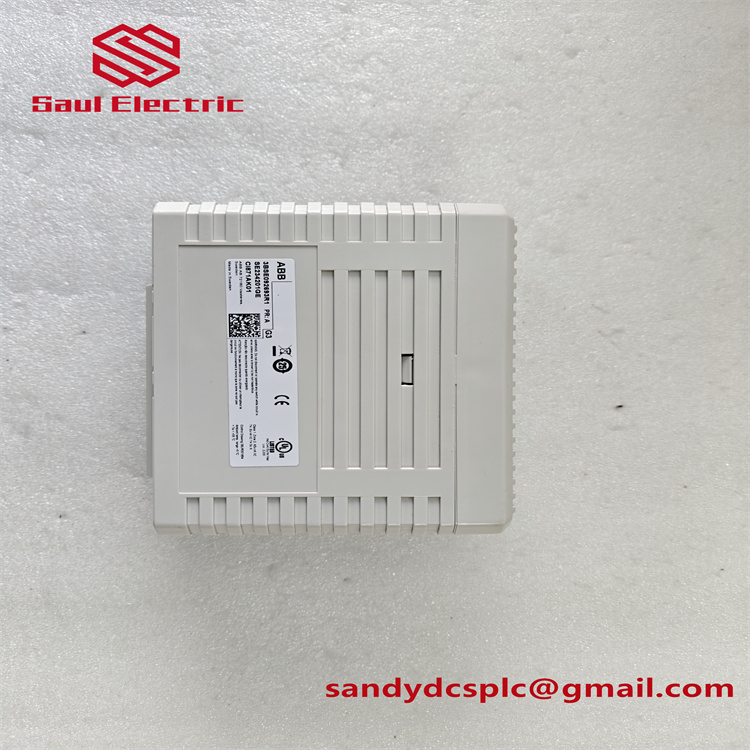

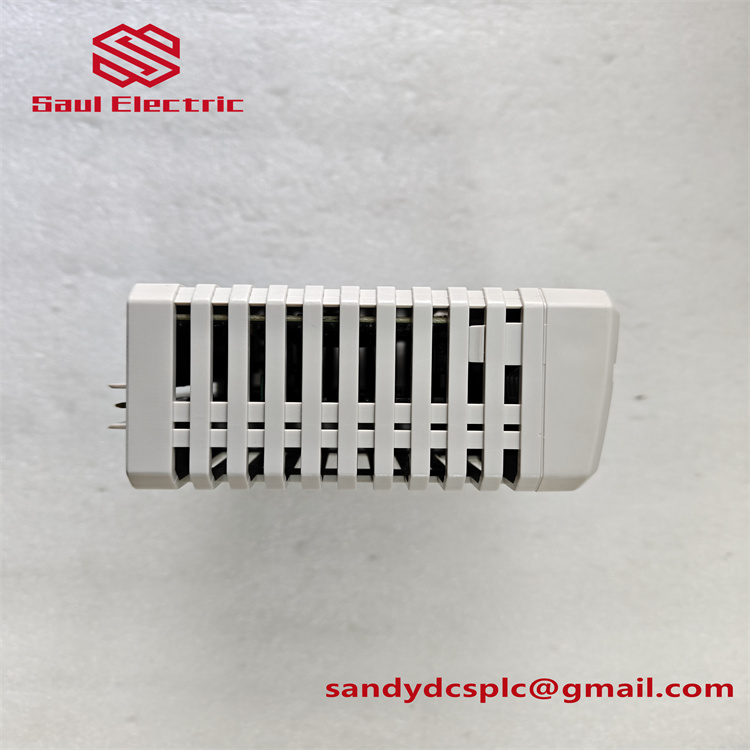

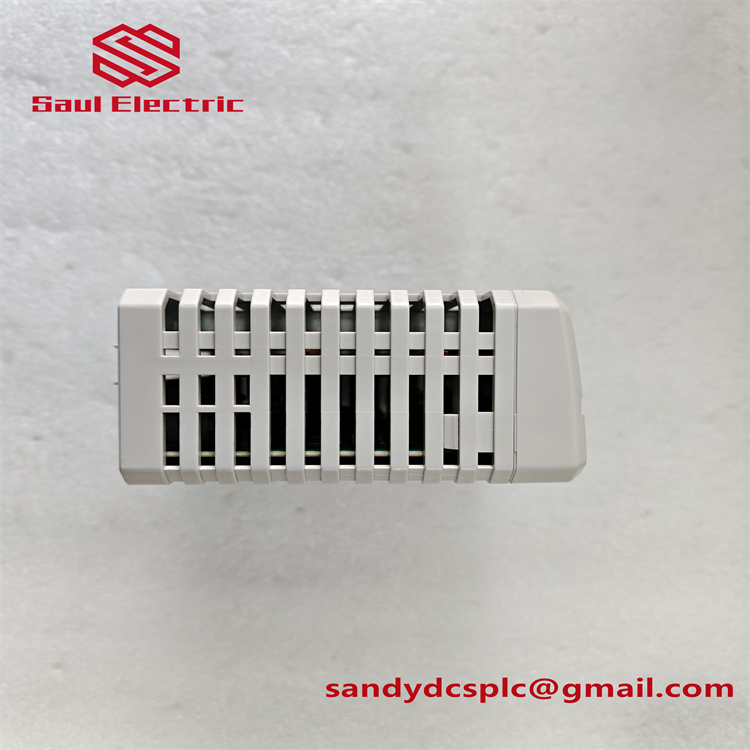

ABB CI873K01 3BSE058899R1 is a high-performance Ethernet/IP communication interface module designed for industrial automation systems, specifically engineered to enable seamless integration of EtherNet/IP and DeviceNet protocols within ABB’s AC 800M controller family. As a critical component of the System 800xA architecture, this module serves as a bridge between field devices, PLCs, and higher-level control platforms, ensuring reliable data exchange across complex industrial networks. With its advanced protocol support, redundant capabilities, and rugged design, the ABB CI873K01 3BSE058899R1 is ideal for applications requiring high-speed, real-time communication in harsh environments.
The module supports EtherNet/IP and DeviceNet protocols, making it versatile for diverse automation setups. It features dual RJ45 Ethernet ports with auto-negotiation for 10/100 Mbps connectivity, allowing both single and redundant network configurations to minimize downtime. Designed for industrial resilience, the CI873K01 3BSE058899R1 operates reliably across a wide temperature range (-40°C to +70°C) and complies with CE, UL, and CSA certifications, ensuring compatibility with global standards. Its compact form factor (59 mm width) and hot-swap capability further enhance its suitability for space-constrained control cabinets. The module also supports the CEX bus logic, enabling high-speed communication with AC 800M CPU modules and expansion units.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | CI873K01 3BSE058899R1 |
| Manufacturer | ABB |
| Product Type | Communication Interface Module |
| Communication Protocols | EtherNet/IP, DeviceNet, CEX Bus |
| Interface Type | 2× RJ45 Ethernet (10/100 Mbps, auto-adaptive) |
| Power Supply | DC 24V (±10%), 8-12W power consumption |
| Operating Temperature | -40°C to +70°C |
| Protection Class | IP20 (suitable for indoor control cabinets) |
| Redundancy Support | Module redundancy (dual-channel configuration with TP867 baseplate) |
| Certifications | CE, UL, CSA |
| Physical Dimensions | 59 mm (width) × 186 mm (height) × 127.5 mm (depth) |
| Weight | 0.7 kg |
Main Features and Advantages
Multi-Protocol Connectivity: The ABB CI873K01 3BSE058899R1 supports EtherNet/IP and DeviceNet, enabling seamless integration of industrial devices such as PLCs, sensors, and drives. Its CEX bus logic ensures high-speed data exchange with AC 800M controllers, making it suitable for distributed control systems (DCS) and machine automation.
Reliable Redundancy: Built with dual Ethernet ports and module redundancy support, the module ensures continuous operation even in the event of a single-point failure. This is critical for applications where downtime is unacceptable, such as power generation and process automation. The module’s hot-swap capability allows for maintenance without disrupting system operation.
Industrial IoT Integration: The CI873K01 3BSE058899R1 supports S200 I/O via 200-A ENTR adapters, enabling direct connection to remote I/O devices. This feature enhances system flexibility and reduces cabling complexity, aligning with Industry 4.0 initiatives.
Ease of Use: The module is configured via ABB Control Builder M software, which supports GSDML files for DeviceNet slave setup. Its plug-and-play design and online firmware updates minimize downtime during system upgrades, while the compact form factor and tool-free installation reduce deployment complexity.
Application Areas
Manufacturing Automation: The ABB CI873K01 3BSE058899R1 plays a pivotal role in production lines, connecting robots, sensors, and PLCs via EtherNet/IP. It supports high-speed data transmission for motion control applications, such as automotive assembly lines and precision machinery.
Process Industries: In petrochemical and metallurgical plants, the module integrates field devices like valves, analyzers, and drives into a centralized DCS. Its DeviceNet compatibility allows seamless communication with legacy equipment, ensuring backward compatibility.
Power Systems: For power generation and distribution, the CI873K01 3BSE058899R1 connects intelligent electronic devices (IEDs) and SCADA systems, enhancing grid stability and efficiency. Its CEX bus integration enables real-time data exchange with AC 800M controllers for critical power management.
Smart Factories: By enabling EtherNet/IP-based IIoT connectivity, the module bridges operational technology (OT) and information technology (IT) systems, facilitating predictive maintenance and remote diagnostics. This is essential for optimizing overall equipment effectiveness (OEE) and reducing downtime.
Related Products
- CI871K01 3BSE056797R1: A single-channel Modbus TCP communication module for simpler automation setups, often used alongside the CI873K01 3BSE058899R1 in hybrid network architectures.
- TP867 Baseplate: Required for mounting the CI873K01 3BSE058899R1, providing electrical connections to the AC 800M controller 背板.
- AC 800M CPU Modules: Central processing units that work with the CI873K01 3BSE058899R1 to execute control logic and manage communication traffic.
- AI835 3BSE008520R1: A thermocouple input module for temperature monitoring, often paired with the CI873K01 3BSE058899R1 in energy and HVAC systems.
- DO820 3BSE008514R1: A digital output module for controlling actuators, complementing the CI873K01 3BSE058899R1 in process automation.
Installation and Maintenance
Installation Preparation:
Ensure the power supply is disconnected and the environment meets the CI873K01 3BSE058899R1’s operating requirements (temperature: -40°C to +70°C; altitude: ≤2000m). Mount the module on a DIN rail using the TP867 baseplate, ensuring secure Ethernet and power connections. Configure the module via ABB Control Builder M, assigning IP addresses and protocol settings according to the network topology.
Ensure the power supply is disconnected and the environment meets the CI873K01 3BSE058899R1’s operating requirements (temperature: -40°C to +70°C; altitude: ≤2000m). Mount the module on a DIN rail using the TP867 baseplate, ensuring secure Ethernet and power connections. Configure the module via ABB Control Builder M, assigning IP addresses and protocol settings according to the network topology.
Maintenance Advice:
Regularly inspect the module’s status indicator lights to detect 异常. Clean dust from the surface to maintain optimal thermal performance. For firmware updates, use the online upgrade feature to avoid system downtime. In case of persistent errors, consult the troubleshooting guide or contact ABB’s technical support for assistance.
Regularly inspect the module’s status indicator lights to detect 异常. Clean dust from the surface to maintain optimal thermal performance. For firmware updates, use the online upgrade feature to avoid system downtime. In case of persistent errors, consult the troubleshooting guide or contact ABB’s technical support for assistance.
Product Guarantee
ABB stands behind the CI873K01 3BSE058899R1 with a 1-year warranty covering defects in materials and workmanship. The module undergoes rigorous testing to ensure compliance with industry standards, and ABB’s global support network provides prompt technical assistance for installation, configuration, and repairs. By choosing the CI873K01 3BSE058899R1, customers gain access to ABB’s decades of expertise in industrial automation, ensuring long-term reliability and performance.
HS:7326909000
