Description

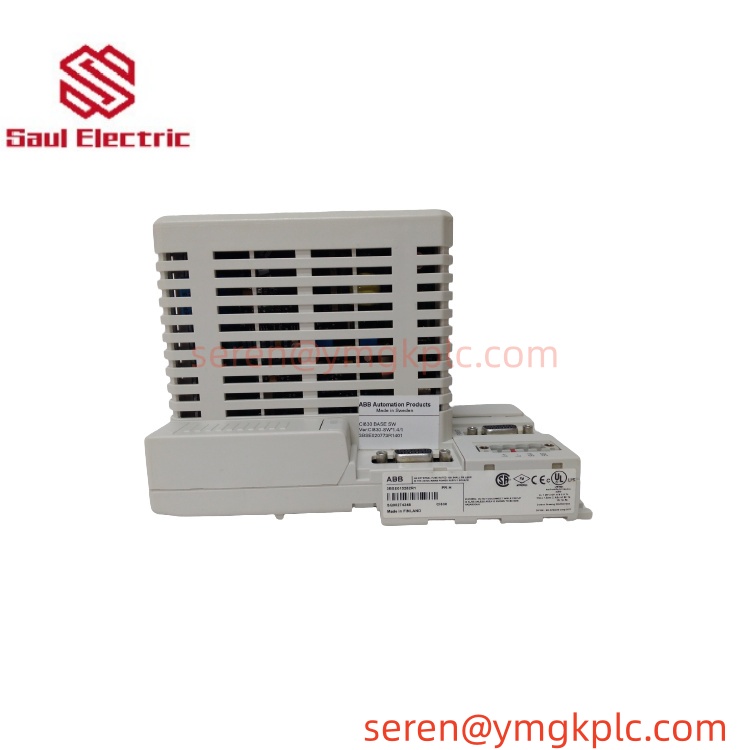

Product Overview

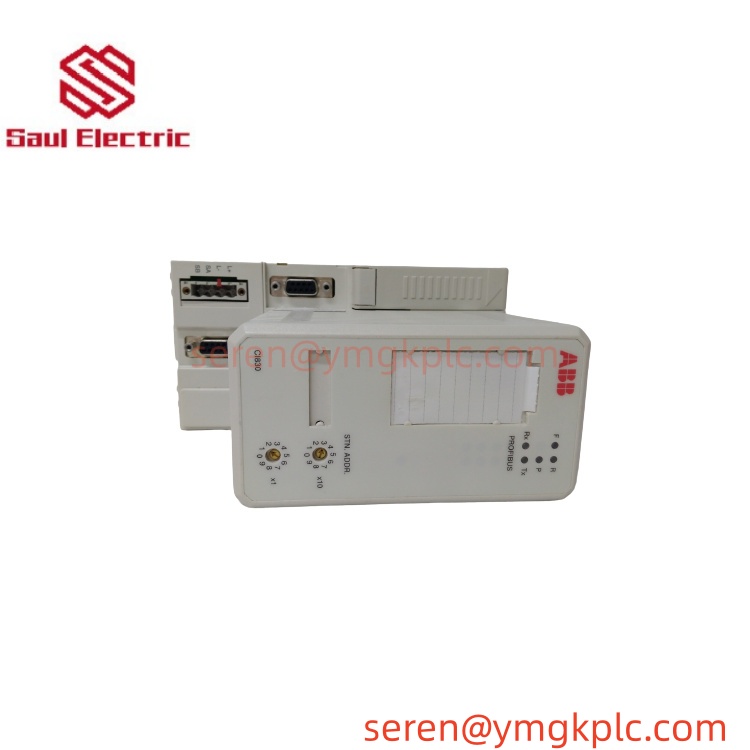

ABB CI830 3BSE013252R1 is a PROFIBUS DP‑V1 communication interface module for ABB AC 800M controller and System 800xA platform. It acts as a fieldbus gateway between the DCS controller and PROFIBUS‑DP slave nodes, supporting S800 remote I/O clusters and third‑party PROFIBUS‑DP field devices. This module realizes real‑time process data acquisition and control command transmission over PROFIBUS DP network, widely used for maintenance and retrofit of legacy ABB process automation systems.
Series
AC 800M / System 800xA is ABB’s flagship process DCS platform. The CEX‑bus communication interface family expands controller connectivity to multiple fieldbus standards including PROFIBUS‑DP, Modbus TCP, and FF, supporting S800 distributed I/O for heavy‑duty industrial process sitesABB.
Product Features
- Supports PROFIBUS‑DP‑V0 and DP‑V1 protocols, auto‑detects baud rate from 9.6 kbit/s up to 12 Mbit/s
- Connects maximum 12 S800 I/O clusters over ModuleBus; compatible with PROFIBUS‑DP third‑party slave devices
- DB9 PROFIBUS connector for fieldbus wiring; LED status indicators for bus diagnosis and fault indication
- Powered through CEX‑bus backplane, no external auxiliary power required
- Cabinet‑mount design for standard DCS rack installation
- Suitable for system retrofit and spare‑part replacement for existing 800xA installations
- Compliant with CE, UL safety certifications; designed for industrial cabinet environment IP20 ratingabb-drive….
Product Parameters
| Item | Details |
|---|---|
| Part Number | CI830 / 3BSE013252R1 |
| Brand | ABB |
| Series | AC800M / System 800xA S800 I/O |
| Product Type | PROFIBUS DP‑V1 Communication Interface |
| Protocol | PROFIBUS‑DP‑V0 / DP‑V1 |
| Baud Rate | 9.6 kbps ~12 Mbps auto‑detection |
| Fieldbus Connector | DB9 PROFIBUS port |
| Max S800 I/O Clusters | 12 clusters |
| Power Supply | CEX‑bus backplane 24 VDC |
| Power Consumption | 5W typical |
| Operating Temperature | ‑20 ℃ ~ +55 ℃ |
| Protection Class | IP20 (for cabinet installation) |
| Weight | Approx 0.6 kg |
| Dimension | 185 × 59 ×127.5 mm |
| Certification | CE, UL |
| Replacement Model | CI801 (for new‑build projects) |
Product Specifications
- Installation: Mounted on AC800M controller rack via CEX‑bus
- Storage temperature:‑40 ℃ ~ +70 ℃
- Relative humidity: 5‑95 %, non‑condensing
- Note: Not RoHS‑2 compliant, only for spare‑part repair use on pre‑2017 systems
Function
Build PROFIBUS‑DP fieldbus link for AC800M DCS controller; communicate with S800 remote I/O clusters; exchange I/O data with third‑party PROFIBUS‑DP slave instruments & drives; provide bus status LED diagnosis; transmit control commands and field process signals between controller and field‑bus devices.
Purpose
Fieldbus gateway interface for legacy ABB 800xA DCS systems, realizes PROFIBUS‑DP protocol interconnection for existing plant retrofit and spare‑part replacement.
Application Fields
- Petrochemical process automation
- Power plant DCS retrofit & maintenance
- Pulp and paper industry control
- Metallurgy heavy‑industry process control
- Water treatment plant automation
- Old‑generation ABB System 800xA site spare‑part replacement
