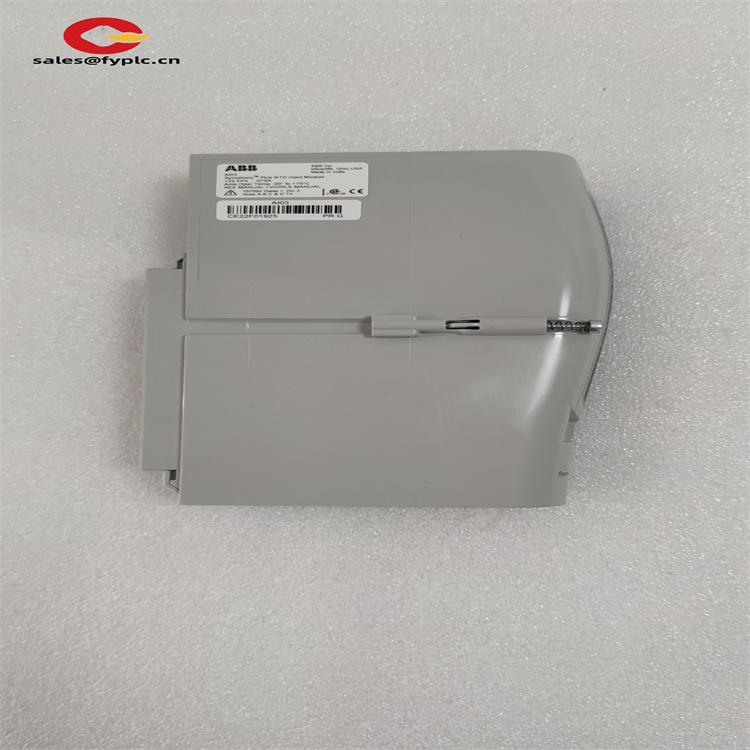

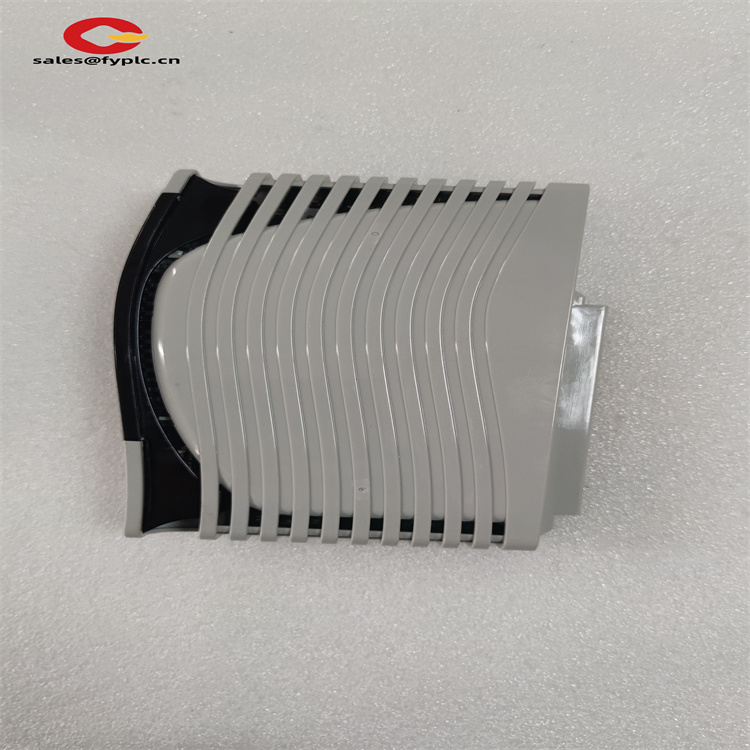

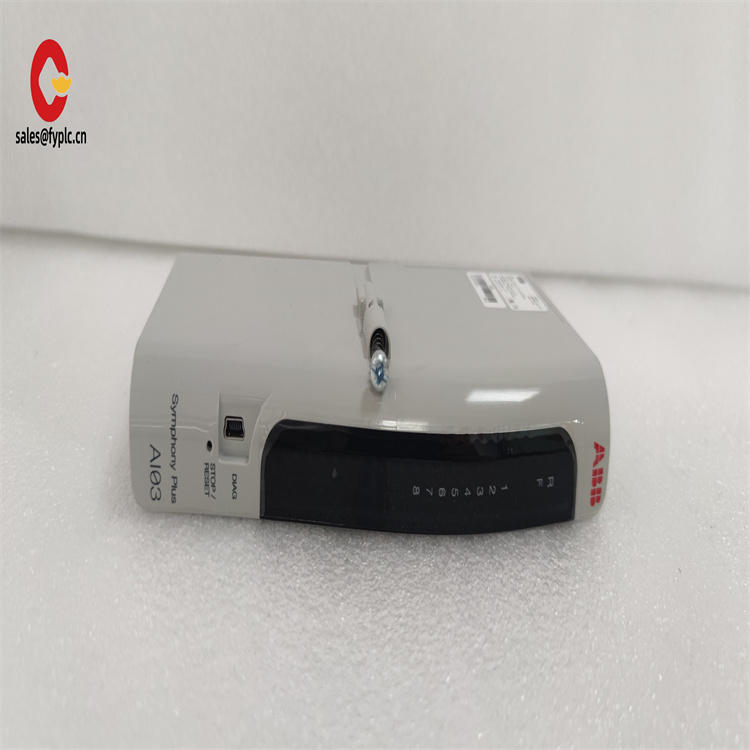

Brand Model: ABB AI03
Product Name: RTD Analog Input Module (SD Series I/O)
Warranty: 1 year
Size: 190 mm (height) x 27 mm (width) x 106 mm (depth)
Weight: 0.226 kg
Origin: Sweden
Inventory: Available (contact local distributors for stock levels)
Delivery Time: 3–5 business days for standard models; 3–5 weeks for custom configurations
Get a Quote
Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

The ABB AI03 is a high-performance analog input module designed for precise temperature measurement in industrial automation systems, particularly as part of ABB’s Symphony Plus distributed control system (DCS). It is engineered to handle resistance temperature detector (RTD) signals with exceptional accuracy and reliability, making it ideal for applications requiring real-time thermal monitoring in harsh environments. Below is a detailed overview based on official specifications and industry context:

Product Overview

The ABB AI03 (Hardware ID: AI03, Order Code: 1SFL577001R7011) is categorized as an SD Series I/O module within the Symphony Plus platform. It supports 8 individually configurable channels for 2/3/4-wire RTD inputs, enabling seamless integration with a wide range of temperature sensors. Key applications include power generation, oil & gas processing, chemical plants, and manufacturing, where precise temperature control is critical for operational safety and efficiency 1314.



This module features group isolation (1×8 channels) with 1500 V galvanic isolation to protect against electrical noise and surges. Its hot-swappable design allows maintenance without system downtime, while IP20-rated protection safeguards against dust and accidental contact. The AI03 interfaces with ABB’s Symphony Plus and 800xA control platforms, leveraging FC 221/222 function blocks for parameter configuration and diagnostics 1415.

Technical Specifications

Parameter Name Parameter Value
Product Model ABB AI03 (1SFL577001R7011)
Manufacturer ABB
Product Type RTD Analog Input Module (SD Series I/O)
Input Channels 8 (individually configurable for 2/3/4-wire RTDs)
RTD Types Supported PT100 (US/EU standards), Ni120, Cu53 (Chinese standard)
Resolution 16-bit with polarity
Accuracy ±0.1% of full-scale range (FSR = 500 Ω)
Sampling Rate 450 ms for all 8 channels
Isolation 1500 V galvanic isolation (field to logic), 1×8 group isolation
Power Supply 24 VDC ±10% (68 mA typical, 76 mA max)
Operating Temperature -40°C to +70°C
Storage Temperature -40°C to +85°C
Dimensions 190 mm (height) x 27 mm (width) x 106 mm (depth)
Weight 0.226 kg
Environmental Compliance IP20, IEC 61000-6-4 (EMC), ISA-S71.04 G1/G3
Safety Certification CE, UL 508, RoHS
Mounting 35 mm DIN rail (horizontal/vertical orientation)

Key Features and Advantages

Precision Temperature Measurement:



  • 16-bit resolution ensures accurate RTD signal conversion, critical for applications like steam turbine temperature monitoring in power plants .
  • Automatic calibration eliminates manual adjustments, reducing setup time and errors.
  • Open circuit detection (≤5 seconds) and noise rejection (-70 dB normal mode, -90 dB common mode) enhance signal integrity in noisy environments 14.



Flexible Configuration:



  • 8 independent channels support mixed RTD types (e.g., PT100 and Ni120) in the same module, minimizing hardware complexity .
  • Hot-swappable design allows module replacement without disrupting operations, improving system uptime .
  • Mini USB interface enables local diagnostics and parameter adjustment without additional tools 14.



Robust Industrial Design:



  • Wide temperature range (-40°C to +70°C) and ISA-S71.04 G3 corrosion resistance make it suitable for extreme environments, such as offshore platforms and chemical reactors 14.
  • IP20 protection and vibration/shock resistance (IEC 60068-2-6/27) ensure reliability in rugged industrial settings.



Efficient Integration:



  • HBS01-CJC/VBS01-CJC mounting bases provide cold junction compensation and power distribution for RTD signals 14.
  • Symphony Plus compatibility allows seamless integration with ABB’s control platforms, enabling centralized monitoring and control.

Application Areas

  1. Power Generation:
    • Monitoring steam turbine temperatures and boiler processes to optimize energy efficiency and prevent overheating .
    • Ensuring precise temperature control in nuclear reactors and renewable energy systems (e.g., geothermal plants).
  2. Oil & Gas:
    • Managing temperature variations in pipelines, compressor stations, and LNG storage tanks.
    • Integrating with smart RTDs in offshore platforms for real-time diagnostics 15.
  3. Chemical & Petrochemical:
    • Controlling reactor temperatures in polymerization processes and distillation units.
    • Safeguarding against thermal runaway in hazardous material handling 14.
  4. Manufacturing:
    • Regulating oven temperatures in automotive paint shops and food processing lines.
    • Monitoring machinery for predictive maintenance (e.g., detecting bearing overheating) 17.
  5. Water & Wastewater:
    • Optimizing sludge digestion processes in wastewater treatment plants by monitoring bioreactor temperatures.

Related Products

  1. HBS01-CJC/VBS01-CJC Mounting Bases: Required for physical installation and cold junction compensation 14.
  2. PM864AK02 Processor Module: Complementary controller for Symphony Plus, enabling real-time data processing 15.
  3. DI02 High-Voltage Digital Input Module: Supports safety-critical applications with SOE functionality.
  4. Symphony Plus DCS Platform: ABB’s integrated control system fully compatible with the AI03.
  5. Freelance Engineering Software: Configures the module’s parameters and diagnostics for optimized performance.

Installation and Maintenance

Installation:



  • Mounting: Secure on a 35 mm DIN rail using M4 screws, with HBS01-CJC or VBS01-CJC bases for power and signal connections 14.
  • Wiring: Connect 24 VDC power and route shielded cables for RTD inputs. Use TB801A terminal blocks for reliable signal termination.
  • Configuration: Use ABB Freelance Engineering to assign I/O addresses and select RTD types. Enable diagnostics via the module’s front-panel LEDs 14.



Maintenance:



  • Routine Checks: Inspect terminal connections quarterly for tightness and corrosion. Clean dust from vents using compressed air.
  • Firmware Updates: Regularly update firmware via Freelance Engineering to access new features and security patches.
  • Redundancy Testing: For mission-critical systems, pair with redundant processor modules (e.g., PM864AK02) and perform annual failover tests.
  • Spare Parts Management: Maintain inventory of critical modules (e.g., AI03) to reduce downtime. ABB offers expedited delivery for urgent replacements 15.

Product Assurance

The ABB AI03 is backed by a 1-year warranty covering defects in materials and workmanship. ABB provides global technical support, including access to certified engineers and comprehensive documentation (e.g., datasheets, installation manuals). For mission-critical applications, ABB offers extended warranties (up to 5 years) and proactive maintenance plans, including annual system health checks to ensure compliance with safety standards 14.
