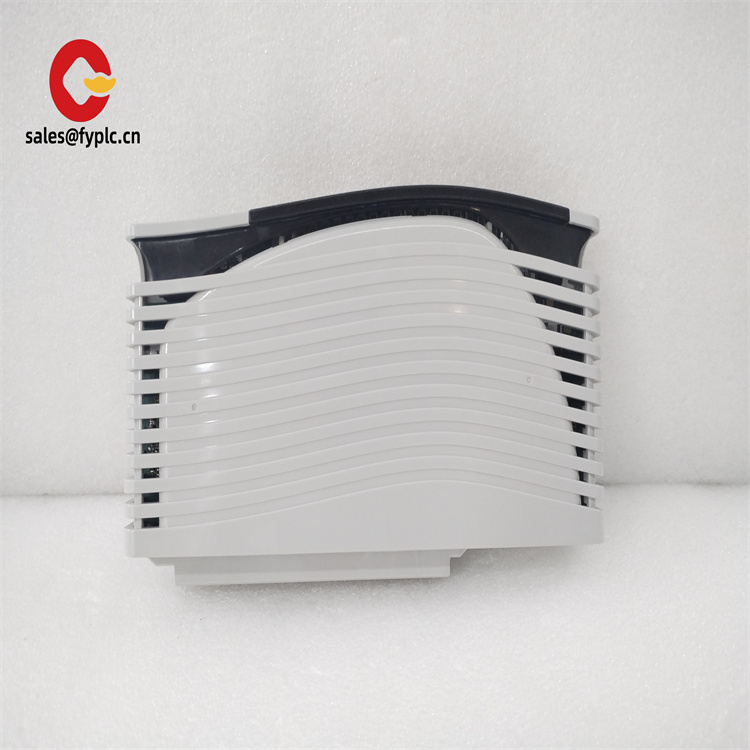

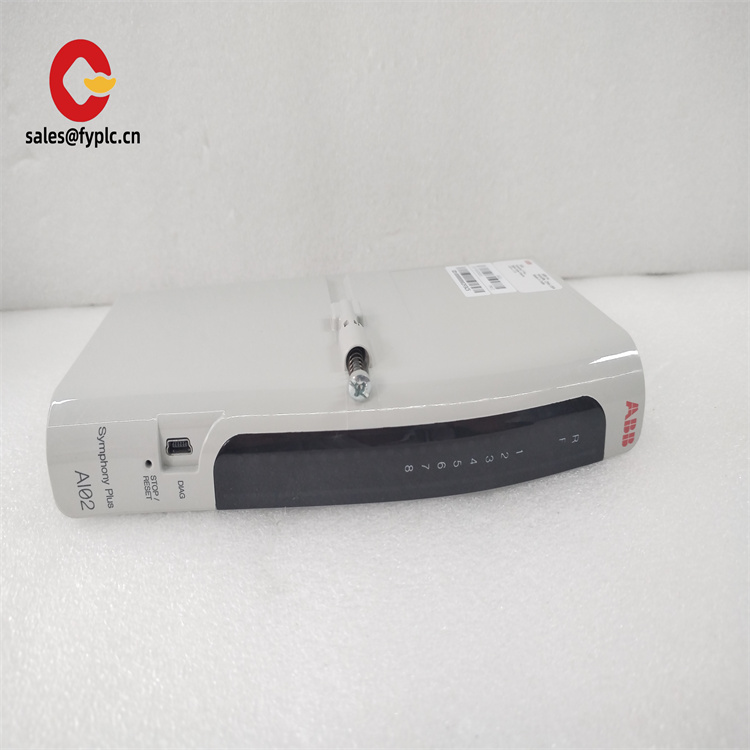

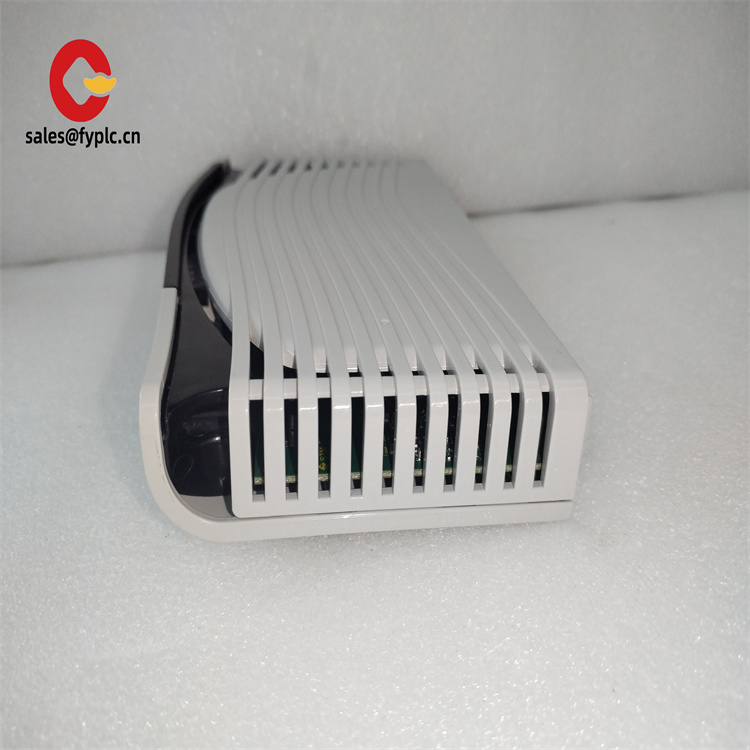

ABB AI02J Analog Input Module (SD Series I/O)(XIONGBA)

ABB AI02J Analog Input Module (SD Series I/O)(XIONGBA)

Brand Model: ABB AI02J
Product Name: Analog Input Module (SD Series I/O)
Warranty: 1 year
Size: 190 mm (depth) x 118 mm (height) x 34 mm (width)
Weight: 0.25 kg
Origin: Sweden
Inventory: Available (contact local distributors for stock levels)
Delivery Time: 3–5 business days for standard models; 3–5 weeks for custom configurations
Get a Quote
Category: Brand:
  • Need Help?
  • +86 18030182217
  • +86 18030182217
  • sandydcsplc@gmail.com
库存图标
100,000+ Models in Stock
保修图标
One-Year Warranty
响应图标
24h Fast Response

Description

The ABB AI02J is a high-performance analog input module designed for industrial automation systems, particularly as part of ABB’s Symphony Plus distributed control system (DCS). It serves as a critical component for precise data acquisition and real-time process monitoring in complex industrial environments. Below is a comprehensive overview based on verified technical insights and industry context:

Product Overview

The ABB AI02J (Hardware ID: AI02J, Order Code: 1SFL577001R7011) is categorized as an SD Series I/O module within the Symphony Plus platform. It integrates advanced signal processing capabilities with modular connectivity to enable accurate measurement and control of analog signals in industrial processes. Key applications include oil & gas, power generation, chemical processing, and manufacturing, where high reliability and precision are essential 1318.



This module supports 16 individually configurable channels for both current (4–20 mA) and voltage (1–5 V DC) inputs, with HART v5.4 communication for seamless integration with smart field devices. Its hot-swappable design allows maintenance without system downtime, while IP20-rated protection safeguards against dust and accidental contact. The AI02J interfaces with ABB’s Symphony Plus and 800xA control platforms, as well as third-party systems via ARCnet communication for distributed I/O integration 313.

Technical Specifications

Parameter Name Parameter Value
Product Model ABB AI02J (1SFL577001R7011)
Manufacturer ABB
Product Type Analog Input Module (SD Series I/O)
Input Channels 16 (individually configurable for 4–20 mA or 1–5 V DC)
HART Compatibility HART v5.4 (supports up to 24 secondary variables)
Resolution 16-bit with polarity
Accuracy ±0.1% of full-scale range (FSR)
Sampling Rate 100 ms for all 16 channels
Power Supply 24 VDC ±10%
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Dimensions 190 mm (depth) x 118 mm (height) x 34 mm (width)
Weight 0.25 kg
Environmental Compliance IP20, IEC 61000-6-4 (EMC), ISA-S71.04 G3
Safety Certification CE, UL 508, RoHS
Mounting 35 mm DIN rail (horizontal/vertical orientation)

Key Features and Advantages

High Precision and Reliability:



  • 16-bit resolution ensures accurate measurement of analog signals, critical for applications like chemical reactor monitoring and power grid stabilization 13.
  • HART v5.4 support enables bidirectional communication with smart transmitters, allowing remote configuration and diagnostics without disrupting operations 3.
  • 1500 V isolation between field signals and control logic protects against electrical noise and surges in harsh environments 13.



Flexible Configuration:



  • 16 independently configurable channels accommodate mixed current/voltage inputs, reducing the need for multiple module types 13.
  • Hot-swappable design allows module replacement without system downtime, enhancing operational continuity 18.
  • Multi-protocol compatibility (ARCnet, RS485) enables integration with third-party PLCs and SCADA systems 3.



Environmental Resilience:



  • IP20 protection and ISA-S71.04 G3 corrosion resistance ensure longevity in dusty, humid, or chemically aggressive environments 13.
  • Wide temperature range (-20°C to +70°C) supports reliable performance in extreme climates, such as offshore platforms and mining sites 13.



Efficient Maintenance:



  • Front-panel LEDs provide real-time status monitoring (RUN/FAULT), simplifying troubleshooting 13.
  • Mini USB interface allows local configuration and diagnostics without additional tools 13.
  • Reduced downtime through proactive diagnostics and modular design, minimizing maintenance costs 18.

Application Areas

  1. Oil & Gas:
    • Monitoring pressure/flow in pipelines and controlling compressor stations. HART integration enables real-time diagnostics of smart transmitters in offshore platforms 313.
  2. Power Generation:
    • Optimizing steam turbine control and boiler management. The module’s high accuracy supports precise energy output regulation 13.
  3. Chemical & Petrochemical:
    • Controlling reactor processes and distillation units. Corrosion-resistant design ensures stability in chemical plants 13.
  4. Water & Wastewater:
    • Regulating pump stations and water treatment systems. Analog inputs interface with flow meters and pH sensors, while HART communication enables remote calibration 13.
  5. Manufacturing:
    • Managing robotics and conveyor systems in automotive production. High-speed sampling supports synchronization with PLCs and SCADA systems 13.

Related Products

  1. HBS01-FPH/VBS01-EPD Mounting Bases: Required for physical installation of the AI02J, providing power and signal connections 313.
  2. PM864AK02 Processor Module: Complementary controller for Symphony Plus, enabling real-time data processing 3.
  3. DI02 High-Voltage Digital Input Module: Supports 125 VDC/120 VAC signals with SOE functionality for safety-critical applications 3.
  4. Symphony Plus DCS Platform: ABB’s integrated control system fully compatible with the AI02J 18.
  5. Freelance Engineering Software: Configures the module’s parameters and diagnostics for optimized performance 13.

Installation and Maintenance

Installation:



  • Mounting: Secure on a 35 mm DIN rail using M4 screws, ensuring proper airflow. Use HBS01-FPH or VBS01-EPD bases for power and signal connections 313.
  • Wiring: Connect 24 VDC power and route ARCnet/fiber optic cables through shielded conduits. Use TB801A terminal blocks for reliable signal connections 13.
  • Configuration: Use ABB Freelance Engineering to assign I/O addresses and configure HART parameters. Import third-party device profiles via the Device Import Wizard 13.



Maintenance:



  • Routine Checks: Inspect terminal connections quarterly for tightness and corrosion. Clean dust from vents using compressed air 13.
  • Firmware Updates: Regularly update firmware via Freelance Engineering to access new features and security patches.
  • HART Diagnostics: Utilize HART communication for remote monitoring of transmitter health and calibration status 3.
  • Spare Parts Management: Maintain inventory of critical modules (e.g., AI02J) to reduce downtime. ABB offers expedited delivery for urgent replacements 13.

Product Assurance

The ABB AI02J is backed by a 1-year warranty covering defects in materials and workmanship. ABB provides global technical support, including access to certified engineers and comprehensive documentation (e.g., datasheets, installation manuals). For mission-critical applications, ABB offers extended warranties (up to 5 years) and proactive maintenance plans, including annual system health checks to ensure compliance with safety standards 1318.
