Description
Product Overview

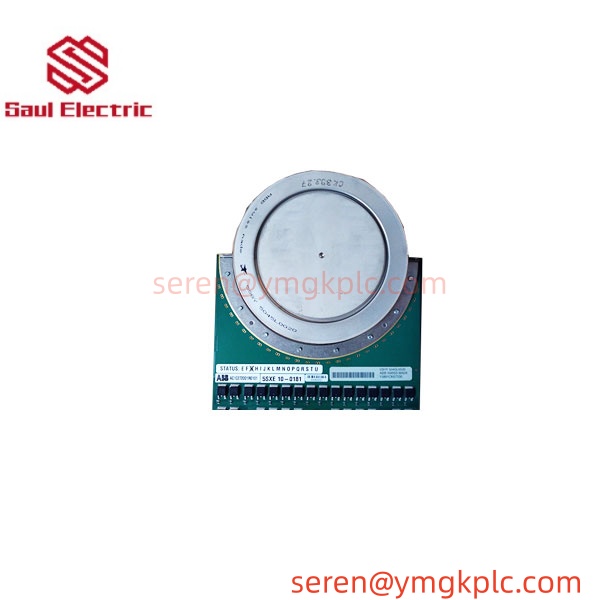

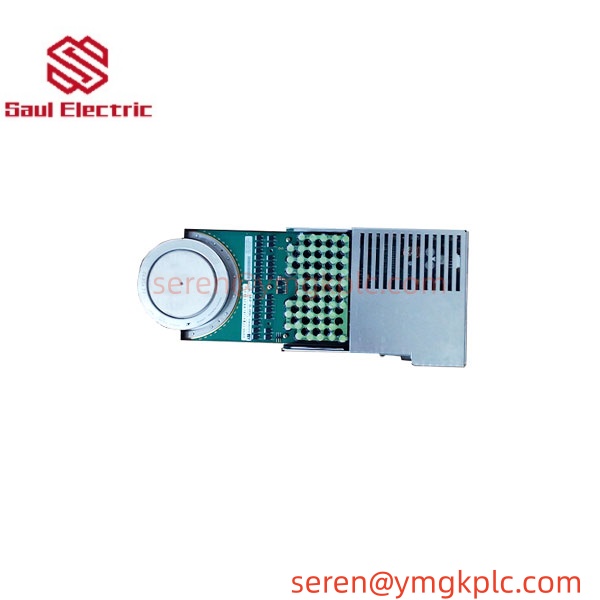

The ABB 5SHY5045L0020 is a high‑power asymmetric IGCT power module belonging to ABB 5SHY series. It integrates thyristor chip and gate driver unit, delivering snubberless high‑current turn‑off performance for megawatt‑class power conversion equipment. Designed for mission‑critical power infrastructure, this press‑pack semiconductor component serves as the core switching device inside medium‑voltage converters, static var compensators and HVDC converter valves. Fiber‑optic control provides galvanic isolation to resist heavy electromagnetic interference in heavy‑duty industrial environments.
Series
5SHY Series IGCT power semiconductor modules, covering multiple voltage‑current grades for medium‑voltage drive, power grid energy conversion and renewable energy converter applications.
Product Features
- Snubberless turn‑off design, eliminates bulky external snubber circuits to reduce system volume and cost
- Press‑pack mechanical structure, supports series stacking for high‑voltage valve assembly
- Integrated gate‑driver unit with fiber‑optic triggering interface for high noise immunity
- High power density, low conduction loss for improved overall system efficiency
- Robust thermal cycling performance, suitable for water‑cooled high‑power converter cabinets
- Compliant with international industrial power‑electronic standards
Product Parameters
| Item | Parameter |
|---|---|
| Model | 5SHY5045L0020 |
| Technology | IGCT (Integrated Gate‑Commutated Thyristor) |
| Repetitive Peak Off‑state Voltage(VDRM) | 4500 V |
| Maximum Turn‑off Current(ITGQM) | 5000 A |
| Gate Control Interface | Fiber‑optic galvanic isolation |
| Structure | Press‑pack form factor |
| Cooling Method | Water‑cooling recommended |
| Application Environment | ‑40℃ ~ +55℃ operating temperature range |
| Associated Gate Unit | 5SXE08‑0167 / 5SXE10‑0181 |
Product Specifications
- Assembly: Press‑pack semiconductor module, integrated gate driver assembly
- Mounting: Compression‑type press‑pack installation
- Compatibility: ABB medium‑voltage converter platforms, SVC and HVDC valve stacks
- Condition: New surplus / Used tested (stock subject to confirmation)
- Warranty: 365‑day warranty for supplied units
- Shipment: Ready stock, ship within 3 working days after payment
Function
Acts as high‑voltage high‑power electronic switch. Receives optical trigger signal to control turn‑on and snubberless turn‑off of large current. Realizes AC‑DC and DC‑AC power conversion; supports reactive‑power compensation and energy flow regulation for power grid equipment. Supports series‑connection to build high‑voltage converter valve groups for power transmission projects.
Purpose
Used as core power switching component inside high‑power converter equipment to realize power energy conversion, voltage regulation and power‑factor compensation for heavy‑industry and utility‑grade power systems.
Application Fields
‑ HVDC transmission converter stations‑ Static Var Compensator (SVC) for power grid voltage stabilization‑ Medium‑voltage high‑power industrial drives for steel mills, mining conveyors‑ Power plant excitation systems‑ Large‑scale renewable energy power conversion devices‑ Heavy‑industry medium‑voltage inverter & converter cabinets
