Description

Product Overview

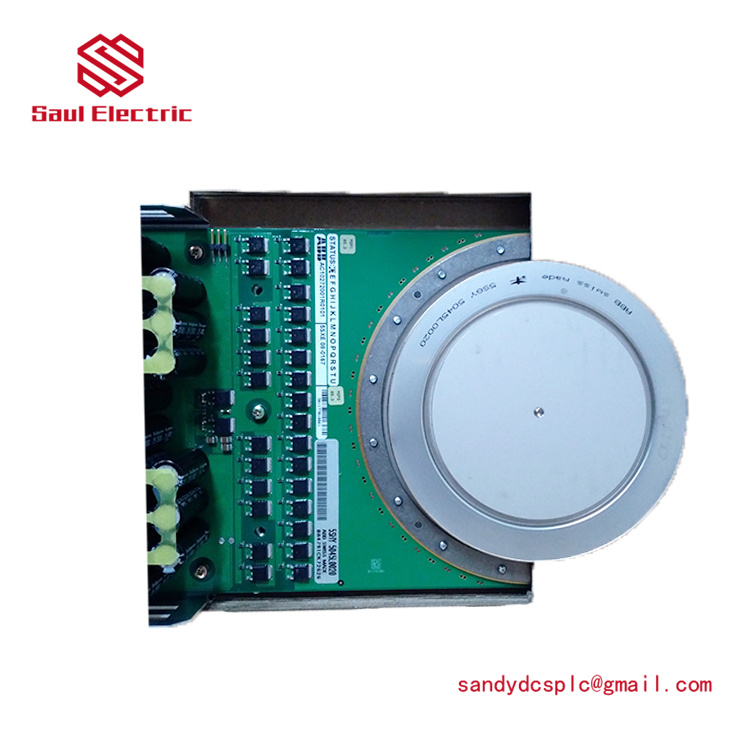

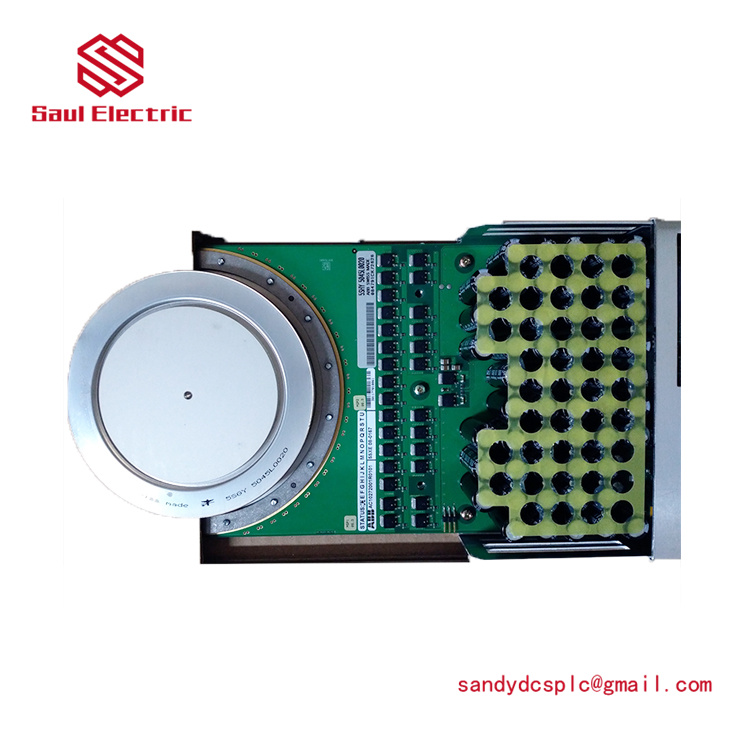

The ABB 5SHY5045L0020 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module engineered for critical high-voltage power electronics applications. As part of ABB’s 5SHY series, this module combines the low conduction losses of traditional thyristors with the fast switching capabilities of IGBTs, making it ideal for megawatt-scale systems. The ABB 5SHY5045L0020 integrates a Gate-Commutated Thyristor (GCT) with a dedicated gate drive circuit, enabling precise control of high-power electrical systems in industries such as energy transmission, industrial automation, and renewable energy.

Rated for 2,560 V DC charging voltage and capable of handling 5,000 A of turn-off current, the ABB 5SHY5045L0020 features advanced silicon technology and a compact form factor (52 x 32 x 65 mm) for efficient power conversion in applications like medium-voltage (MV) drives, high-voltage direct current (HVDC) transmission, and motor control systems. Its triple modular redundancy (TMR) architecture enhances fault tolerance, while the hot-swappable design minimizes downtime during maintenance. Certified to SIL 2 and CE standards, the ABB 5SHY5045L0020 meets rigorous safety requirements for critical infrastructure.

Technical Specifications

Parameter Name	Parameter Value
Product Model	ABB 5SHY5045L0020
Manufacturer	ABB
Product Type	Integrated Gate-Commutated Thyristor (IGCT) Module
Voltage Rating	2,560 V (DC charging voltage)
Current Rating	5,000 A (rated turn-off current)
Switching Frequency	52 Hz (maximum pulse repetition rate)
Input Configuration	Differential/Single-ended
Resolution	12-14 bits programmable
Accuracy	±0.1% of full-scale reading
Common Mode Rejection	-85 dB (DC–100 Hz)
Power Requirements	24 VDC ±10%
Operating Temperature	-40°C to +125°C
Dimensions	52 x 32 x 65 mm
Weight	0.13 kg
Safety Certification	SIL 2, CE

Key Features and Advantages

Enhanced Fault Tolerance: The ABB 5SHY5045L0020 features advanced triple modular redundancy (TMR) architecture, continuously comparing signals from three independent channels to eliminate single points of failure. This design ensures uninterrupted operation in safety-critical applications where downtime could lead to severe consequences.

High-Precision Power Control: With a resolution of 12–14 bits and ±0.1% accuracy, the module delivers precise measurements even in electrically noisy environments. Its GCT technology enables ultra-fast switching (<1 µs), reducing energy losses and enhancing system efficiency for optimal power management.

Hot-Swappable Design: The module supports online replacement without system shutdown, allowing maintenance personnel to replace faulty units without interrupting operations. This feature significantly reduces mean time to repair (MTTR) and optimizes operational efficiency in continuous-process industries.

Advanced Diagnostics System: Built-in self-diagnostics monitor channel health and detect faults in real-time, providing actionable insights for predictive maintenance. Fault indicators and alarm signals simplify troubleshooting, helping to prevent unplanned downtime and reduce operational risks.

Wide Compatibility: Interoperable with ABB’s modular drive systems (e.g., ACS6000) and third-party controllers, the ABB 5SHY5045L0020 integrates seamlessly into existing infrastructure. It works with various sensors when paired with optional accessories, offering flexibility for diverse application requirements.

Application Areas

The ABB 5SHY5045L0020 is widely adopted in industries requiring precision and reliability:

High-Voltage Direct Current (HVDC) Transmission: Critical for converting AC to DC in long-distance power grids, ensuring efficient energy transfer with minimal losses. Ideal for utility-scale projects where power reliability is non-negotiable, such as intercontinental grid interconnections.
Medium-Voltage Motor Drives: Used in mining, oil & gas, and water treatment to control large motors (e.g., pumps, compressors), optimizing energy consumption and reducing wear. Suitable for heavy-duty applications requiring continuous high-current operation.
Renewable Energy Integration: Enables efficient power inversion in wind turbines and solar inverters, supporting grid integration and maximizing energy yield. The module’s fast switching stabilizes fluctuating energy inputs from renewable sources.
Industrial Power Supplies: Supports high-power rectification for electrolysis, smelting, and other industrial processes requiring stable, high-current DC outputs. Ensures consistent performance under continuous load conditions.
Marine and Offshore Applications: Reliable performance in harsh environments, including offshore platforms and shipboard power systems, where durability and safety are paramount. Complies with strict maritime safety standards.

Installation and Maintenance

Installation Preparation:
Before installing the ABB 5SHY5045L0020, ensure the system is powered off and properly grounded. Verify that voltage and current ratings match the application requirements. Use ABB’s TRISTATION 1131 software to configure module parameters, including switching frequency and protection thresholds. For thermocouple applications, install the optional terminal module to enable cold junction compensation and ensure accurate measurements.

Maintenance Recommendations:
Regularly inspect the ABB 5SHY5045L0020 for physical damage or loose connections, especially in high-vibration environments. Utilize the module’s built-in diagnostics to monitor temperature and current levels, replacing faulty units promptly using the hot-swappable feature to avoid downtime. Periodically recalibrate the module according to ABB’s guidelines and ensure the operating temperature remains within -40°C to +125°C. Protect the module from moisture and dust to maintain optimal performance and extend lifespan.

Product Assurance

The ABB 5SHY5045L0020 is backed by a 1-year warranty covering defects in materials and workmanship. ABB provides global technical support, including access to certified engineers and comprehensive documentation, to assist with installation, configuration, and troubleshooting. Replacement modules are available from spot inventory, with delivery within 3 days after payment to minimize operational disruptions. For critical applications, optional extended warranties and proactive maintenance plans are available, offering priority access to spare parts and annual system health checks to ensure maximum uptime and compliance with international safety standards.

HS:8443919090

ABB 5SHY5045L0020

5SHY5045L0020

MP3101 Thermoelectric couple
RO3451 Double-action switch
GE IS200AEADH4A 109W3660P001 S100
