Description

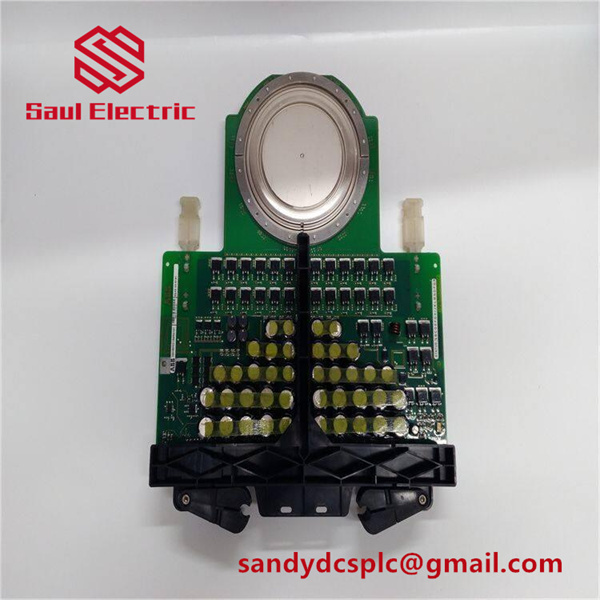

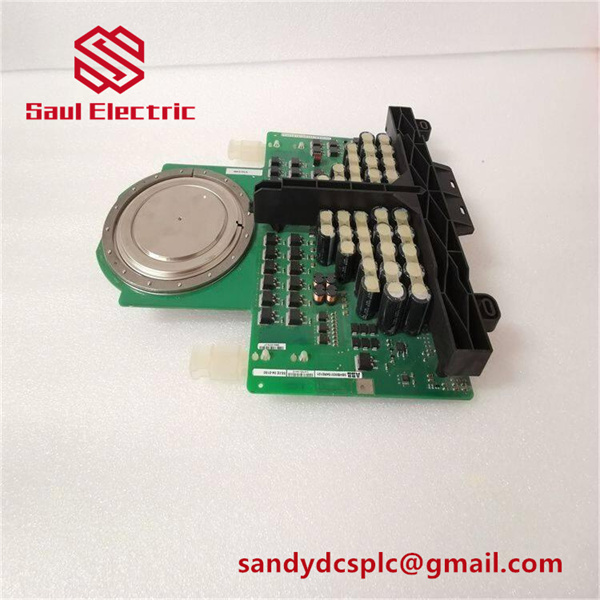

ABB 5SHY4045L0002 IGCT Module: A Rugged Performer for High-Voltage Industrial Scenarios
Product Overview
ABB 5SHY4045L0002 – a standout IGCT module from the 5SHY series – is built for high-voltage, high-current industrial applications. It blends advanced semiconductor technology, drawing on GTOs’ robust blocking capability and IGBTs’ fast-switching performance – almost like a high-efficiency valve for power conversion systems. This makes it ideal for medium-to-high frequency power conversion setups.
Packed into a compact modular design are an integrated gate drive and protection features, letting the module handle rapid switching at 4500V class voltages and thousands of amperes with ease. It cuts down system energy consumption noticeably and boosts reliability – a real game-changer for most industrial setups. Its optimized asymmetric structure minimizes on-state losses while delivering strong EMI immunity and stable thermal performance. You’ll find it everywhere from industrial drives and power conversion to renewable energy systems and HVDC transmission – after all, components that enhance overall system efficiency and reliability are always in demand.
Technical Specifications
| Item | Details |
|---|---|
| Product Model | ABB 5SHY4045L0002 |
| Manufacturer | ABB |
| Product Type | Integrated Gate-Commutated Thyristor (IGCT) |
| Operating Voltage | 24 Vdc/120 Vac |
| Output Frequency | 50-60 Hz |
| Rated Voltage (Series Typical Value) | 4500 V |
| Rated Current (Series Typical Value) | 4000 A |
| Switching Frequency | ≤ 1.6 kHz (Series Typical Value) |
| Operating Temperature | -40°C to +125°C (Series Typical Value) |
| Package | Modular (TO-247 Compatible) |
| Protection Rating | IP20 (Series Typical Value) |
| Weight | ~1 kg (Series Typical Value) |
Key Features and Advantages
The ABB 5SHY4045L0002 shines in high-voltage, high-current handling with ultra-low conduction losses. Its asymmetric design – think of it as a voltage-resistant shield for the module – boosts reverse voltage tolerance and delivers microsecond-level switching speeds, slashing energy loss during switching operations.
The integrated gate drive supports snubberless turn-off, letting you shut it down directly without external snubber circuits – that simplifies system design and trims the number of external components, cutting both cost and complexity. Interestingly enough, the module also boasts strong EMI immunity and built-in overcurrent/overvoltage protection, ensuring top-tier safety.
Paired with its modular packaging and heat dissipation baseplate, it works seamlessly with forced air or liquid cooling – staying rock-solid even as temperatures swing from -40°C to 125°C. Isn’t this exactly what high-reliability applications like multilevel converters or HVDC transmission systems need?
Applications
The 5SHY4045L0002 thrives in high-power conversion and industrial drives. In renewable energy, it acts as the core switching unit in wind turbine converters and solar inverters, acing DC-AC conversion with top-tier efficiency. Over in power transmission, it’s deployed in HVDC converter stations and Static Synchronous Compensators (STATCOM), reinforcing grid stability.
In industrial automation, it delivers precise power control for large motor drives, frequency converters, and CNC machines – especially in heavy industries like metallurgy and mining, where durability and stability are non-negotiable. Thanks to its series compatibility, it also excels in multilevel converters for Flexible AC Transmission Systems (FACTS).
Related Products
5SHY4045L0001: Fellow IGCT module from the same series, rated 4500V/4000A, tailored for medium-high voltage applications
5SHY4045L0003: High-power variant in the series, optimized for demanding high-frequency scenarios with enhanced switching characteristics
5SHY35L4512: Asymmetric IGCT module designed for medium-power applications
5SHY3545L0010: Series-compatible IGCT module for medium-voltage frequency drives
GVC750BE101: Compatible gate drive unit, providing precise triggering and protection for the 5SHY4045L0002
Installation and Maintenance
Pre-Installation
Start with a clean environment, double-check that the voltage rating matches your system, and don’t forget to disconnect power before installation. Use standard rails or panel insertion for mounting – ensure secure mechanical fixation and adequate heat dissipation paths, as cooling directly impacts the module’s lifespan.
Maintenance
Clean heat sinks regularly to prevent dust buildup, which can hinder cooling. Inspect cooling system flow and temperature sensors every 6 months, addressing any issues promptly. Keep an eye on on-state voltage drop and switching time during long-term operation; replace the module if you notice abnormal overheating or unusual switching noise. Conveniently, the ABB 5SHY4045L0002 offers status feedback, letting you monitor parameters in real-time via dedicated diagnostic tools – a huge time-saver.
Product Warranty
ABB stands behind the 5SHY4045L0002 as a genuine, brand-new imported product. Every unit undergoes rigorous factory testing, meeting international electrical safety standards and RoHS environmental requirements. Users have access to ABB’s technical support and after-sales services, ensuring reliable operation throughout the equipment’s lifecycle – no worries about unexpected downtime.
