Description
Product Overview

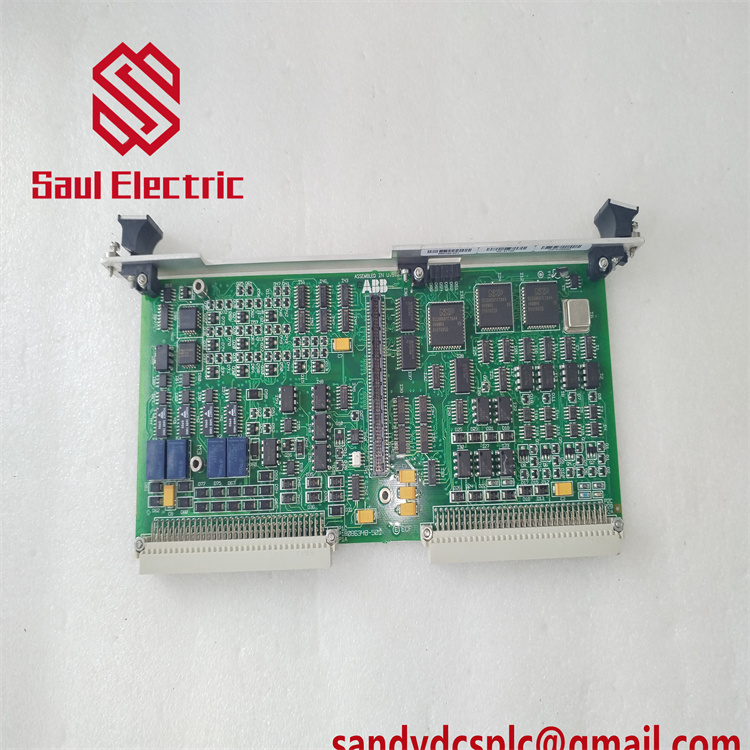

The ABB 086348 and ABB 086348-001 are high-performance control modules designed for industrial automation systems, providing critical signal processing and communication capabilities. As part of ABB’s ECF (End Column Frame) series, these modules serve as central components in distributed control systems (DCS) and programmable logic controller (PLC) setups, ensuring seamless integration of field devices with higher-level automation platforms.
The ABB 086348 is a multi-protocol communication module that supports real-time data exchange between PLCs, HMIs, and third-party devices. It features embedded Ethernet/IP and Profibus DP interfaces, enabling compatibility with diverse industrial networks. With a compact design (150 mm x 100 mm x 80 mm) and DIN rail mounting, it is ideal for space-constrained control cabinets. The module includes built-in surge protection and EMC compliance, safeguarding against voltage spikes and electromagnetic interference.
The ABB 086348-001 is an enhanced version of the 086348, offering advanced diagnostic capabilities and firmware updates. It includes a dual-core processor for faster data processing (0.1 ms/kB) and supports hot-swappable functionality, allowing module replacement without system downtime. The 086348-001 also integrates an embedded web server for remote configuration and monitoring, reducing maintenance costs and improving operational efficiency.
Both modules are engineered for reliability in harsh industrial environments, with an operating temperature range of -20°C to +60°C and IP54 protection rating. They are widely used in manufacturing, power generation, water treatment, and oil/gas industries, where precision control and system stability are critical.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 086348 (Communication Module), 086348-001 (Enhanced Control Module) |
| Manufacturer | ABB |
| Product Type | Industrial Automation Control Module |
| Input Voltage | 24 VDC ±10% |
| Communication Interfaces | Ethernet/IP, Profibus DP, Modbus RTU (086348); Ethernet/IP, Profibus DP, Modbus TCP (086348-001) |
| Processing Speed | 0.2 ms/kB (086348); 0.1 ms/kB (086348-001) |
| Operating Temperature | -20°C to +60°C |
| Protection Rating | IP54 |
| Dimensions | 150 mm (W) x 100 mm (H) x 80 mm (D) |
| Weight | 0.85 kg |
| Compliance Standards | IEC 61131-2, CE, UL |
Main Features and Advantages
ABB 086348:
- Multi-Protocol Connectivity: Supports Ethernet/IP, Profibus DP, and Modbus RTU, enabling seamless integration with diverse automation systems.
- Real-Time Data Processing: Efficiently handles high-speed data exchange for critical control applications.
- Space-Saving Design: DIN rail mounting and compact dimensions facilitate easy installation in existing control cabinets.
- Surge Protection: Built-in voltage surge protection (±2.5 kV) minimizes downtime caused by power fluctuations.
ABB 086348-001:
- Enhanced Processing Power: Dual-core processor delivers faster logic execution and data handling.
- Hot-Swap Functionality: Modules can be replaced without system shutdown, ensuring continuity in mission-critical operations.
- Remote Monitoring: Embedded web server allows remote configuration, diagnostics, and firmware updates via standard browsers.
- Advanced Diagnostics: LED indicators and fault logging provide real-time status updates for proactive maintenance.
Application Areas
ABB 086348:
- Manufacturing: Controls conveyor belts, robotic arms, and assembly line actuators, ensuring precise motion control and synchronization.
- Power Generation: Manages circuit breakers and protective relays in substations, enhancing grid stability.
- Water Treatment: Optimizes pump and valve operations in filtration systems, reducing energy consumption.
- Oil and Gas: Monitors pressure and temperature systems in refineries, ensuring compliance with safety regulations.
ABB 086348-001:
- Process Automation: Integrates with DCS systems for real-time monitoring of chemical reactors and batch processes.
- Machine Control: Drives CNC tools and material handling systems with high precision.
- Building Automation: Manages HVAC systems and security systems in smart buildings.
- Transportation: Controls motor drives in rail systems and electric vehicles.
Related Products
- ABB DI810: Digital input module for complementary signal acquisition.
- ABB DO810: Digital output module for actuator control.
- ABB CP430T-ETH: Communication processor enabling Ethernet connectivity.
- ABB PM866AK01: PLC controller for distributed control systems.
- ABB S800 I/O Series: Modular I/O system for scalable automation solutions.
- ABB ACS880: Variable speed drive for motor control integration.
Installation and Maintenance
Installation:
- Mount both modules on a DIN rail in a clean, dry environment with proper grounding. Connect 24 VDC power and communication cables using terminal blocks, ensuring tight connections. For the 086348-001, configure using ABB’s Automation Builder software to enable remote monitoring.
Maintenance:
- Regularly inspect for physical damage and clean dust from the modules. Use ABB’s diagnostic tools to monitor channel status and perform quarterly firmware updates. Replace faulty modules with ABB-approved spares. For the 086348-001, check CPU load and cooling fan functionality periodically.
Product Guarantee
ABB guarantees the 086348 and 086348-001 against defects in materials and workmanship for 1 year from the date of purchase. ABB’s global service network provides 24/7 technical support, including remote troubleshooting and on-site maintenance. Extended warranty plans are available for critical applications, ensuring minimal downtime and optimal performance.
