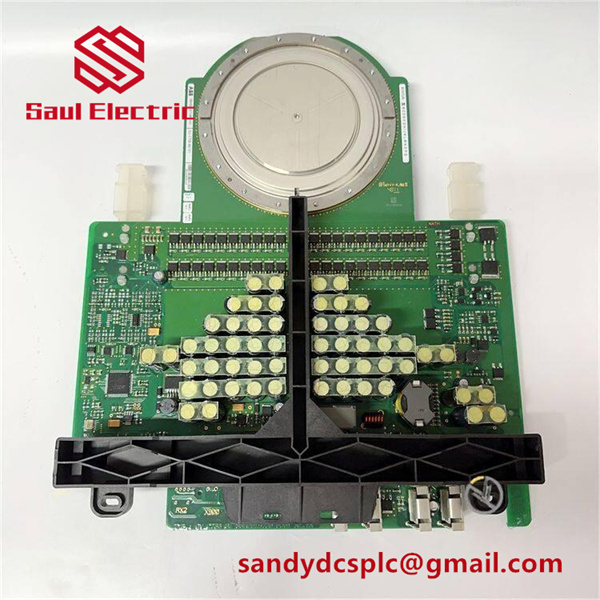

ABB 5SHY3545L0006 Industrial Automation Module Professional Technical Description
Product Overview
Truth be told, the ABB 5SHY3545L0006 – a high-performance Integrated Gate-Commutated Thyristor (IGCT) module from ABB’s 5SHY series – is engineered exclusively for high-voltage, high-capacity variable frequency systems and medium-to-high voltage power applications. It leverages cutting-edge semiconductor technology that blends the best of IGBT and GTO technologies, enabling stable operation at voltage levels of 4500V and above while handling rated currents up to 3500A. For industrial automation and power control scenarios, this module delivers nothing short of a rock-solid power conversion solution.
As a core offering in ABB’s power electronics portfolio, the 5SHY3545L0006 stands out with exceptional switching performance and high-efficiency energy conversion even in the most complex industrial environments. Its modular design philosophy is a stroke of genius – it integrates seamlessly with ABB System 800xA, DCS, and other large-scale power control systems without a hitch. Factor in its lightning-fast switching capability (up to 1μs switching speed) and ultra-low conduction losses, and you’ve got a component that doesn’t just boost overall system efficiency – it elevates reliability to a whole new level.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5SHY3545L0006 |
| Manufacturer | ABB |
| Product Type | IGCT Module (Integrated Gate-Commutated Thyristor) |
| Rated Voltage | 4500V |
| Rated Current | 3500A |
| Maximum Voltage | 6000V |
| Maximum Current | 5250A |
| Switching Speed | 1μs |
| Protection Rating | IP20 |
| Operating Temperature | -40°C to +85°C |
| Cooling Method | Water cooling/Natural cooling |
| Dimensions | Approximately 300mm x 300mm x 100mm |
| Weight | Approximately 10kg |
| Switching Frequency | Up to 20kHz |
Key Features and Advantages
When it comes to high-voltage, high-power applications, the ABB 5SHY3545L0006 IGCT module outshines the competition with a suite of standout technical traits and performance benefits. Its ability to withstand extreme voltage and current loads is its crown jewel – designed for 4500V rated voltage and 3500A rated current, it can even handle peaks of 6000V and 5250A. That kind of resilience lets it take on voltage fluctuations and current surges in the harshest industrial settings without breaking a sweat.
High efficiency paired with blistering-fast switching is another feather in its cap. Thanks to advanced IGCT technology, the module achieves microsecond-level (1μs) switching speed and can hit switching frequencies up to 20kHz. This translates directly to drastically lower switching and conduction losses, making it a perfect fit for high-power applications that demand frequent switching. Isn’t that exactly the kind of efficiency boost industrial systems need?
Then there’s the modular design that makes integration a breeze. The product sports a compact, modular build with standardized interfaces and mounting methods, letting it slot right into existing ABB System 800xA, DCS, and other control systems. This isn’t just convenient – it slashes the complexity of system design and installation, saving both time and money for engineers on the ground.
Application Fields
With its robust high-voltage, high-capacity traits, the ABB 5SHY3545L0006 IGCT module plays a pivotal role across multiple industrial sectors. In power transmission and distribution, it’s a mainstay in conversion, inversion, and circuit-breaking systems for high-voltage transmission lines, distribution stations, and substations – the backbone of stable grid operations.
In industrial drives and automation, this module takes center stage as a core control component for heavy-duty equipment like motors, pumps, compressors, and fans. It delivers efficient soft-start functionality and precise speed regulation, ensuring these machines run smoothly and reliably even under heavy loads.
Renewable energy generation is another key arena where this module shines. In wind power and photovoltaic systems, it acts as the heart of high-power inverters, converting the variable energy produced by wind turbines and solar panels into grid-compliant electricity. It’s a quiet workhorse that helps accelerate the shift to clean energy.
Related Products
- 5SHY3545L0010: Higher-capacity variant in the same series, ideal for applications requiring greater current handling
- 5SHY4045L0006: High-voltage model in the 5SHY series, tailored for higher voltage level power systems
- 5SHX2645L0002: Compatible RC module that pairs with 5SHY3545L0006 to deliver full control functionality
- 5SHY3545L0009: Compatible same-series model with comparable electrical characteristics
- 5SHY3545L0014: Technologically upgraded version with enhanced heat dissipation and switching frequency
- 5SHY5045L0020: High-power model in the 5SHY series, built for extreme high-power applications
- GVC736BE101: Compatible gate drive control unit – a must-have for the 5SHY3545L0006 to operate correctly
- 5SHX1960L0006: 91mm RC-IGCT module in the same series, designed with matching compatibility principles
Installation and Maintenance
Installation Preparation
Before installing the ABB 5SHY3545L0006 module, take the time to fully evaluate the installation environment. Ensure cabinet dimensions, grounding conditions, and ventilation all meet technical specifications, and double-check that the installation spot has enough heat dissipation space – this step is often overlooked but critical for long-term performance. For water-cooled versions, additionally verify cooling pipeline interface compatibility and flow rate requirements. During mechanical installation, use standard bolts to fasten the module securely, keep it level, and shield it from strong vibrations that could cause damage over time.
Maintenance Recommendations
To keep the 5SHY3545L0006 module running stably for years, put a regular maintenance plan in place. Every 6–12 months, inspect the tightness of module fasteners, clean up accumulated dust, measure heat sink temperatures, and perform thermal cycle testing on the IGCT module. In daily operation, keep a close eye on the cooling system status. For water-cooled units, regularly check coolant flow rate and temperature to ensure optimal heat dissipation – a faulty cooling system is one of the most common causes of module failure.
Product Guarantee
ABB provides comprehensive quality assurance and after-sales support for the 5SHY3545L0006 module. Every unit leaving the factory undergoes rigorous quality inspections to meet International Electrotechnical Commission (IEC) standards and CE certification requirements. ABB offers a one-year warranty period; any failures caused by product quality issues during this time will be repaired or replaced free of charge.
The company maintains a full-fledged technical support system, allowing customers to access professional technical consultation and fault diagnosis services through multiple channels. This ensures timely, effective support throughout the equipment’s entire lifecycle. The after-sales service for the 5SHY3545L0006 module covers everything from installation and commissioning to daily maintenance. ABB’s team of professional engineers can provide remote technical support or on-site services whenever customers need them.
