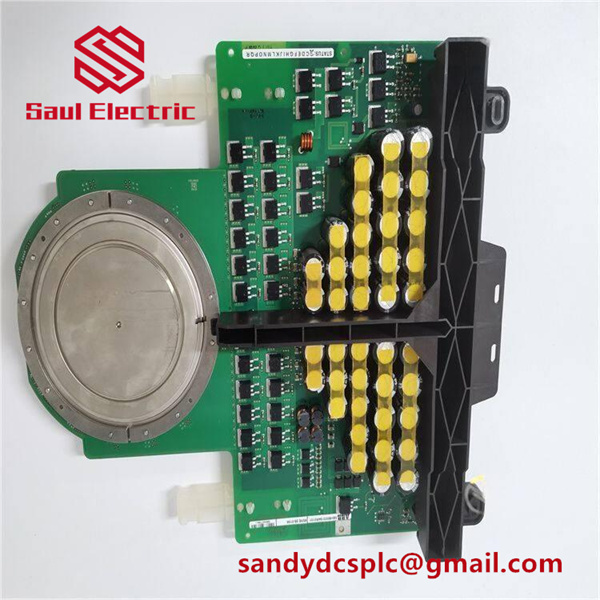

ABB 5SHY3545L0001 IGCT Module – Product Datasheet
Product Overview
Truth be told, the ABB 5SHY3545L0001 – a high-performance Integrated Gate-Commutated Thyristor (IGCT) semiconductor module – is a standout performer in ABB’s premium 5SHY series of power semiconductor devices. It adopts cutting-edge integrated gate-commutated technology, integrating GTO chips, anti-parallel diodes and gate drive circuits into a highly compact package. Boasting six core strengths – large current capacity, high blocking voltage, high switching frequency, superior reliability, compact structure and low conduction losses – it has firmly established itself in medium-to-high voltage, high-power application scenarios. Specifically engineered for large-scale power electronic installations, this module serves as the core component in high-voltage, high-power power conversion systems.
As a fully controllable power switch, it precisely regulates turn-on and turn-off operations via gate control signals, enabling efficient power management and energy conversion in complex industrial automation systems. Its modular design directly addresses industry pain points – whether embedded in control cabinets or mounted on field operation panels, it allows for seamless integration and deployment, significantly streamlining the system integration process. This module is a true embodiment of ABB’s technical prowess in the power semiconductor sector, delivering a stable and reliable solution for power control applications in harsh industrial environments.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5SHY3545L0001 |
| Manufacturer | ABB |
| Product Type | IGCT Semiconductor Module |
| Structure Type | Modular |
| Installation Method | Control Room Installation |
| Operating Voltage | 24V DC/120V AC or 220V |
| Output Frequency | 50-60Hz |
| Processing Speed | High-speed switching |
| Product Certification | CE, Original Factory Certified |
| Ambient Temperature Tolerance Upper Limit | 60℃ |
| Ambient Humidity | 50% |
| Weight | 1.5kg |
| Dimensions | 50×76mm |
| Country of Origin | Switzerland |
Key Features and Advantages
In the field of power control, the ABB 5SHY3545L0001 holds a competitive edge thanks to its impressive technical characteristics and performance benefits. Ultra-high power density is undoubtedly one of its biggest selling points – within a compact footprint, it achieves high-voltage and large-current handling capabilities, with rated parameters reaching industry-leading levels. Isn’t this exactly the core component that high-power application scenarios are craving for?
High efficiency and low loss are its core competitive advantages. Leveraging advanced IGCT technology, the module achieves both low conduction loss and fast switching performance, directly helping industrial systems cut down on energy costs. The integrated gate drive design is the icing on the cake, further optimizing switching performance and minimizing power loss during energy conversion.
What’s particularly commendable is its reliability engineering. The module employs robust packaging technology and optimized thermal management solutions, enabling it to withstand harsh operating conditions such as high temperature and humidity. It not only ensures equipment service life but also maintains continuous and stable system operation. The modular architecture also simplifies installation and maintenance, significantly reducing system downtime and operational costs.
Application Fields
From high-voltage transmission and distribution systems at the heart of power grids to large motors in heavy industrial workshops, the ABB 5SHY3545L0001 finds applications across all key areas of industrial automation and power systems. In the power energy industry, it serves as a core component in conversion, inversion and circuit-breaking systems for high-voltage power transmission, distribution stations and substations, building a reliable power control line of defense for power infrastructure.
The industrial drives sector is its main battlefield. It plays a key role in soft starting and precise speed control of large motors, pumps, compressors, fans and conveyor belts. Its robust high-power handling capability makes it an ideal choice for heavy industrial applications. In the renewable energy sector, it is suitable for high-power conversion systems in wind power generation and photovoltaic inverters, facilitating efficient conversion and grid integration of clean energy.
In addition, it excels in precision power control scenarios for high-power electric arc furnaces and heating furnaces in the metallurgical, chemical and steel industries; it also contributes to traction inversion and energy feedback systems in rail transit and marine fields, demonstrating diverse application potential.
Related Products
- 5SHY3545L0010: IGBT module in the same series, with high-voltage and large-current tolerance, suitable for frequency converters, inverters and other equipment
- 5SHY3545L0014: High-power IGCT module, rated voltage 4.5kV, rated current 3.5kA, suitable for medium-to-high voltage, large-current power systems
- 5SHY35L4512: ABB asymmetric integrated gate-commutated thyristor, also part of the 5SHY series of power semiconductor devices
- 3BHB013088R0001: IGBT module model matching 5SHY3545L0010
- 3BHB013085R0001: Integrated gate commutator module model matching 5SHY3545L0014
Installation and Maintenance
Pre-installation Preparation
Before installing the ABB 5SHY3545L0001, it is essential to ensure that the working environment conditions are met. The temperature and humidity of the control room should be kept within the appropriate range, the stability of the power supply voltage must be carefully checked, and more importantly, the rated parameters of the module must be fully matched with system requirements – this step should never be taken lightly. Installation personnel must possess relevant professional qualifications, be familiar with the operating procedures of high-voltage equipment, and use the correct tools and instruments during construction.
Installation Guidelines
Adopt standard rail or panel mounting methods, and sufficient heat dissipation space must be reserved around the module to avoid heat accumulation affecting operation. Electrical wiring should use busbars or terminal blocks matching the rated voltage and current. Always confirm that the power supply is completely disconnected before wiring to prevent electric shock hazards. For systems requiring water cooling, the cooling circuit must also be properly connected.
Maintenance Recommendations
Regularly monitor the module’s operating status, keep an eye on the working temperature at all times, and periodically check whether the terminals are loose to avoid faults caused by poor contact. It is recommended to conduct a comprehensive functional test on the module every 12 months, and replace the aging gate drive module when necessary. If the module needs to be stored for a long time, it should be placed in a dry and dust-free environment, and regularly powered on for testing to ensure it is always in good condition.
Product Assurance
ABB provides comprehensive quality assurance and after-sales service support for the 5SHY3545L0001. Every module leaving the factory undergoes rigorous testing, with all indicators meeting the requirements of international standards such as CE certification, ensuring that performance and reliability meet the high standards of industrial applications. The product comes with a warranty period from the date of manufacture, and professional technical support and solutions are available for quality issues arising under normal usage conditions.
With a sound technical support system, ABB can provide customers with timely technical consultation and after-sales service. Even if the product is discontinued in the future, ABB will offer replacement model recommendations and system migration solutions to ensure the continuous and stable operation of customers’ systems. Suppliers usually also commit to providing brand-new original products, safe and timely delivery guarantees, and professional after-sales technical support.
