Product Overview

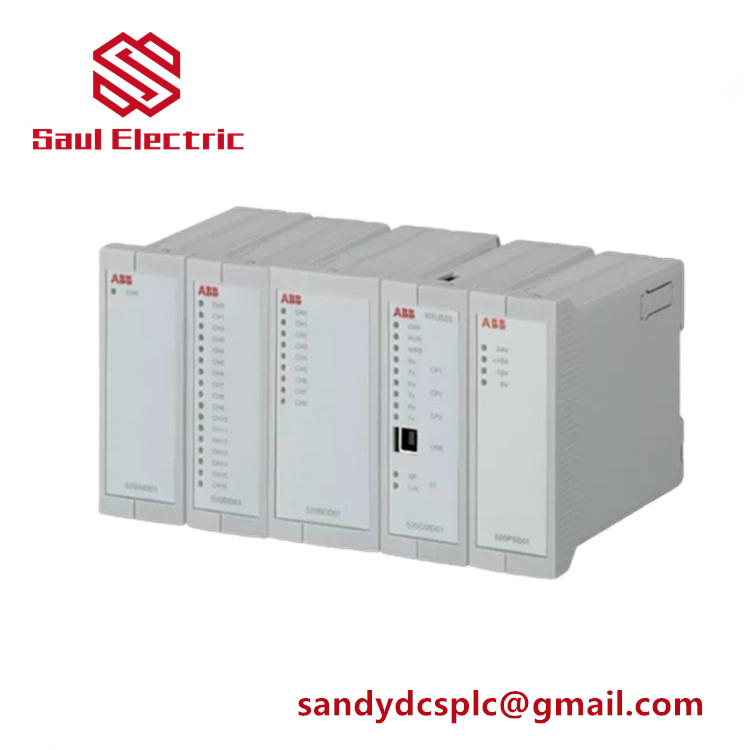

The ABB 520PSD01 is a DIN rail-mounted power supply unit designed exclusively for the RTU520 series, serving as a critical component in industrial automation and remote terminal unit (RTU) systems. This module generates or switches multiple DC voltages—24 VDC, ±15 VDC, and 5 VDC—to power up to 16 I/O modules within the RTU520 platform. With a total output power of 20 W and 85% efficiency, it ensures stable operation in demanding environments such as substations and distributed control systems. The ABB 520PSD01 integrates natural convection cooling and reverse voltage protection, minimizing maintenance needs while maximizing reliability. As part of ABB’s RTU500 product line (now under Hitachi Energy), this power supply unit enables seamless scalability for grid automation, renewable energy integration, and remote monitoring applications. Its compact design and robust performance make the ABB 520PSD01 a cornerstone for resilient automation architectures.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 520PSD01 |
| Manufacturer | ABB (Hitachi Energy) |
| Product Type | Power Supply Module |
| Input Voltage | 24 VDC (-20% to +20% tolerance) |
| Output Voltages | 5 VDC (±5%), ±15 VDC (±10%), 24 VDC (±20%) |
| Max Output Current | 1.8 A @ 5 VDC, 0.2 A @ ±15 VDC, 0.2 A @ 24 VDC |
| Total Power | 20 W |
| Efficiency | 85% |
| Cooling Method | Natural convection |
| Protection Features | Reverse voltage, short-circuit, over-voltage |
| Operating Temperature | -25°C to +70°C (up to +85°C for 96 hours) |
| Dimensions | 35 mm × 98 mm × 117 mm (W × H × D) |
| Mounting | DIN rail (TS35) |
| Weight | 0.14 kg |
Main Features and Advantages
The ABB 520PSD01 delivers exceptional versatility through its multi-voltage output design, supporting 5 VDC for logic circuits, ±15 VDC for analog sensors, and 24 VDC for I/O modules. This flexibility eliminates the need for additional converters, reducing system complexity and cost. Its rugged construction ensures reliability in harsh conditions, with natural convection cooling enabling fanless operation and reverse voltage protection safeguarding against wiring errors. The module’s compact DIN rail mounting saves panel space while simplifying installation.
A key advantage lies in its integration with the RTU520 ecosystem. When paired with the 520CMD01 communication unit, the ABB 520PSD01 efficiently distributes power to I/O modules, supporting scalable configurations. LED indicators provide real-time voltage monitoring, while compliance with IEC immunity standards (e.g., 6 kV surge protection) ensures resilience against electromagnetic interference. These features make the ABB 520PSD01 ideal for critical infrastructure applications requiring long-term stability.
Application Fields
The ABB 520PSD01 is widely deployed in substation automation systems, where it powers communication modules, I/O interfaces, and control logic for grid monitoring and fault detection. Its robust design suits harsh electrical environments, ensuring uninterrupted operation in high-voltage substations. In industrial automation, the module supports machinery control, process monitoring, and distributed I/O systems across manufacturing, oil and gas, and water treatment plants.
For renewable energy integration, the ABB 520PSD01 enables remote control of solar inverters and wind turbine controllers, facilitating grid stability. It also serves in railway signaling and intelligent transportation systems, where precise voltage regulation is critical. Additionally, its compatibility with RTU560 platforms allows legacy system upgrades. By powering up to 16 I/O modules, the ABB 520PSD01 reduces hardware footprint while maintaining scalability for future expansion.
