Product Overview

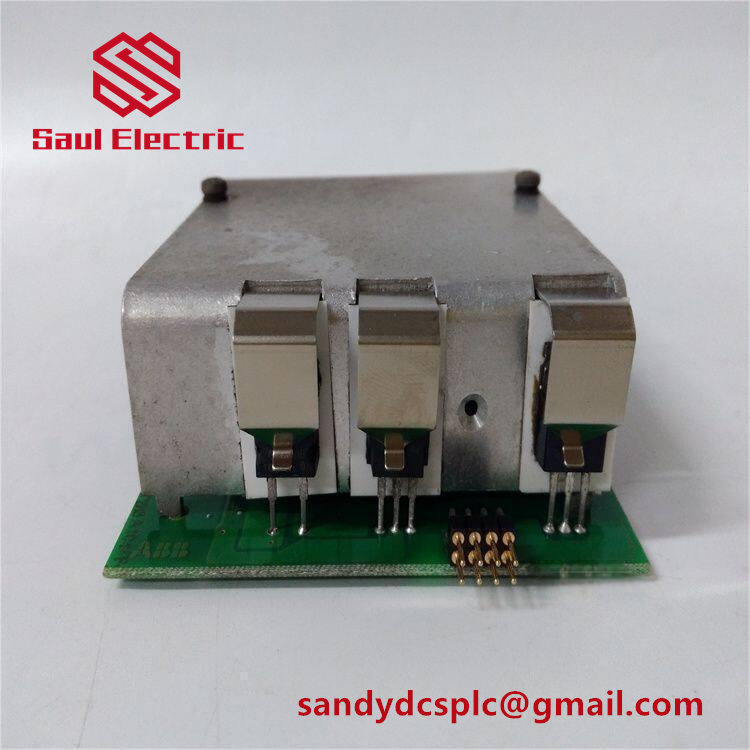

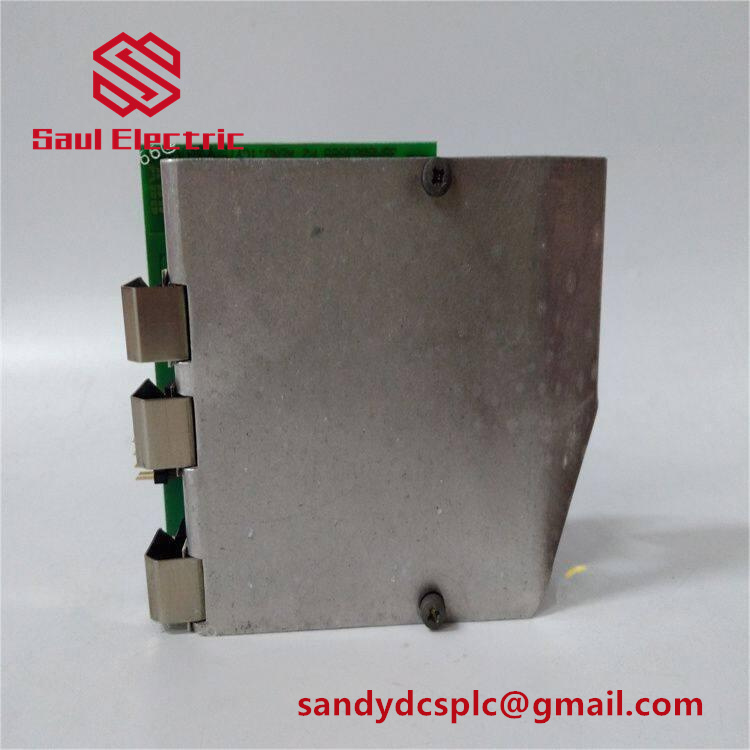

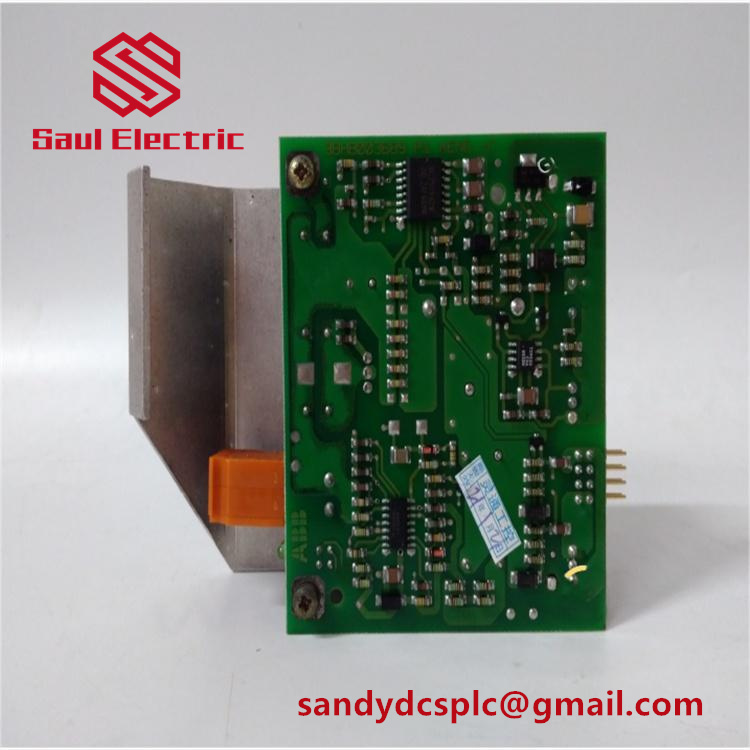

The ABB 3BHB003688R0001 is a versatile digital output module designed for industrial automation systems, serving as a critical interface between control units and field devices. This module facilitates precise control of actuators, valves, motors, and other digital equipment by converting control signals into operational commands. As part of ABB’s broader automation portfolio, the ABB 3BHB003688R0001 integrates seamlessly with DCS (Distributed Control Systems) and PLC architectures, enabling robust monitoring and control in demanding environments. Its design emphasizes reliability and flexibility, supporting configurations for diverse applications, from manufacturing lines to energy management. The module’s compatibility with industrial communication protocols ensures efficient data exchange, while its compact form factor allows for space-efficient cabinet installation. By delivering high-speed, fault-tolerant performance, the ABB 3BHB003688R0001 enhances operational efficiency and reduces downtime in complex industrial processes .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 3BHB003688R0001 |
| Manufacturer | ABB Ltd. |
| Product Type | Digital Output Module |
| Input Voltage | 24V DC |
| Output Current | 10A |
| Operating Temperature | -10°C to +50°C |
| Output Frequency | 125 kHz |
| Dimensions | 100mm × 50mm × 60mm |
| Weight | 0.5 kg |
| Protection Level | IP20 |
| Isolation | Built-in electrical isolation |
| Certifications | UL, CE |
Main Features and Advantages
The ABB 3BHB003688R0001 excels in reliability, leveraging high-quality components and robust manufacturing to ensure stability in harsh industrial conditions. It supports multiple output types (e.g., relay, transistor), allowing customization for specific loads like inductive or capacitive devices. The module features advanced diagnostics, enabling real-time monitoring of channel status and fault detection, which preempts failures and simplifies troubleshooting. Its plug-and-play design reduces configuration time, while modular expandability permits seamless integration with ABB’s automation platforms (e.g., AC500 PLCs or Ovation DCS). Additionally, the ABB 3BHB003688R0001 offers galvanic isolation between channels, protecting against voltage surges and electromagnetic interference. These attributes make it ideal for critical processes where precision and uptime are paramount .
Application Areas
The ABB 3BHB003688R0001 is deployed across industries requiring precise digital control. In manufacturing automation, it drives conveyor belts, robotic arms, and assembly line equipment. For process industries (e.g., chemicals, water treatment), it manages pumps, valves, and fans based on sensor inputs. The module also supports energy infrastructure, regulating grid components like circuit breakers, and building automation for HVAC control. In each scenario, the ABB 3BHB003688R0001 ensures synchronized operation, enhances safety interlocks, and adapts to scalable system expansions .
Related Products
ABB 3BHE024577R0101: A complementary control processor for high-level automation tasks.
ABB 5SHY3545L0010: Power semiconductor module for drive systems, often used alongside the 3BHB003688R0001.
ABB 3BSE018135R1: Communication interface module enabling protocol integration.
ABB ACS1000 Inverter Components: Includes compatible power boards (e.g., 3BHB003688R0001 as a sub-module) .
ABB Panel 800 Series HMI: Provides operator interaction for systems using the digital output module .
Installation and Maintenance
Installation Preparation: Mount the ABB 3BHB003688R0001 on a DIN rail per ABB’s guidelines, ensuring proper ventilation and clearance. Verify input voltage (24V DC) matches site power supplies, and use shielded cables for noise immunity. Ground the module securely to avoid electrical hazards.
Maintenance Recommendations: Conduct periodic inspections for dust accumulation and verify terminal tightness. Utilize the module’s diagnostic LEDs to identify issues early. ABB recommends firmware updates via engineering software to maintain compatibility. For repairs, engage certified technicians to preserve warranty coverage .
Product Assurance
ABB provides a standard warranty covering defects in materials and workmanship for the ABB 3BHB003688R0001. Global technical support includes documentation, software tools, and access to certified engineers. The module undergoes rigorous testing for EMI resilience, thermal cycling, and shock/vibration resistance, complying with IEC standards. Customers receive lifecycle management services, including firmware patches and replacement guidance, to ensure long-term reliability .
