Product Overview

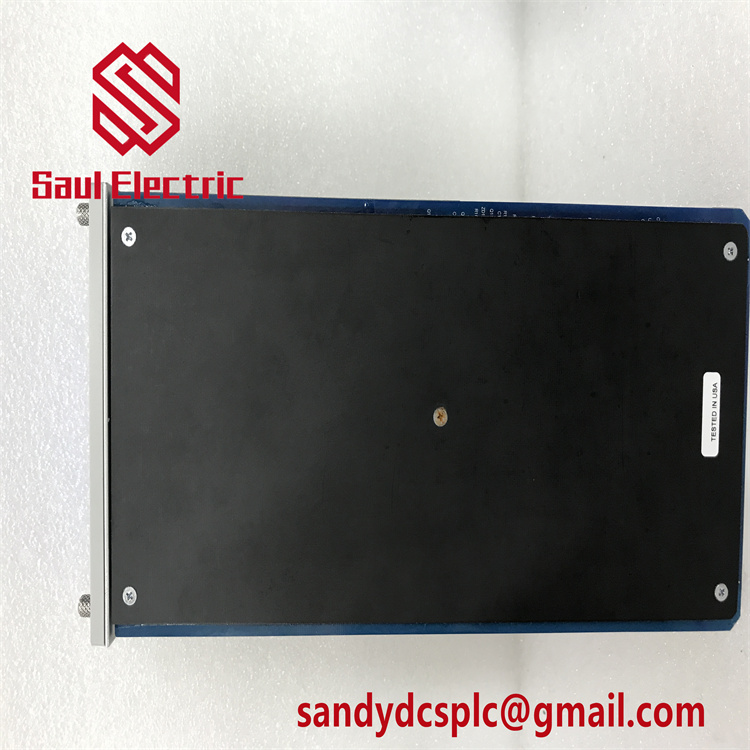

The BENTLY Nevada 3500/40-01-00 is a 4-channel Proximitor Monitor designed for high-precision vibration and position monitoring of rotating machinery. As a core component of the 3500 Series Machinery Protection System, this module processes signals from BENTLY Nevada proximity sensors (e.g., 3300 XL series) to provide real-time measurements of critical parameters like radial vibration, axial displacement, and differential expansion. Engineered for compliance with API 670 standards, the 3500/40-01-00 ensures reliable operation in oil & gas, power generation, and industrial automation environments where machinery health is mission-critical.
Featuring epoxy-sealed construction and galvanic isolation, the module withstands harsh conditions (e.g., EMI, high vibration) while delivering ±0.33% full-scale accuracy for vibration measurements. Its programmable alarm setpoints (via 3500 Rack Configuration Software) enable automatic actuation of shutdowns or alarms through connected relay modules (e.g., 3500/34), ensuring fail-safe protection. The hot-swappable design minimizes downtime during maintenance, while front-panel LEDs provide instant status feedback (green for normal operation, red for faults).
In automation architectures, the 3500/40-01-00 acts as a vital interface between sensors and control systems, converting raw sensor data into actionable insights. By integrating with BENTLY Nevada’s System 1 software, it supports predictive maintenance strategies, reducing unplanned outages and extending equipment lifespan.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 3500/40-01-00 |
| Manufacturer | BENTLY Nevada |
| Product Type | Proximitor Monitor (3500/40M Series) |
| Input Channels | 4 differential inputs (10kΩ impedance) |
| Sensor Compatibility | BENTLY Nevada 3300 XL proximity probes, 330500 velocity sensors |
| Measurement Parameters | Radial vibration, axial displacement, differential expansion, eccentricity |
| Sensitivity | 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) |
| Frequency Response | 0.1 Hz to 10 kHz |
| Outputs | 4-20 mA analog signals, RS-485 Modbus RTU |
| Power Supply | 24 VDC ±10% (7 W typical) |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Physical Dimensions | 241.3 mm x 24.4 mm x 241.8 mm (9.50″ x 0.96″ x 9.52″) |
| Weight | 0.91 kg (2.0 lb) |
| Isolation Voltage | 1000 VDC (input/output to ground) |
| LED Indicators | Power (green), TX/RX (flashing), Channel Fault (red per channel) |
| Certifications | CE, RoHS, API 670 compliant |
| Mounting | Rack-mounted in 3500 Series enclosure |
Key Features and Advantages
Multi-Parameter Monitoring: The 3500/40-01-00 supports 8 independent measurement modes (e.g., REBAM® for rolling-element bearing analysis), allowing simultaneous monitoring of vibration, position, and expansion. This versatility eliminates the need for multiple dedicated modules, reducing system complexity and cost.
High Accuracy and Stability: With ±0.33% full-scale accuracy and 10,000-hour MTBF, the module ensures precise long-term performance. Its adaptive filtering reduces noise interference, enhancing signal integrity in high-vibration environments.
Programmable Logic Flexibility: The 3500 Rack Configuration Software enables user-defined alarm logic (e.g., 2-out-of-3 voting for critical channels) and configurable deadbands. Each channel can be assigned normally energized (NE) or normally de-energized (NDE) relay outputs, aligning with diverse control requirements.
Robust Environmental Resilience: The IP65-rated enclosure and arc-suppression circuitry protect against moisture, dust, and electrical transients. The module’s 10,000-cycle contact life reduces maintenance costs compared to mechanical relays.
Seamless Integration: Compatible with 3500/92 Communication Gateway, the 3500/40-01-00 supports Modbus RTU/TCP connectivity to PLCs and SCADA systems. It also interfaces with BENTLY Nevada’s 3500/22M Transient Data Interface for high-speed waveform analysis.
Application Areas
The BENTLY Nevada 3500/40-01-00 excels in applications requiring continuous machinery health monitoring:
- Oil & Gas: Monitoring compressor turbine shaft vibration and axial thrust in offshore platforms and refineries.
- Power Generation: Detecting rotor eccentricity in steam turbines and generator misalignment in power plants.
- Industrial Manufacturing: Ensuring precision in extruders, centrifuges, and ball mills by measuring radial vibration thresholds.
- Aerospace: Validating engine balance during testing by analyzing differential expansion data.
- Nuclear Energy: Providing real-time displacement measurements for reactor coolant pumps, critical for safety compliance.
By converting sensor data into actionable insights, the 3500/40-01-00 empowers predictive maintenance strategies, reducing repair costs by up to 30% in case studies.
Related Products
- 3500/34-10-00 125704-01: A TMR relay module for fail-safe actuation of alarms and shutdowns, compatible with the 3500/40-01-00.
- 3500/92 Communication Gateway: Enables Modbus RTU/TCP connectivity between the 3500/40-01-00 and external control systems.
- 330130 Proximity Probe: A sensor compatible with the 3500/40-01-00, delivering shaft position data for vibration analysis.

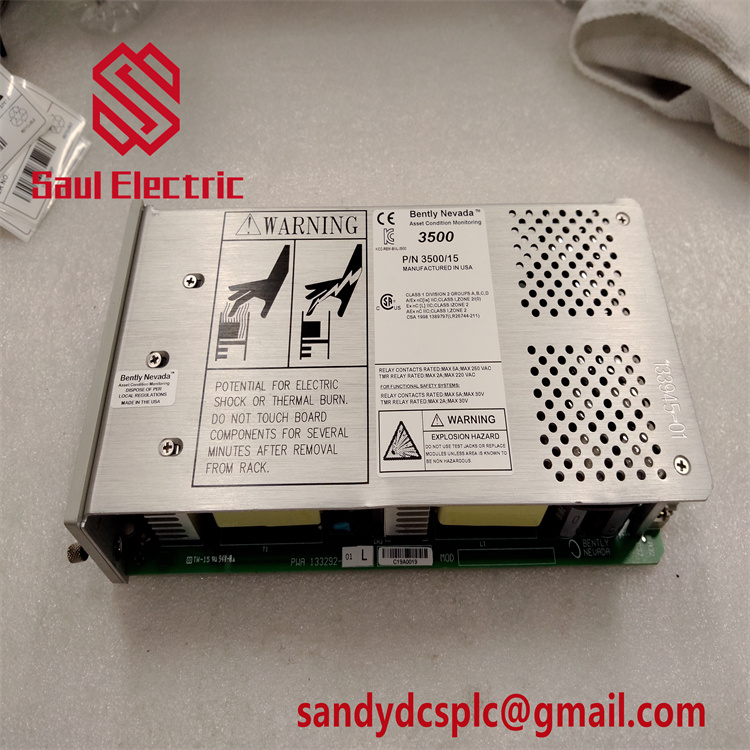

- 3500/15 Power Supply: Provides redundant power to the 3500 rack, ensuring continuous operation of the 3500/40-01-00.
- 128229-01 Spare I/O Module: A replacement part for the 3500/40-01-00, designed for quick field replacement.
Installation and Maintenance
Pre-Installation Preparation:
- Power off the 3500 rack and verify grounding.
- Use 3500 Rack Configuration Software to assign slot addresses and program alarm setpoints.
- Mount the 3500/40-01-00 in any slot to the right of the rack interface module, ensuring secure alignment with backplane connectors.
- Terminate sensor wiring using the module’s screw terminals, following polarity guidelines for -24 VDC power and signal inputs.
Maintenance Recommendations:
- Calibration: Recalibrate annually using BENTLY’s 3500 Test Utilities to maintain ±0.33% accuracy.
- Hot-Swap Procedure: Depress the front-panel release latch and remove the module while the system is running; replace with a spare to minimize downtime.
- Environmental Checks: Clean dust from vents quarterly to prevent overheating, and inspect LEDs monthly for fault indicators.
Product Warranty and Support
The BENTLY Nevada 3500/40-01-00 is backed by a 1-year warranty, covering defects in materials and workmanship. BENTLY’s global support network provides 24/7 technical assistance for configuration, troubleshooting, and firmware updates. With spot inventory in Hong Kong and a 3-day delivery time after payment, customers benefit from rapid deployment and reduced project delays. This commitment to quality ensures seamless integration and long-term performance in mission-critical industrial environments.
