Product Overview

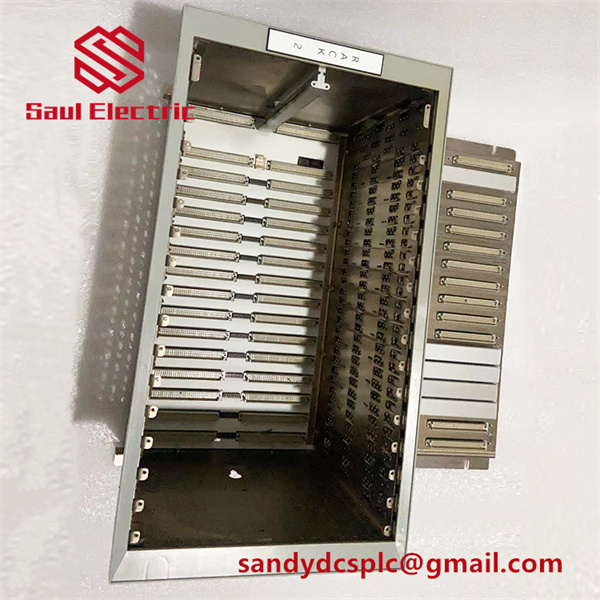

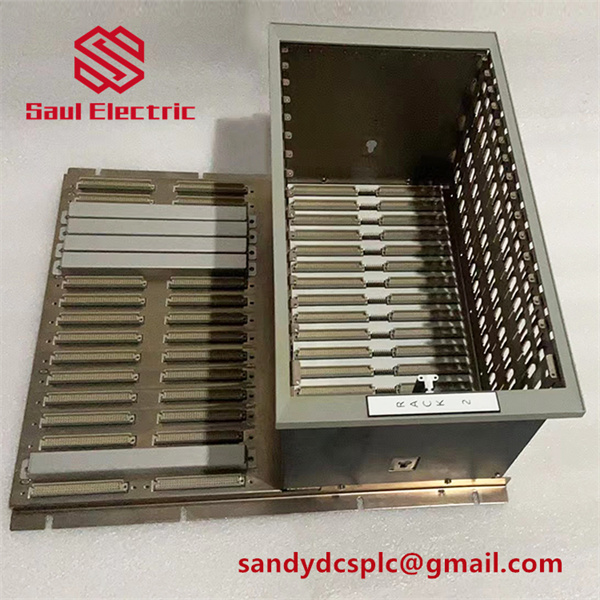

The Bently Nevada 3500/05-01-03-00-00-00-1 is a critical component of the 3500 series machinery condition monitoring system, designed by Bently Nevada (a Baker Hughes company). As a system mainframe or chassis, it serves as the structural and functional backbone for housing all monitoring modules, power supplies, and communication interfaces. This 19-inch EIA standard framework supports up to 14 module slots (or 7 slots in a mini-frame variant), enabling flexible configurations for large-scale rotating equipment protection applications. Its primary role is to provide centralized power distribution, inter-module communication via a backplane, and mechanical integration for monitoring modules such as vibration sensors, keyphasors, and relay interfaces .
The 3500/05-01-03-00-00-00-1 mainframe is engineered for high-reliability environments, featuring robust construction compatible with panel, rack, or wall-mount installations. It ensures seamless data exchange between modules like the 3500/22M transient data interface (TDI) and monitoring cards (e.g., 3500/42M for vibration analysis), while supporting redundant power supplies (e.g., 3500/15) to prevent system downtime. This framework is indispensable for continuous, real-time monitoring of mechanical parameters including radial vibration, axial displacement, speed, and temperature in turbines, compressors, and pumps. By consolidating critical data, the Bently Nevada 3500/05 chassis enhances predictive maintenance capabilities and safeguards machinery against failures caused by misalignment, imbalance, or bearing defects .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 3500/05-01-03-00-00-00-1 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | System Mainframe/Chassis |
| Frame Size | 19-inch EIA standard (full-size) or 12-inch (mini-frame) |
| Available Slots | 14 slots (full-size) or 7 slots (mini-frame) |
| Power Supply Compatibility | Redundant 3500/15 AC/DC power modules |
| Communication Backplane | Integrated backplane for module interoperability |
| Installation Options | Panel-mount, rack-mount, or wall-mount |
| Operating Temperature | -40°C to +85°C (industrial grade) |
| Environmental Rating | NEMA 4/4X enclosure options (with purge air) |
| Key Modules Supported | 3500/22M TDI, 3500/25 Keyphasor, 3500/42M vibration monitors |
Key Features and Advantages
Modular and Scalable Design: The 3500/05-01-03-00-00-00-1 mainframe allows flexible integration of up to 14 monitoring modules, enabling customization for specific machinery needs. Users can mix and match modules like the 3500/40M for proximity monitoring or 3500/61 for temperature tracking without hardware conflicts. This scalability reduces initial costs and simplifies system expansion .
High Availability with Redundant Power: Supporting dual 3500/15 power modules, the chassis ensures uninterrupted operation. If the primary power fails, the backup automatically takes over, critical for 24/7 industries like oil and gas. The hot-swappable design allows maintenance without shutdowns .
Advanced Communication Capabilities: Equipped with a dedicated slot for the 3500/22M Transient Data Interface (TDI), the framework enables real-time data exchange with software platforms like System1®. This integration provides remote diagnostics, waveform analysis, and compliance with IIoT standards for predictive maintenance .
Durability for Harsh Environments: Built to withstand extreme temperatures, humidity, and electromagnetic interference, the chassis is ideal for industrial settings. Optional NEMA 4X enclosures with purge air kits protect against dust and corrosive substances, ensuring longevity in chemical plants or offshore platforms .
Application Areas
The Bently Nevada 3500/05-01-03-00-00-00-1 is deployed in industries reliant on critical rotating machinery. In power generation, it monitors steam and gas turbines for vibration abnormalities, while in oil and gas, it safeguards compressors and pumps in pipelines and refineries. Chemical plants use it to track reactor agitators and centrifugal compressors, preventing leaks or explosions caused by mechanical failures .
For manufacturing, the framework supports paper mills, mining equipment, and metal processing machinery by detecting issues like bearing wear or rotor imbalances. Its compatibility with sensors (e.g., eddy current probes for shaft displacement) makes it suitable for aerospace test rigs and water treatment facilities. By integrating with 3500/92 communication gateways, the chassis enables plant-wide condition monitoring networks, reducing downtime in sectors like renewable energy (wind turbine gearboxes) and marine propulsion .
