Product Overview

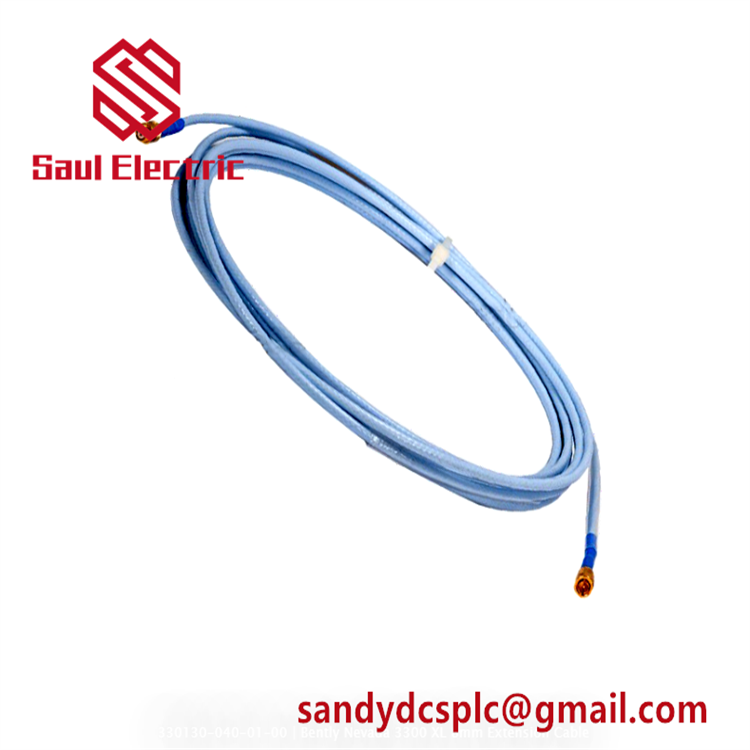

The BENTLY 330130-040-01-00 is a high-performance 3300 XL armored extension cable engineered for reliable signal transmission in harsh industrial environments. As a critical component of the BENTLY 3300 XL series, this 4.0-metre cable ensures seamless connectivity between proximity probes and proximitor sensors, delivering precise vibration and displacement data for rotating machinery health monitoring. Its armored construction and triaxial FEP-insulated design provide exceptional resistance to mechanical stress, electromagnetic interference (EMI), and environmental contaminants, making it ideal for oil and gas, power generation, and chemical processing applications .
Featuring Cable Loc™ technology, the BENTLY 330130-040-01-00 offers a secure 330 N (75 lbf) pull strength connection, eliminating accidental disconnections in high-vibration settings. The optional Fluid Loc™ protection prevents oil, coolant, or moisture ingress, ensuring long-term reliability in wet or corrosive environments. The cable’s 75Ω impedance and low capacitance (69.9 pF/m) minimize signal distortion, maintaining sub-millimeter accuracy even over extended distances. With a wide operating temperature range (-51°C to +177°C), it performs consistently in extreme heat or cold, aligning with API 670 standards for critical machinery monitoring .
The BENTLY 330130-040-01-00 supports full interchangeability with 3300 XL proximity probes and proximitor sensors, simplifying system upgrades and reducing inventory complexity. Its gold-plated IEC 60943 connectors ensure corrosion-resistant signal integrity, while the spring-loaded terminal strips enable tool-free installation. Whether used in offshore platforms, refineries, or manufacturing plants, this cable enhances predictive maintenance strategies by enabling real-time diagnostics and minimizing downtime .
Technical Specifications
Parameter Name
Parameter Value
Product Model
BENTLY 330130-040-01-00
Manufacturer
BENTLY
Product Type
3300 XL Armored Extension Cable
Cable Length
4.0 metres (13.1 feet)
Connector Type
IEC 60943 coaxial with Cable Loc™ locking mechanism
Impedance
75Ω
Capacitance
69.9 pF/m (21.3 pF/ft)
Material
Triaxial FEP-insulated core with stainless steel armored jacket
Weight
0.034 kg
Operating Temperature
-51°C to +177°C (-60°F to +350°F)
Pull Strength
330 N (75 lbf)
Fluid Resistance
Optional Fluid Loc™ protection against liquid ingress
Compliance
API 670 (4th edition), CE marked
Main Features and Advantages
Rugged Armor Protection: The BENTLY 330130-040-01-00’s stainless steel armored jacket safeguards against abrasion, crush damage, and chemical exposure, extending service life in rugged industrial settings. This robust design eliminates the need for additional conduit, reducing installation costs .
Precision Signal Integrity: With low capacitance and impedance matching, the cable ensures distortion-free transmission of vibration and displacement data. This precision is critical for detecting early signs of bearing wear, misalignment, or imbalance in high-value machinery .
Seamless System Integration: Fully compatible with 3300 XL proximity probes and proximitors, this cable allows users to mix and match components without recalibration. Its backward compatibility with non-XL 3300 series systems offers flexibility for phased upgrades .
Tool-Free Installation: The Cable Loc™ connectors and spring-loaded terminals enable quick, secure connections without specialized tools. The M10 × 1 mounting thread ensures easy alignment with probe brackets, streamlining commissioning processes .
Extreme Environment Resilience: Rated for -51°C to +177°C operation and IP66 protection, the cable performs reliably in environments with high humidity, extreme temperatures, or corrosive atmospheres, making it suitable for both indoor and outdoor applications .
Application Areas
The BENTLY 330130-040-01-00 is widely deployed in industries requiring robust machinery health monitoring:
Oil and Gas: Monitors turbine shafts, compressors, and pumps in offshore platforms and refineries, ensuring compliance with API 670 standards for vibration analysis.
Power Generation: Supports steam turbine and generator diagnostics by delivering real-time data on thermal expansion and bearing performance.
Chemical Processing: Withstands corrosive environments in reactors and distillation units, providing reliable data for process optimization.
Manufacturing: Integrates with high-speed rotating equipment in automotive and aerospace production lines to reduce unplanned downtime.
Its armored design and long-range signal stability make it ideal for installations where direct probe-to-sensor routing is challenging, such as multi-level machinery setups or confined spaces. By enabling predictive maintenance, the BENTLY 330130-040-01-00 helps industries achieve operational efficiency and reduce maintenance costs .
